6.8.1 CHARGE ROLLER VOLTAGE CORRECTION

Correction for Environmental Conditions

ID Sensor Pattern
Charge Voltage
Laser Diode
Drum Potential
Development Bias
ID Sensor Output
With a drum charge roller system, the voltage transferred from roller to drum varies
with the temperature and humidity around the drum charge roller. The lower the
temperature or humidity is, the higher the applied voltage required.
To compensate, the machine uses the ID sensor to measure the effects of current
environmental conditions. For this measurement, the process control parameters
are balanced so that any small change in drum potential caused by environmental
effects is reflected in a change in the amount of toner transferred to the drum.

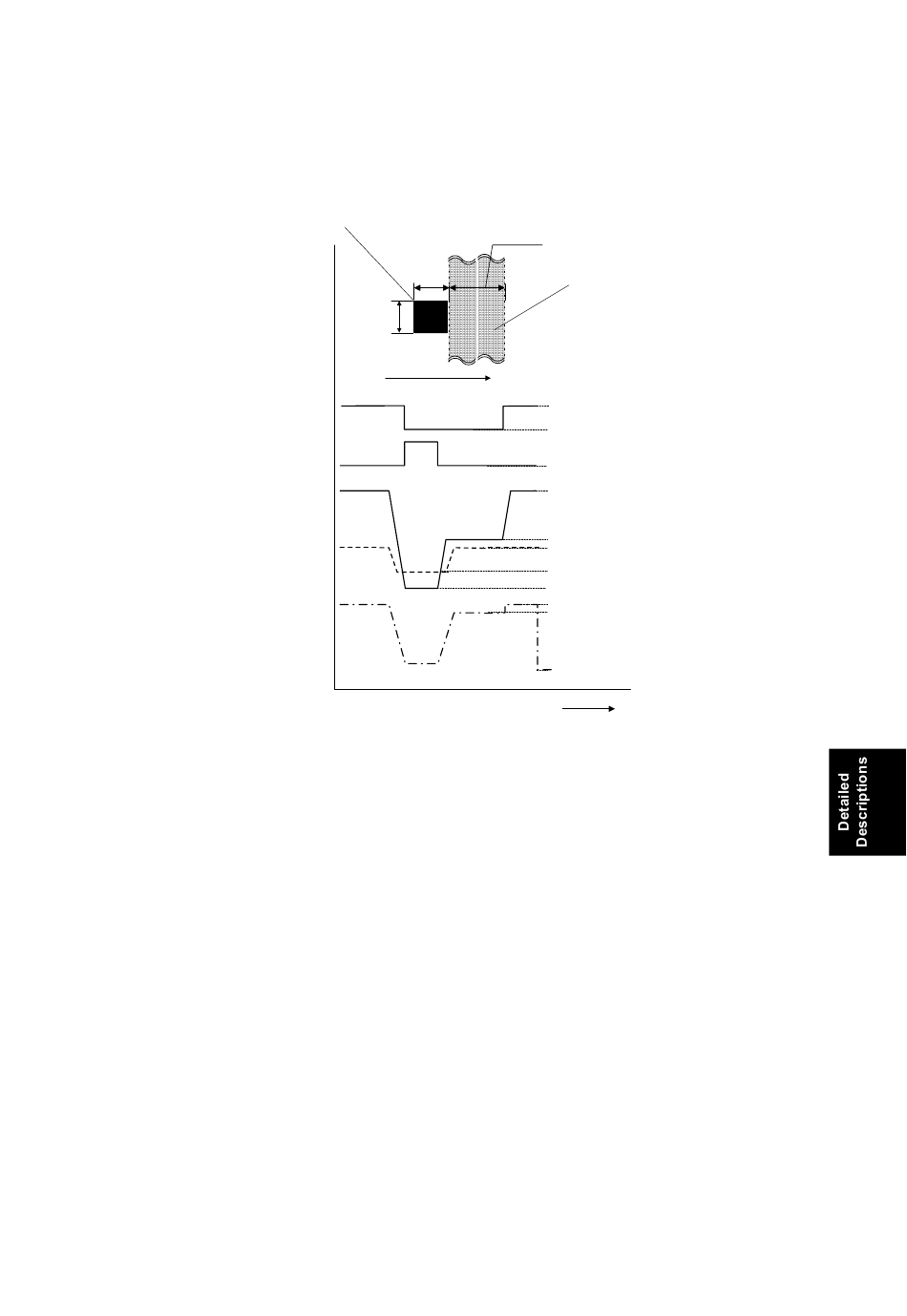

This measurement is made immediately after the ID sensor pattern for toner
density control. Immediately after making ID sensor pattern [A], the charge roller
voltage stays on, but the development bias goes up to -650V; as a result the drum
potential is reduced to -750V. The laser diode is not switched on, and the drum
potential is now slightly higher than the development bias, so only a very small
amount of toner transfers to the drum.
[A]
+
2 cm
2 cm
On
Off
6-41
28.9 cm
[B]
Sub Scan Direction
-1700 V
-1500 V
-950 V
-750 V
-650 V
-400 V
-150 V
V sg (4.00 V)
V sdp (3.70 V)
V sp (0.40 V)
t
B205D922.WMF
DRUM CHARGE
