21 July 2006 IMAGE FUSING AND PAPER EXIT

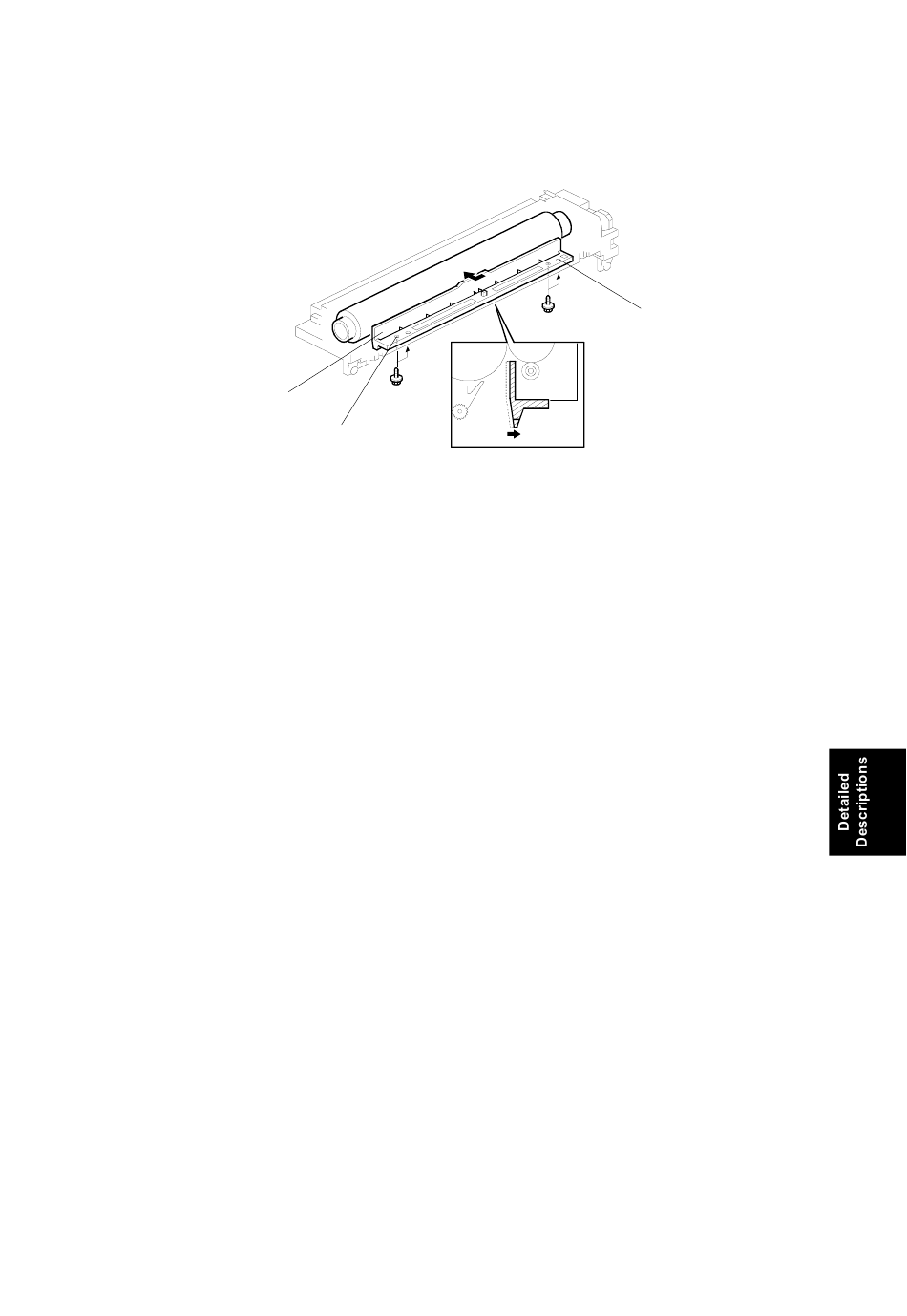

6.13.3 FUSING ENTRANCE GUIDE SHIFT MECHANISM

[C]
[A]
[B]
B205D958.WMF
The entrance guide [A] is adjustable for paper thickness to prevent creasing. The
left screw holes [B] on each side are used as the default setting.
If creasing occurs frequently in the fusing unit, adjust the entrance guide to the right,
by securing it with the other holes [C]. This allows more direct access to the gap
between the hot roller and the pressure roller.
6-79
