3.10.11 DUST COLLECTION BOX

1. Remove:
• PCU ( 3.7.1)
• Right cover ( 3.8.2)

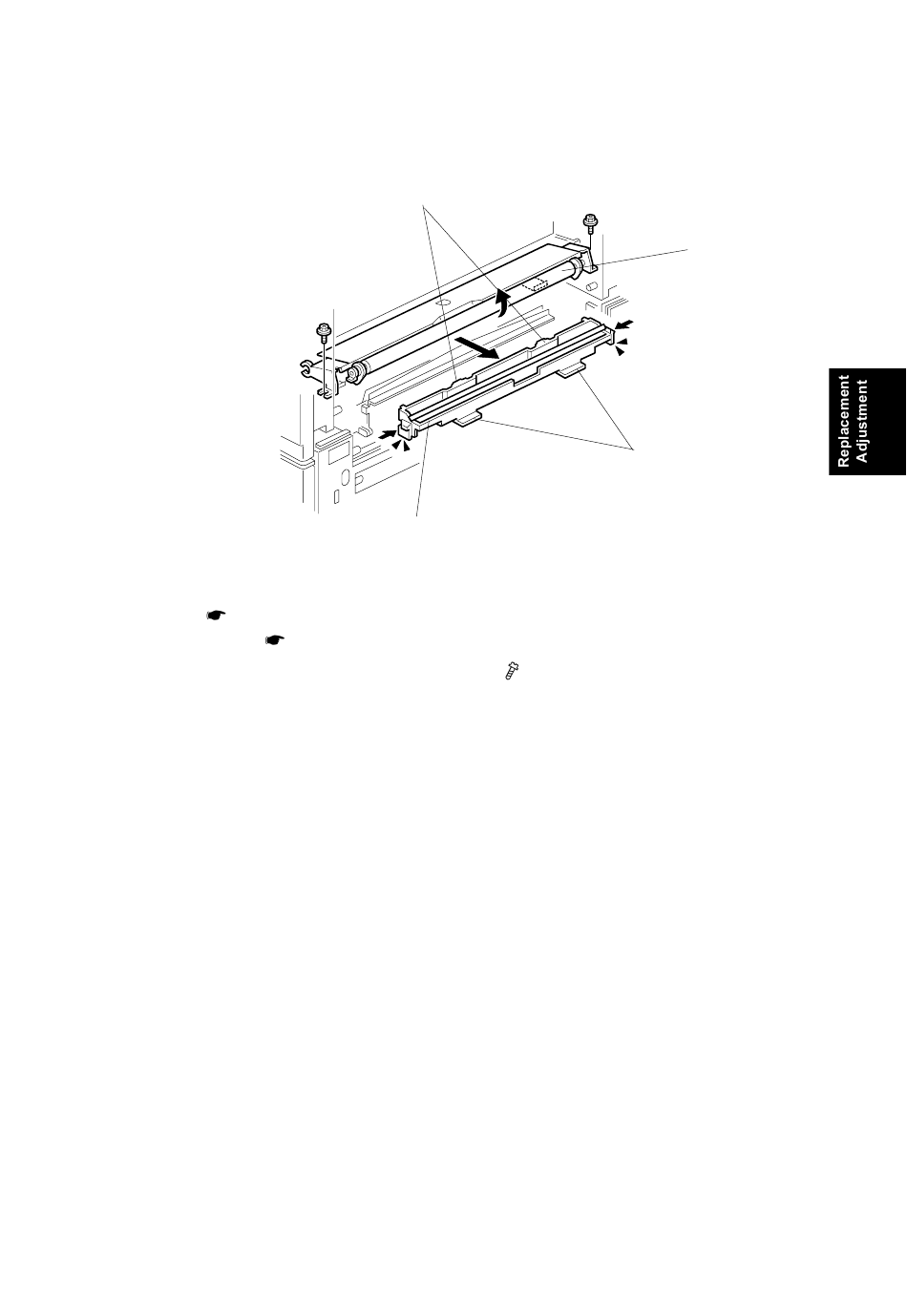

2. Disconnect the sponge roller assembly [A] (
3. While you hold the roller assembly up, push in both ends of the dust collection
bin [B] and remove the bin.
4. Tap the dust collection bin above a sheet of paper, to remove the paper dust.
5. Use a dry cloth to clean the inside of the dust collection bin.
Reinstallation
• Make sure that the two tabs with ridges [C] are towards you when you install the
dust collection bin.
• Insert the "A"-shaped tabs [D] on the rear of the dust collection box into the
square grooves (not shown in the diagram). Turn the unit upwards to lock the
unit in position. You will hear a click after the unit is installed correctly.
• If the dust collection bin is not installed correctly, the dust collection bin will not
lock in its position and the sponge roller assembly will not lower fully.
[D]
[B]
B205R158.WMFF
x2) and lift it.
3-47
PAPER FEED
[A]
[C]
