1.10 DUPLEX UNIT INSTALLATION

1.10.1 ACCESSORY CHECK

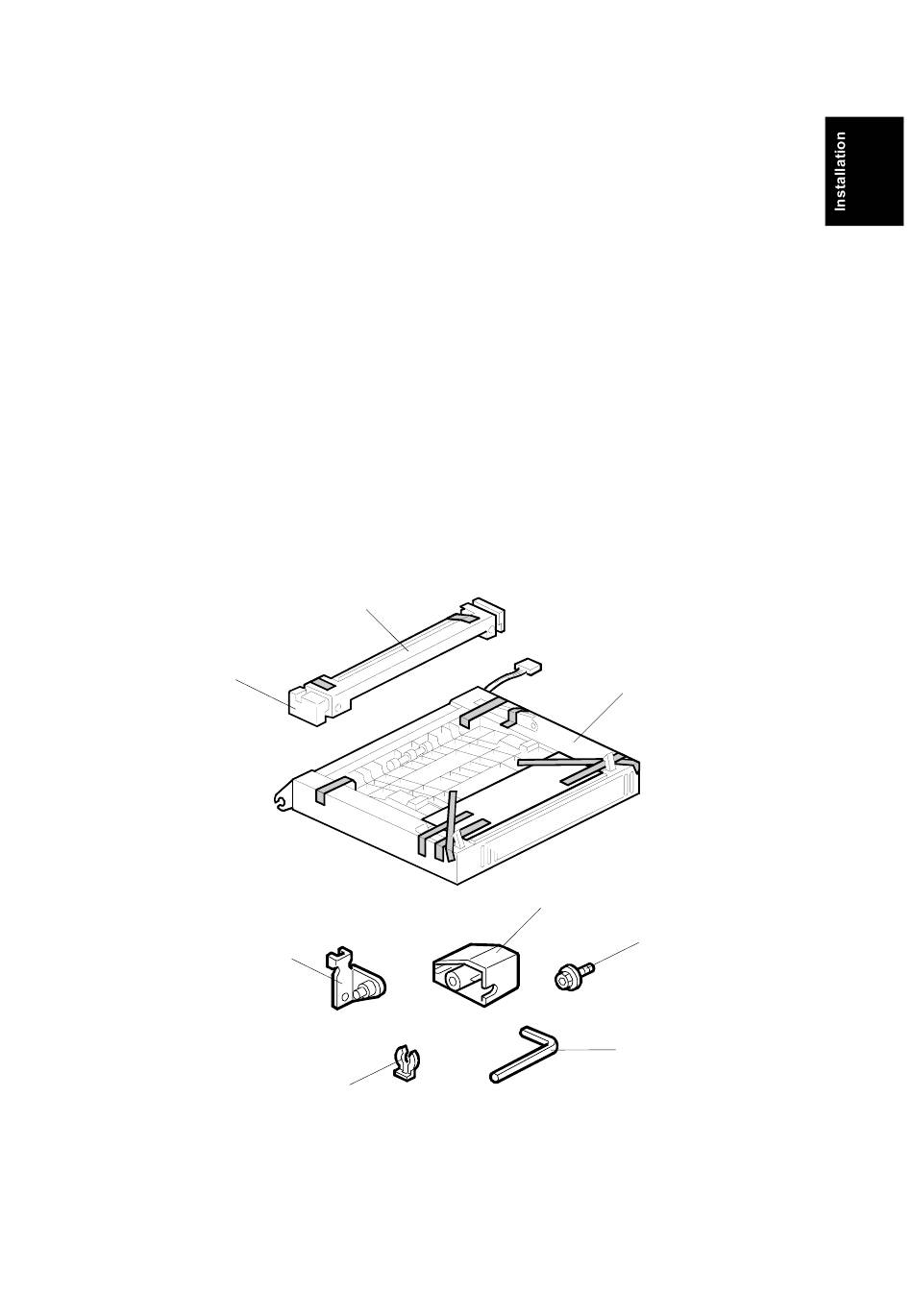

Check the quantity and condition of the accessories against the following list.
Description
1. Duplex Unit ..........................................................................1
2. Connector Cover..................................................................1
3. Bracket ................................................................................1
4. Clip ......................................................................................1
5. Unit Holder...........................................................................1
6. Unit Holder Cover ................................................................1
7. Allen Key .............................................................................1
8. Tapping Screw - M3 x 8 ......................................................4
5
6
3
4
1-41
INSTALLATION REQUIREMENTS
Q'ty
1
2
B414I101.WMF
8
7
B414I102.WMF
