Installation Procedure - Ricoh R-C4 Service Manual

21 July 2006 INSTALLATION REQUIREMENTS

1.11.2 INSTALLATION PROCEDURE

[A]
[C]
[B]
B417I501.WMF
B417I500.WMF
CAUTION
Unplug the copier power cord before starting the following procedure.
1. Remove all tapes.

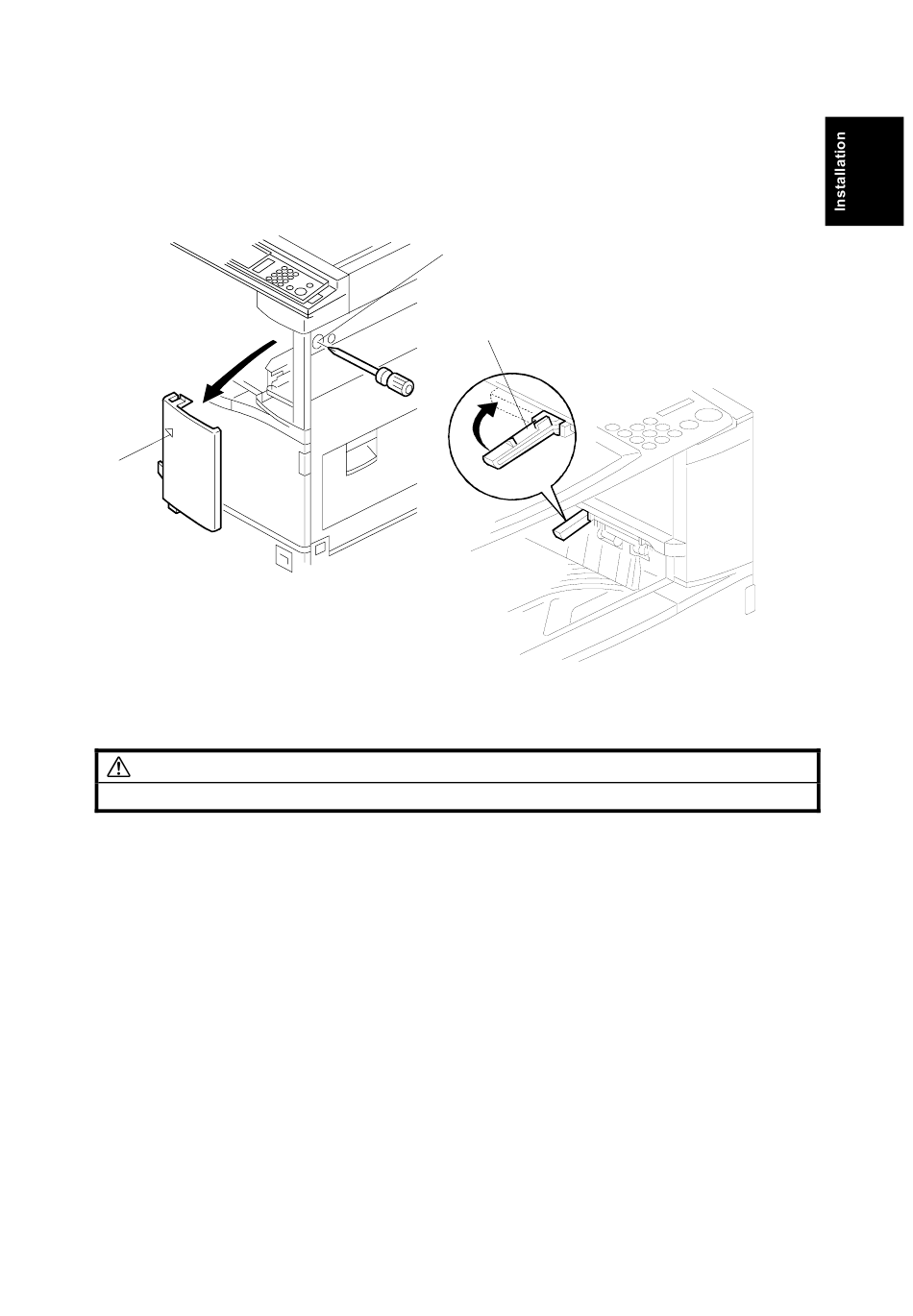

2. Loosen the screw [A] and remove the front right cover [B].
3. If the sensor feeler [C] is out, fold it away into the machine.
1-45
