3.9.3 THERMOSTATS

[A]
B205R934.WMF
[C]
[B]
[B]
B205R935.WMF

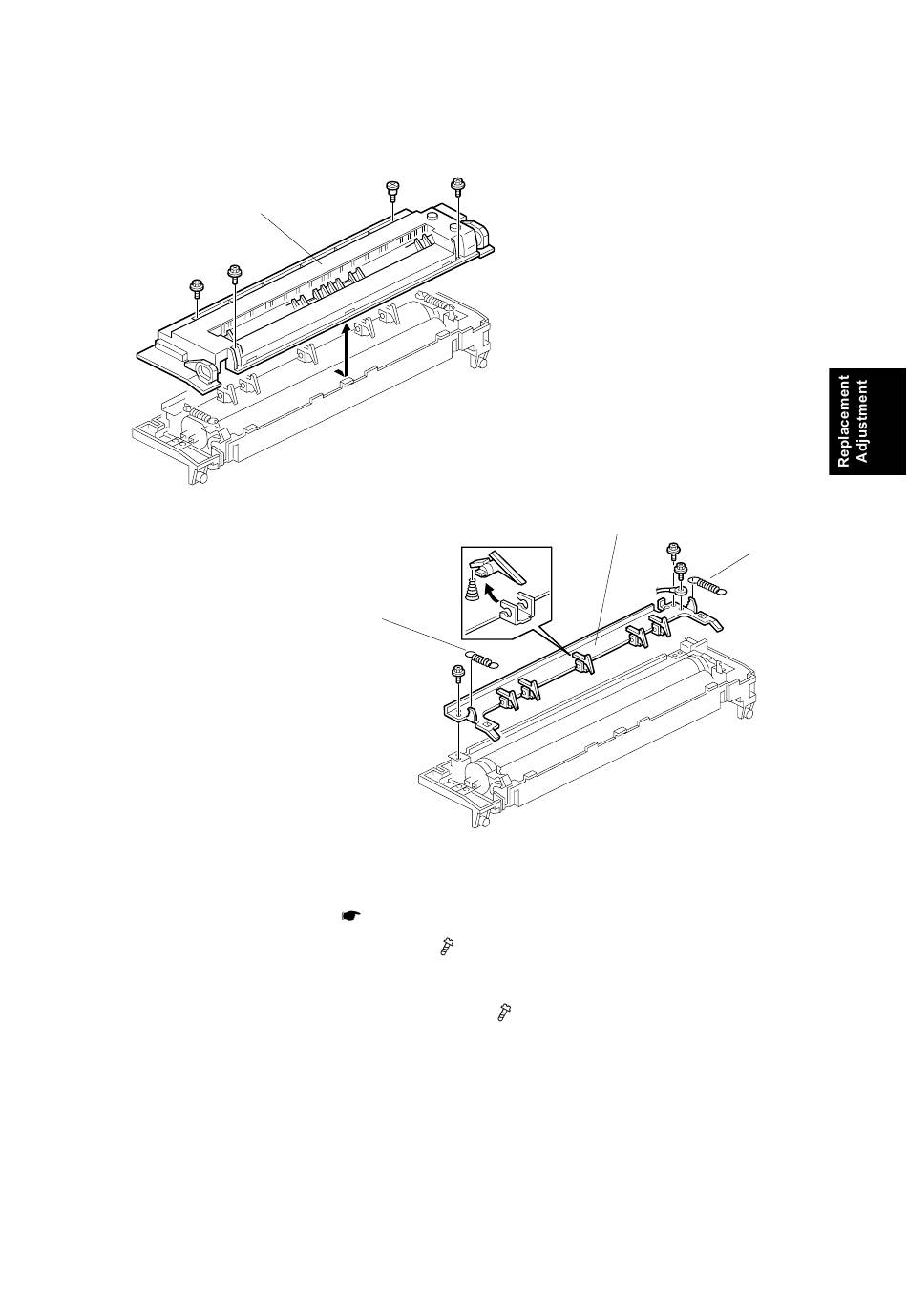

1. Remove the fusing unit. ( 3.9.1)
2. Remove the fusing upper cover [A] ( x4).
3. Remove the pressure springs [B].
4. Remove the hot roller stripper bracket [C] ( x3).
