6.13 IMAGE FUSING AND PAPER EXIT

6.13.1 OVERVIEW

11
10
9

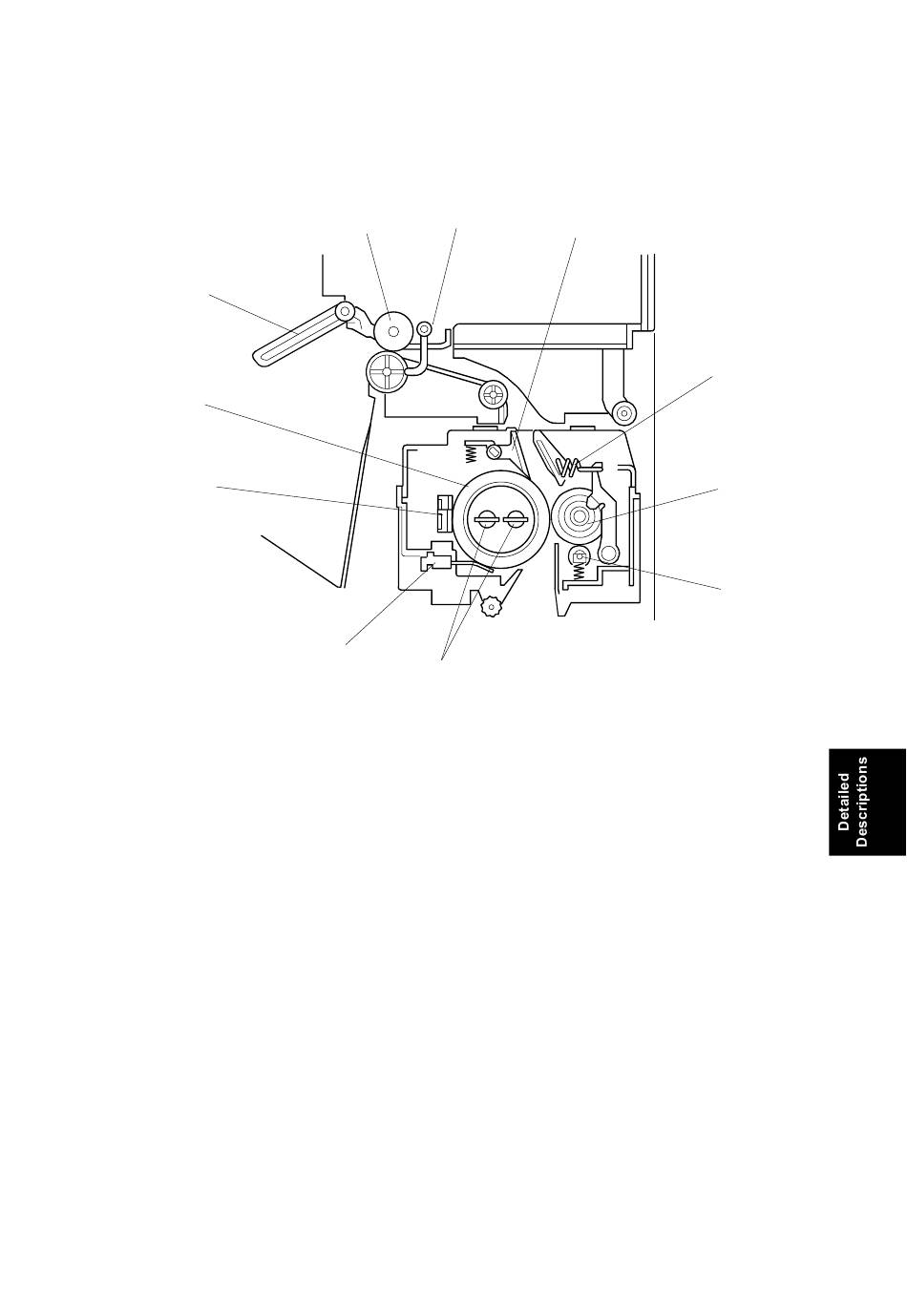

The fusing unit and paper exit area consist of the following parts.
1. Paper exit roller
2. Fusing exit sensor
3. Hot roller strippers
4. Pressure spring
5. Pressure roller
6. Cleaning roller
2
1
8
7
7. Two fusing lamps
8. Two thermistors
9. Four thermostats
10. Hot roller
11. Paper overflow sensor
6-77
IMAGE FUSING AND PAPER EXIT
3
B205D955.WMF
4
5
6
