Ricoh R-C4 Service Manual page 123

FUSING/EXIT 21 July 2006
[B]
[A]
[C]
[D]
B205R936.WMF
[D]
[C]
B205R937.WMF

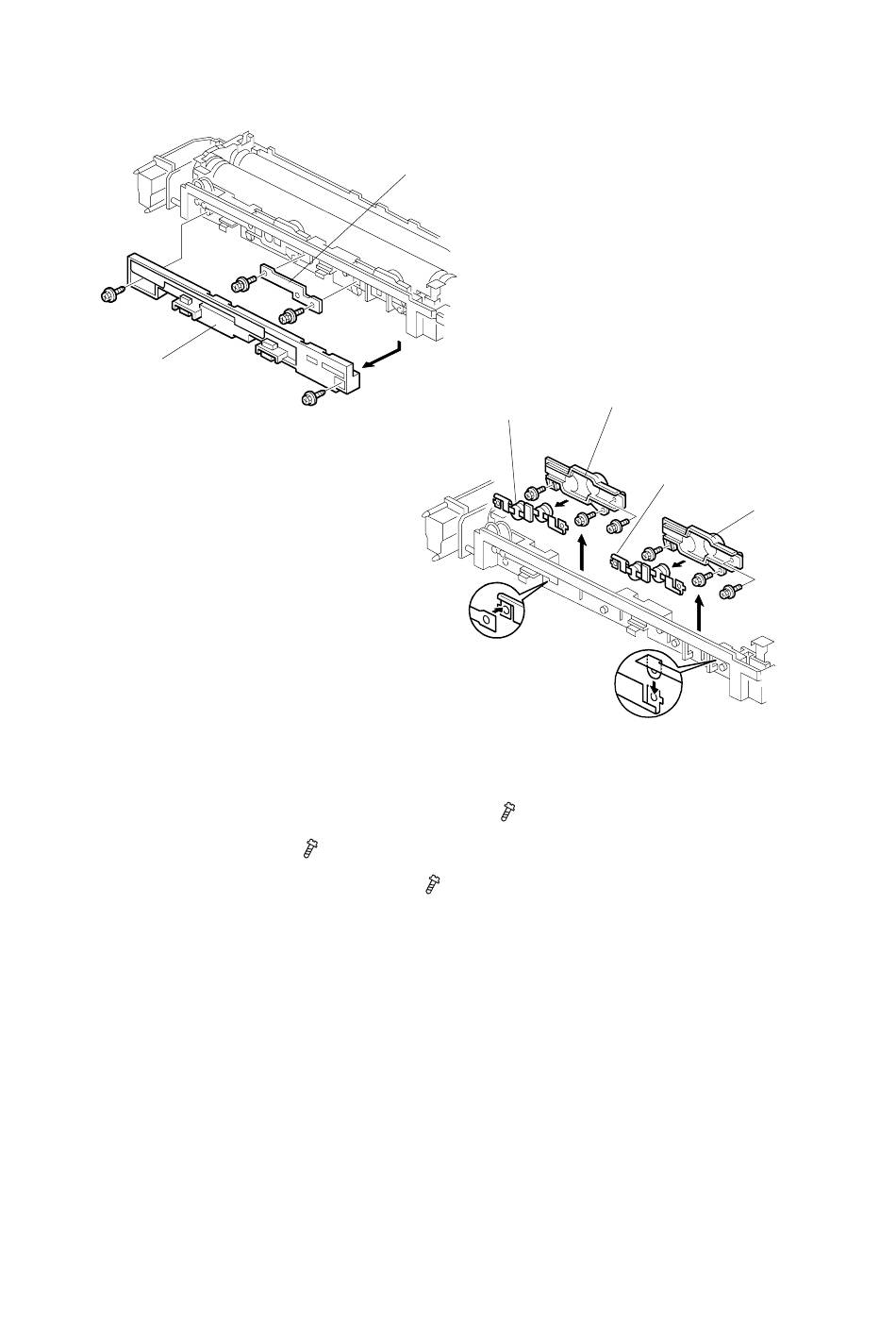

5. Remove the thermostat cover [A] (Tapping x2).
6. Remove the plate [B] ( x2, Spring washers).
7. Remove the thermostat holder [C] ( x3 ea.).
8. Replace the thermostats [D].
