21 July 2006 TRANSFER UNIT

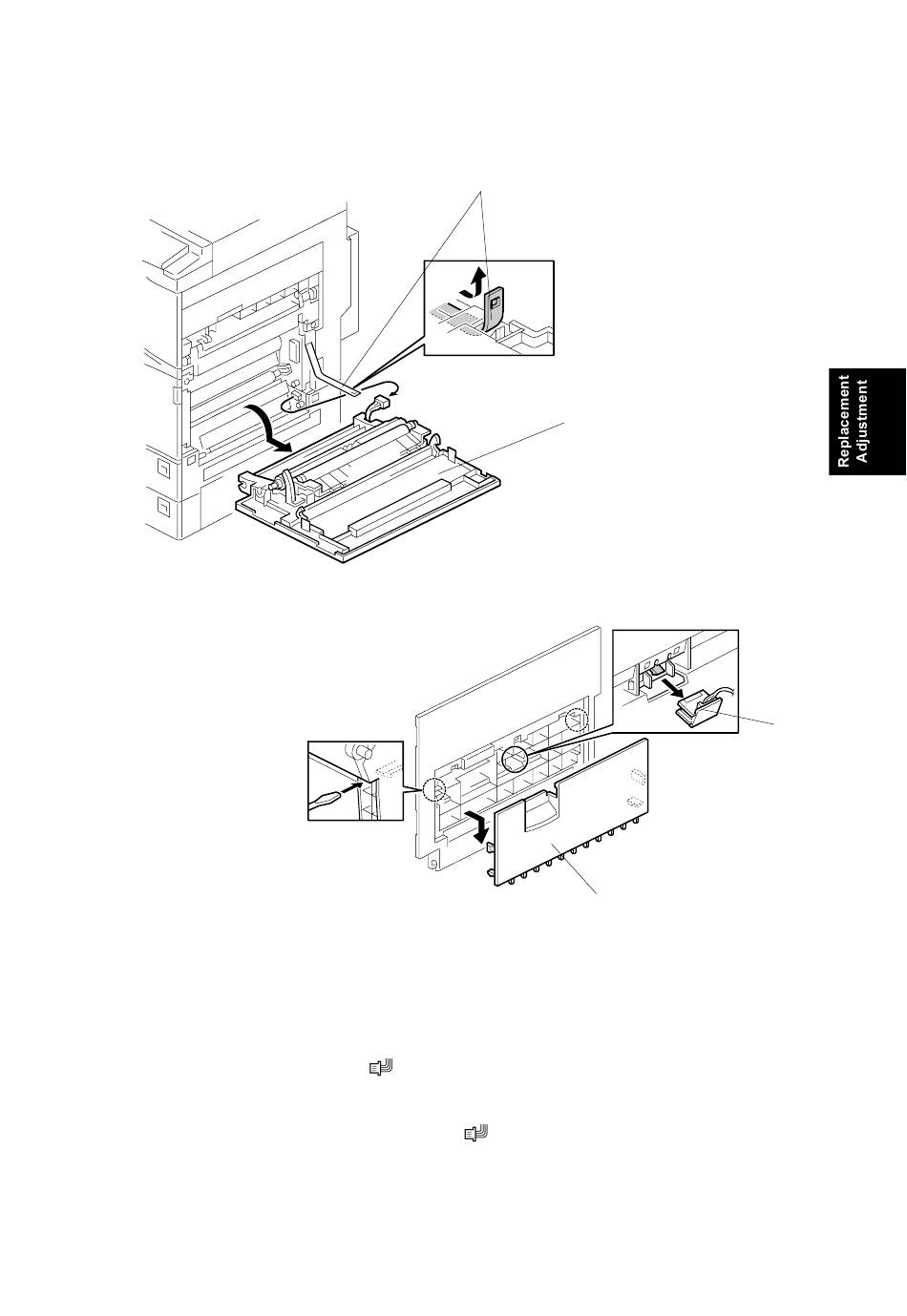

3.8.2 IMAGE DENSITY SENSOR

[B]
[A]
B205R930.WMF
[D]
[C]
B205R931.WMF
1. Open the right cover [A].
2. Remove the unit band [B].
3. Remove the right cover [A] ( x1),
4. Remove the sub right cover [C] (2 hooks).
5. Replace the image density sensor [D] ( x1).
6. Initialize the new sensor with SP 2935.
3-29
