21 July 2006 PAPER FEED

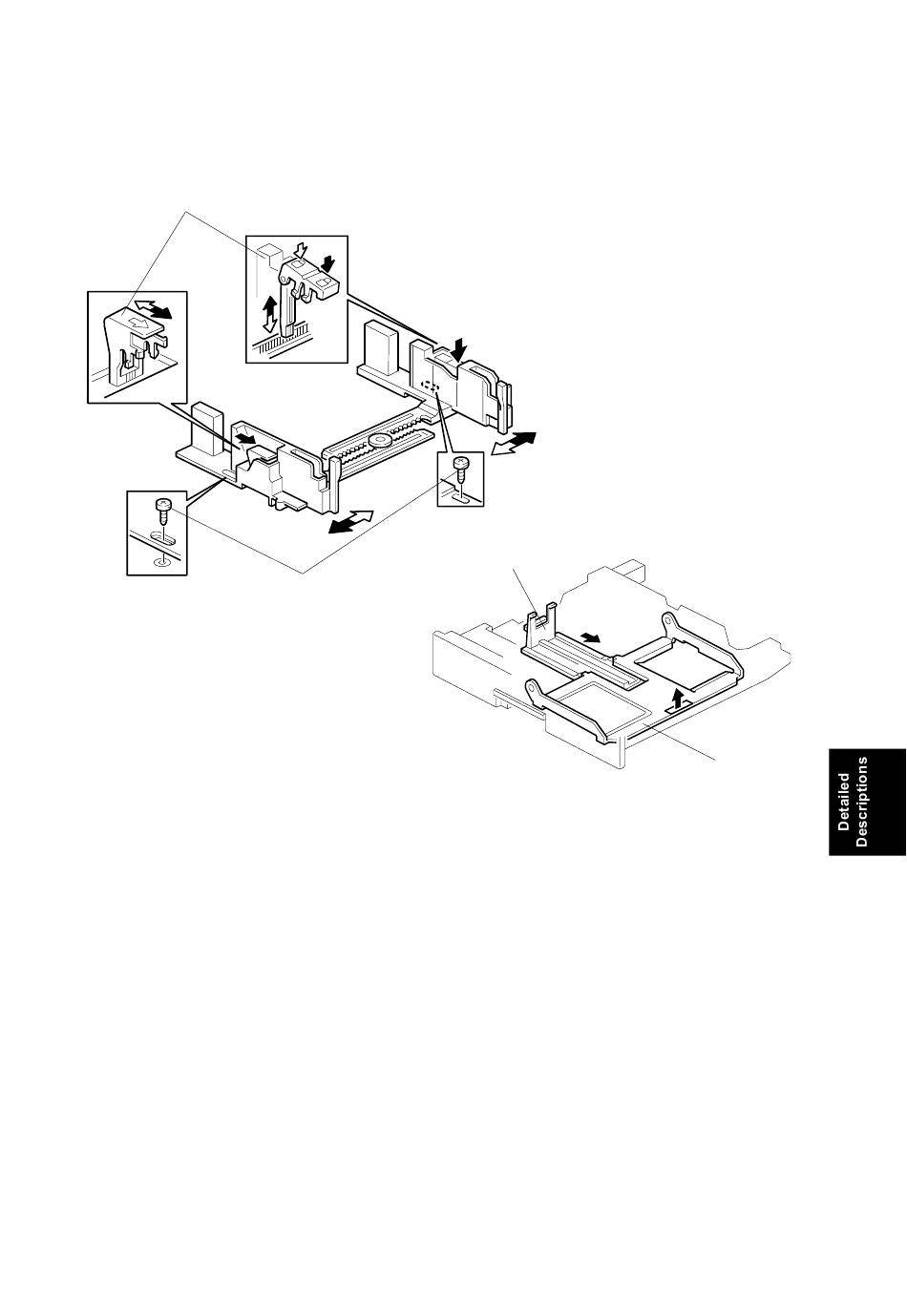

6.11.10 SIDE AND END FENCES

[A]
[D]
[B]
B205D946.WMF
[C]
B205D947.WMF

Side Fences

If the tray is full of paper and it is pushed in strongly, the fences may deform or
bend. This may cause the paper to skew or the side-to-side registration to be
incorrect. To correct this, each side fence has a stopper [A] attached to it. Each
side fence can be secured with a screw [B], for customers who do not want to
change the paper size.

End Fence

As the amount of paper in the tray decreases, the bottom plate [C] lifts up gradually.
The end fence [D] is connected to the bottom plate. When the tray bottom plate
rises, the end fence moves forward and pushes the back of the paper stack to keep
it squared up.
6-71
