transmitting indicators, and four are users LED lights (LED1~LED4). When the
board is powered on, the power indicator will light up; User LED1~LED4 are
connected to the normal IO of the FPGA. When the IO voltage connected to the
user LED is configured low level, the user LED lights up. When the connected
IO voltage is configured as high level, the user LED will be extinguished. The

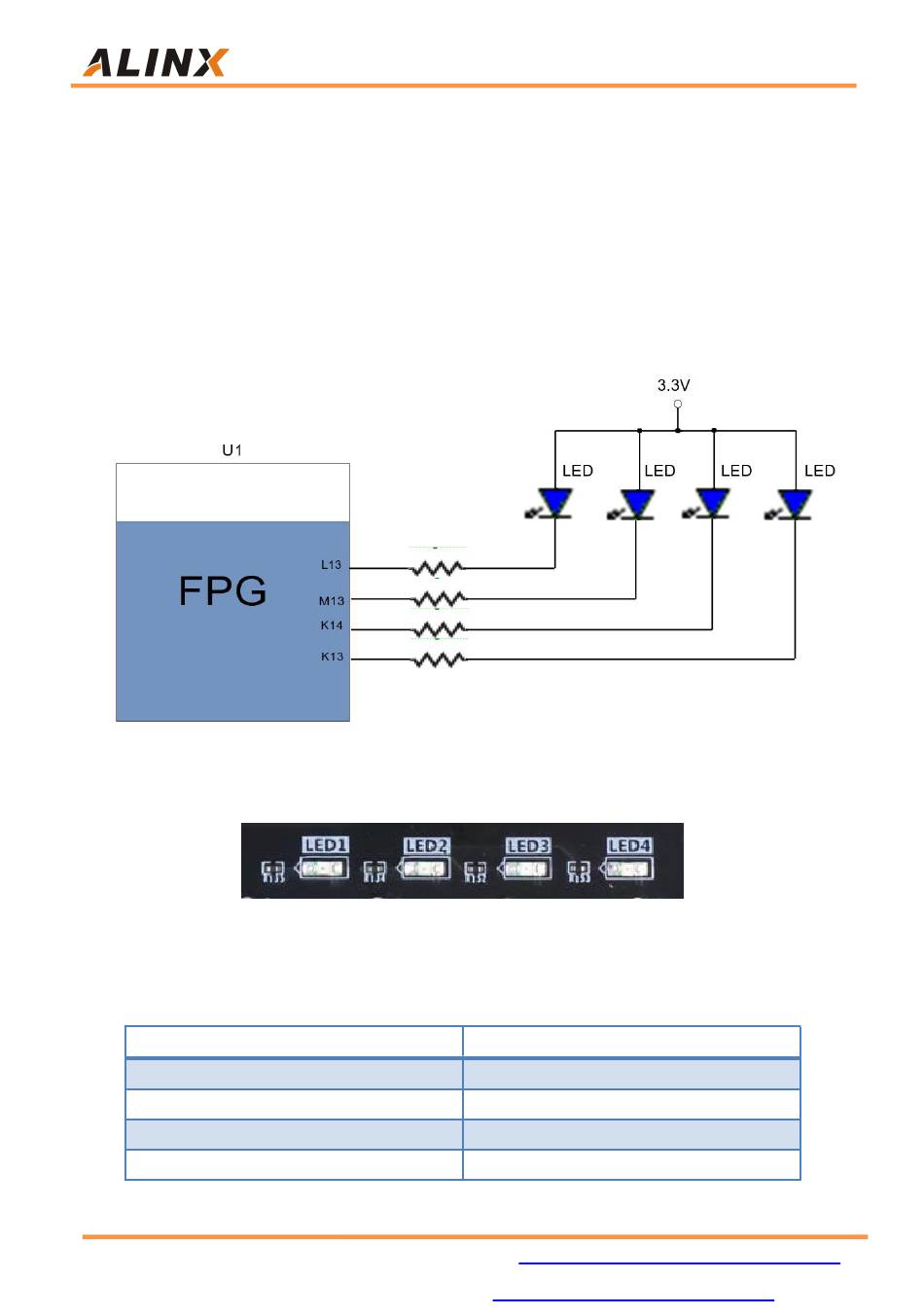

schematic diagram of the user LEDs hardware connection is shown in Figure
3-14-1.
Figure 3-14-2: The User LEDs on the Carrier Board
Pin assignment of user LED lights
Signal Name
56 / 59
Figure 3-14-1: The User LEDs Schematic
LED1
LED2
LED3
LED4
Amazon Store:
Sales Email:
FPGA PIN
L13
M13
K14
K13
