ARTIX-7 FPGA Development Board AX7A200 User Manual
USB-to-UART pin assignment:
Signal Name
UART1_RXD
UART1_TXD

Part 3.9: EEPROM 24LC04

AX7A200 carrier board contains an EEPROM, model 24LC04, and has a
capacity of 4Kbit (2*256*8bit). It consists of two 256-byte blocks and
communicates via the IIC bus. The onboard EEPROM is to learn how to
communicate with the IIC bus. The I2C signal of the EEPROM is connected to
the BANK15 IO port on the FPGA side. Figure 3-9-1 below shows the design of
the EEPROM
EEPROM Pin Assignment
48 / 59

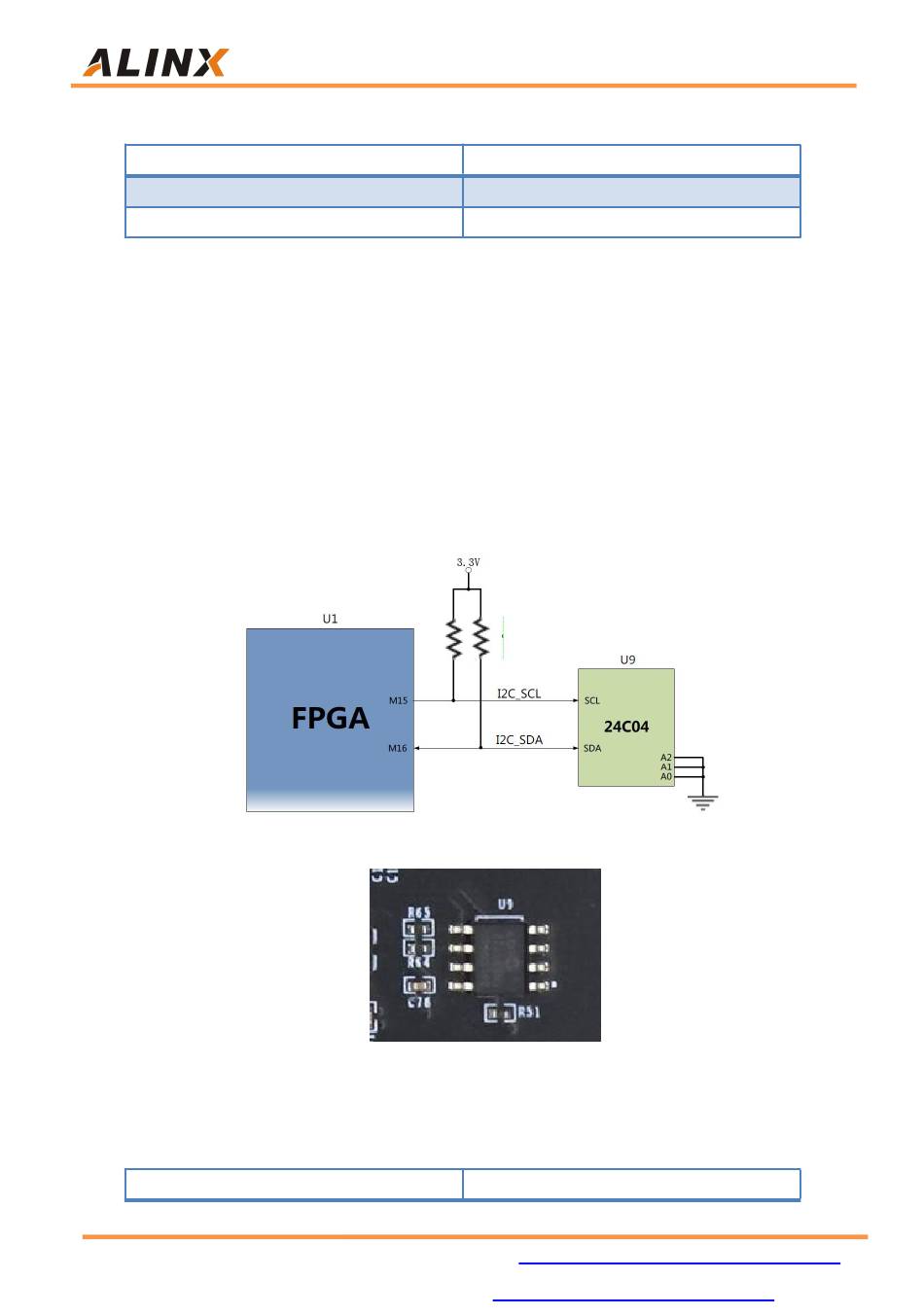

Figure 3-8-1: EEPROM Schematic
Figure 3-9-2: EEPROM on the Carrier Board
Net Name
Amazon Store:
Sales Email:
FPGA PIN
L14
L15
FPGA PIN
