ARTIX-7 FPGA Development Board AX7A200 User Manual
Figure 3-13-2: Buttons on the Carrier Board
Buttons Pin Assignment
Part 3.14: LED Light
There are seven red LEDs on the AX7A200 FPGA carrier board, one of
which is the power indicator (PWR), two are USB Uart data receiving and
55 / 59

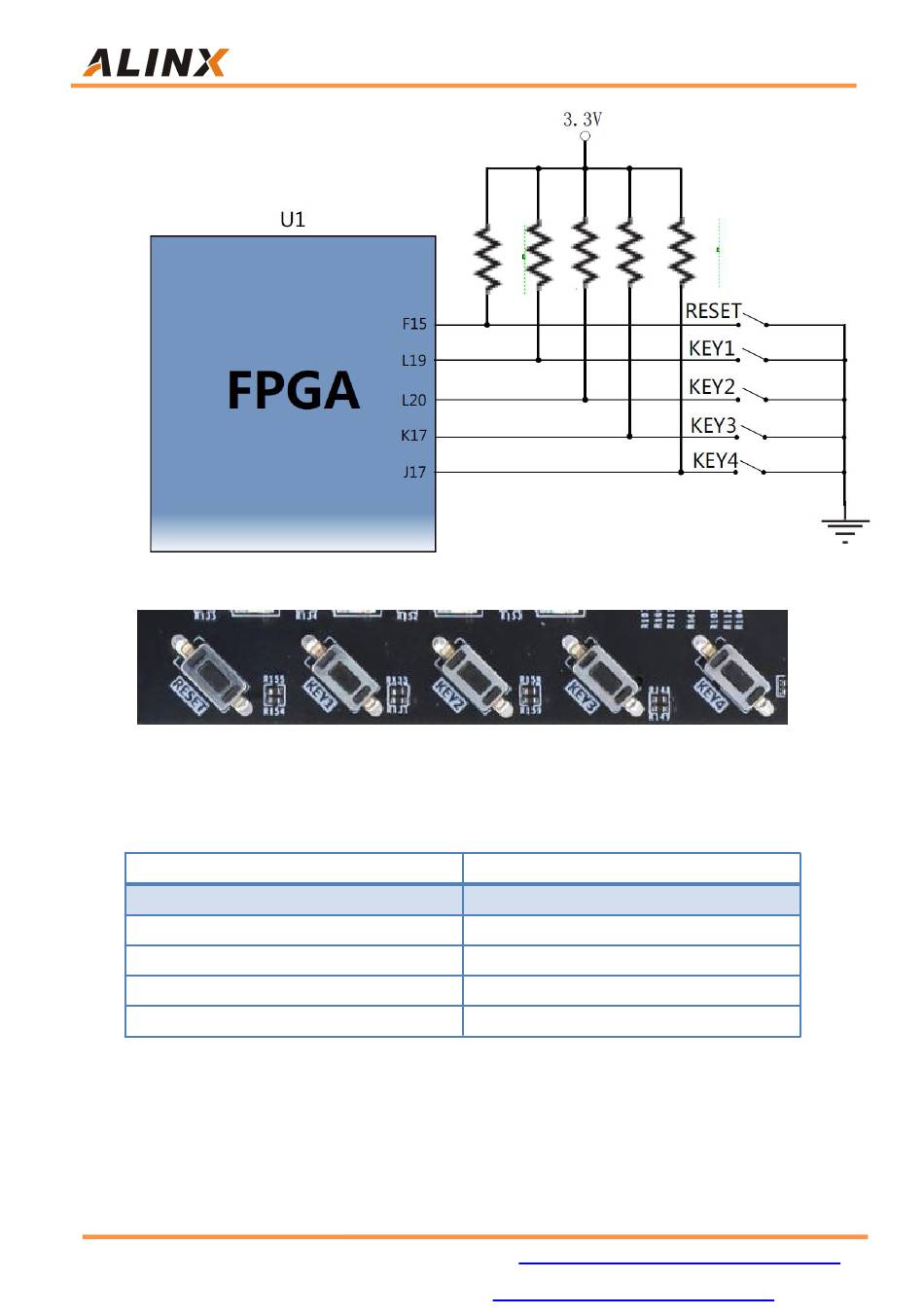

Figure 3-13-1: Button Schematic
Net Name
RESET
KEY1
KEY2
KEY3
KEY4
