Mycom CLM 152
10.4

Device master file / Type file

Device master files are required to use the
®
PROFIBUS . They must be created as
Siemens TYP files. The data must be loaded
into the communication partner (Siemens
operating system COMET 200 or COM
®
PROFIBUS ) before the bus system is started
up. The data is stored as follows:
• all *.200 files in type file directory
e.g. ***\TYPDAT5X
• all *.GSD files in instrument master file
directory e.g. ***\GSD
• all *.BMP files in bitmap directory
e.g. ***\BITMAPS
10.5

Remote control with Commuwin II

PROFIBUS-PA devices can be operated via
the Commuwin II operating system (Version 1.5
or higher). A description of how to operate
Commuwin II is contained in the Operating
Note:
When communication is active, a
double-arrow (<=>) appears in the
top line of the device display.
Endress+Hauser
The meanings of the individual device
parameters are contained in the
PROFIBUS-PA specification.
The device master files are provided on the
disk:
• Disk containing PROFIBUS-PA device files
(Order No. 943157-0000)
(or: www.endress.com > Products /
Download Street / Field Communication St.)
Instructions BA 124F. The settings are made
with via the operating matrix (Fig. 10.3) or the
graphical user interface (Fig. 10.4).
®
PROFIBUS interface
lm152e10.chp

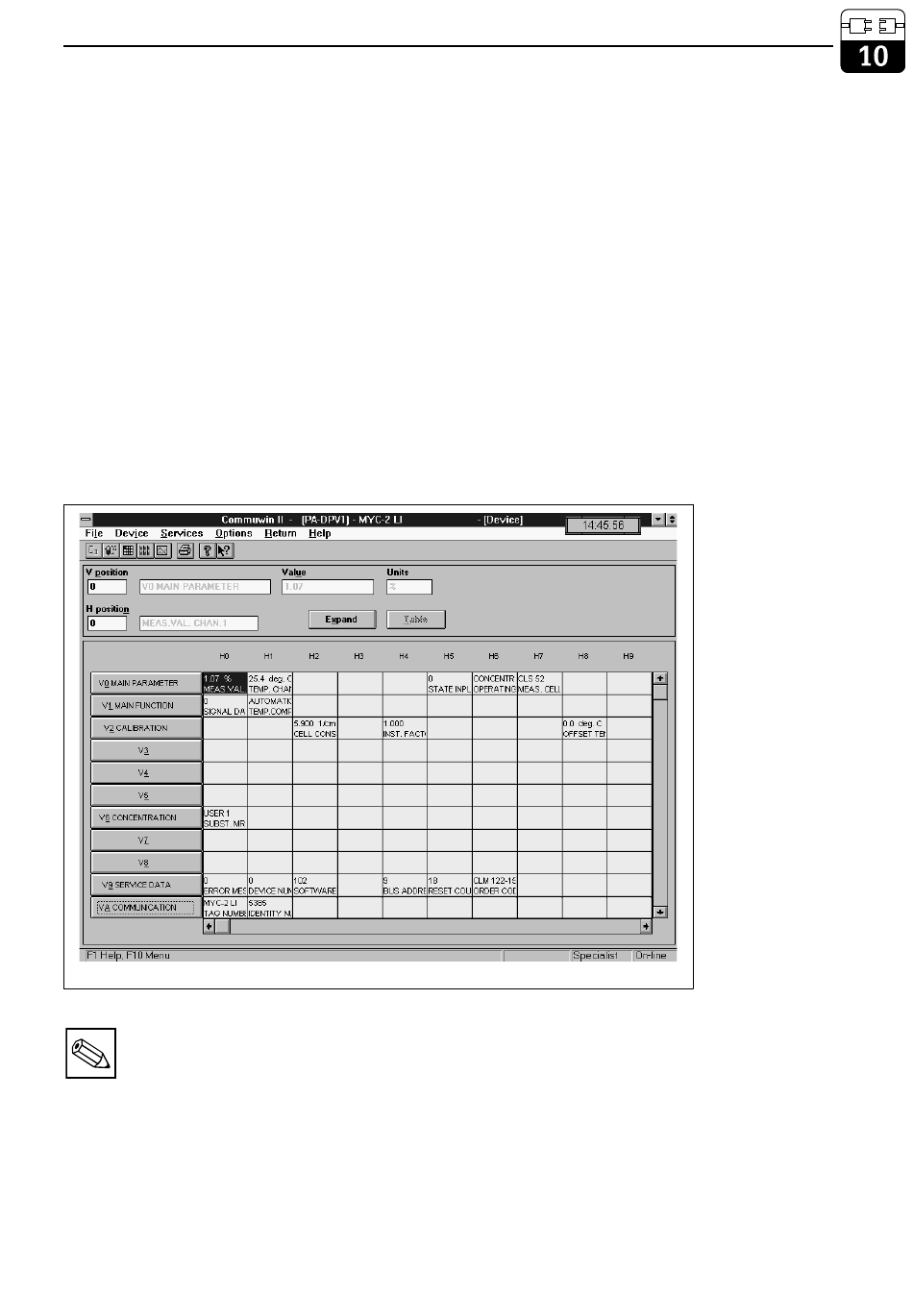

Instrument data menu
under Commuwin II
Fig. 10.3 (conductive)
SC-IDE.CDR
65
