Instrument description
3.7.3 VBM junction box for inductive sensors
The VBM junction box must be installed to
extend the connecting cable of the
CLS 52/CLS 50 sensor beyond the standard
cable length by means of a special cable to
the measuring transmitter.
The VBM junction box is supplied with
2 Pg 13.5 glands for cable entry and
10 high-impedance insulated screw terminals
for connecting single wires.
Material: painted aluminium
Degree of protection: IP 65
Order No.: 5000398
Ex Zone 1 Order No.: 50003991
3.7.4 VS junction box for conductive sensors
Junction box with cable union and receptacle
including SXP 7-pin plug for connection
between sensor and connecting cable to
measuring transmitter; Material: plastic;
degree of protection: IP 65;
Order No.: 50001054
3.7.5 CLK 5 sensor cable
Special cable for extending sensor cable for
inductive sensors up to total length of
max. 55 m;
Order No.: 50085473
3.7.6 CYK 71 sensor cable
Special cable for extending sensor cable for
conductive sensors.
Endress+Hauser
approx. 136
52
80
80
Height 55
Non-Ex Order No.:
Ex Zone Order No.:
Mycom CLM 152
Fig. 3.5
VBM.CDR
Fig. 3.6
VS-NEU.CDR
50085333
50085673
lm152e03.chp

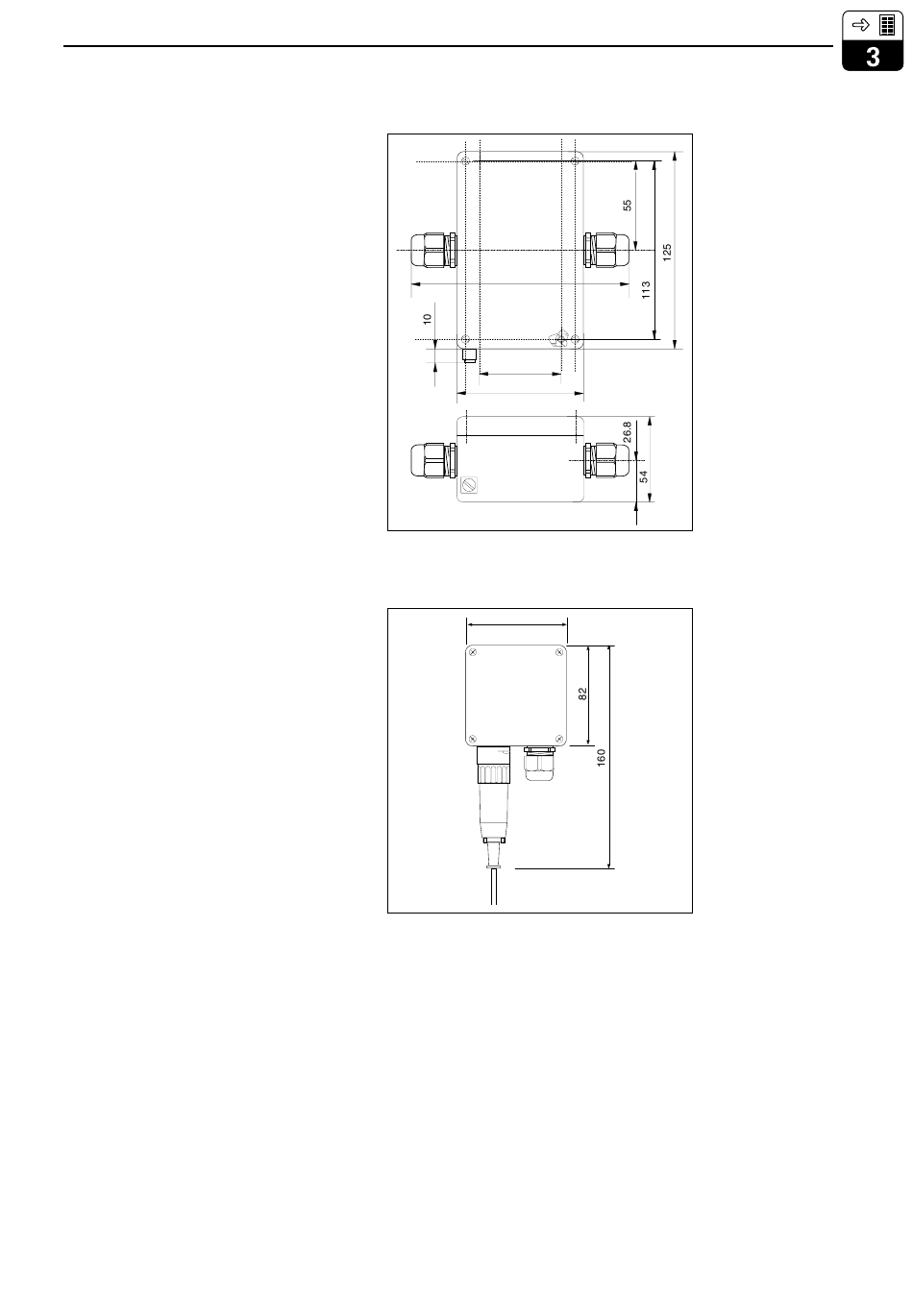

Dimensions of
VBM junction box
Dimensions of
VS junction box
