Endress+Hauser Mycom CLM 152 Operating Instructions Manual page 19

Conductivity measuring transmitter
Hide thumbs Also See for Mycom CLM 152:
Table of Contents

Advertisement

Mycom CLM 152
Measuring current
lm152_ex.cdr
Wiring compartment and wiring diagram
Analog
FCL1
out
Endress+Hauser
Ex zone 1
MEAS
CAL
DIAG
PARAM
circuit ia
+
+
88 87 85 86
2x Optocoupler
max. 30 Vdc / 100mA / 750mW
non-hazardous area
MEAS
CAL
DIAG
PARAM
Signal output
circuit ia
Supply
circuit
Sicherung / fuse:
50076930
100V..230V
50076931 24Vac
50087807 24Vdc
F
F
L
N
L+
L-
Power-
supply
PE
lm152arx.cdr
Installation
lm152e04.chp

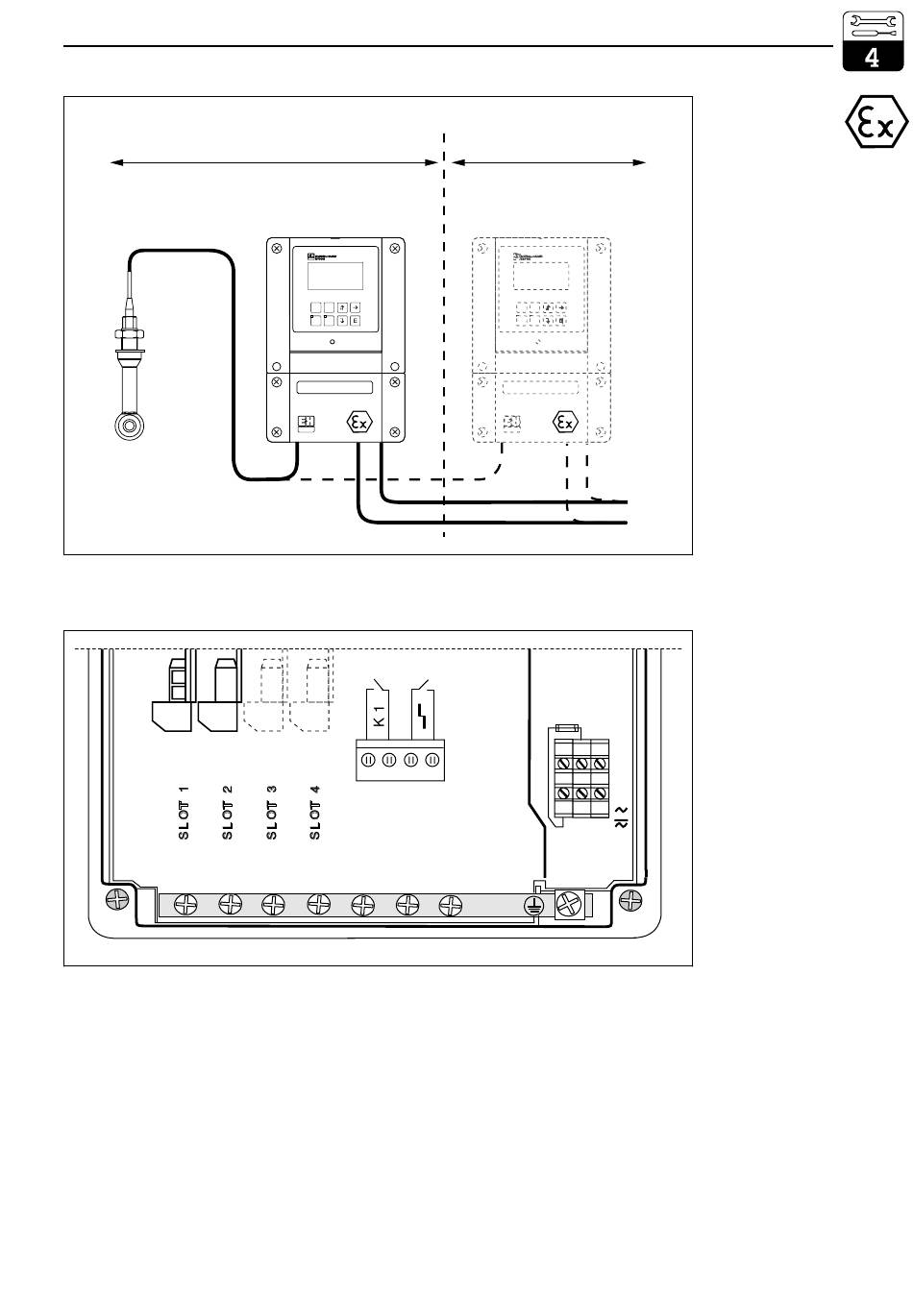

Inductive sensor and
measuring transmitter in
Fig. 4.13
Ex zone
Wiring compartment of
Fig. 4.14
Mycom CLM 152-Z (Ex)
17
