Mycom CLM 152
Note:
You can also change to another
main group when you are in a
sub-group.
But then any setting you failed to
confirm by pressing E is not saved.
MEAS CAL
PARAM DIAG
Select option:
Start main group
by pressing
appropriate key
Main group
Subgroup
Subgroup
Subgroup
Set numeric value
Select subgroup
and press E
Hold function
In order to avoid unintentional changes to the
current outputs during configuration or
calibration, the present current value at the
current output can be "frozen" or a fixed
current can be specified by using the "Hold"
function.
Limit contactor output contacts are set to
passive by the "Hold" function
(NO contact open, NC contact closed).
The top display indicates "Hold" on the right
instead of the current output value; on the left
Endress+Hauser
Parameter 1
Option
Select
Option
option
Option
increment
Parameter 1
123.45
decrement
Select digit
PARAM
is the current measured value of the main
parameter as usual.
Also refer to:
• Chapter 6.7, Short Operation menu:
Hold on / off
• Chapter 7.2, Current Output menu, Hold
type:
Fixed current value / previous measured
value
• Chapter 7.4, Calibration Preset menu,
Hold at Cal.: yes / no
If no input is made in a sub-group
for longer than about 10 minutes, the
instrument automatically returns to
measuring mode (exceptions:
Calibration, Simulation and Start-up).
Last parameter
of subgroup
Parameter 4
Parameter 3
Parameter 2
PARAM
PARAM
PARAM
Operation
lm152e06.chp
PARAM

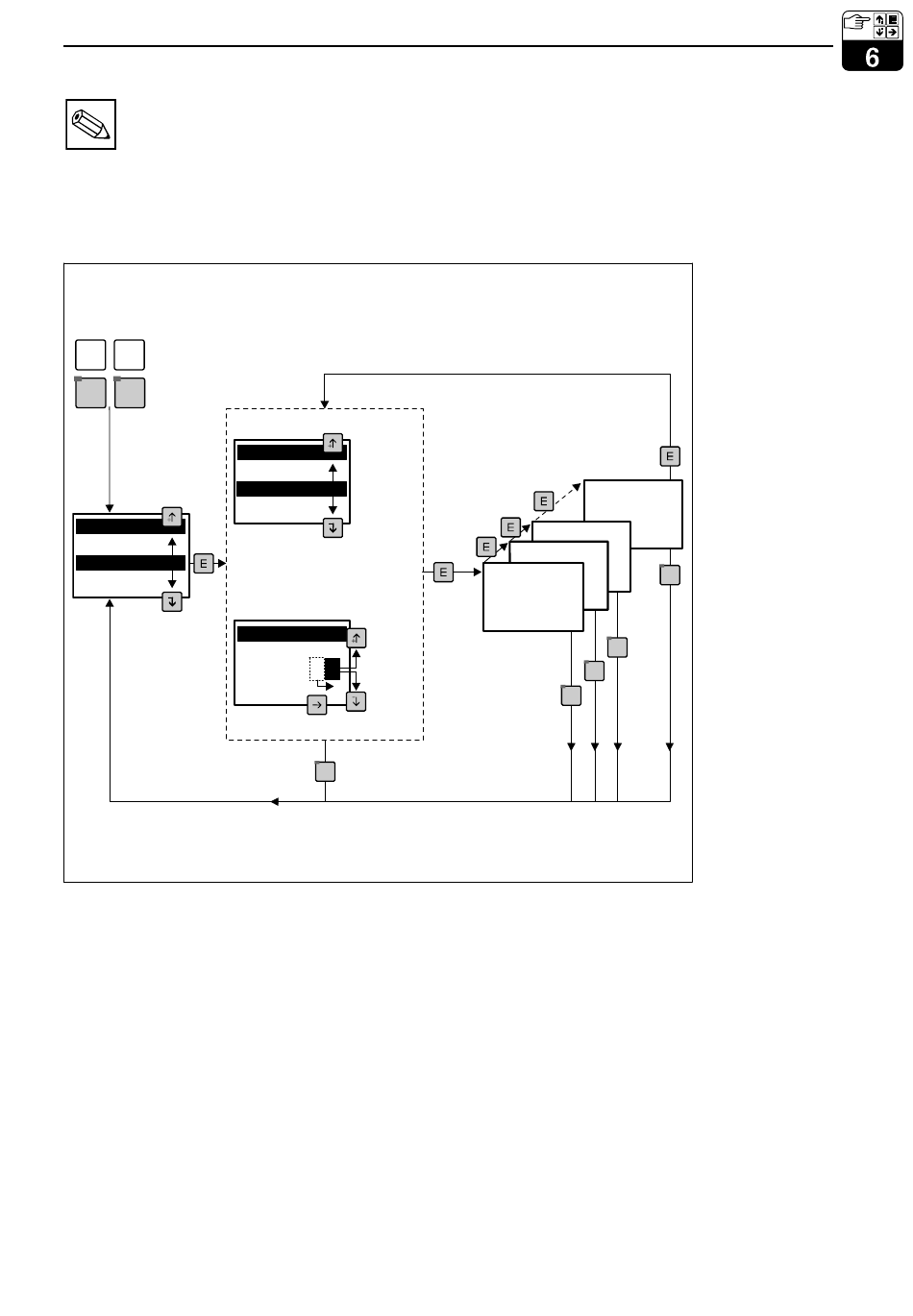

Block diagram of
Fig. 6.3 Mycom-Operating concept
