Unpacking and Storage

3
3.1

Scope of Delivery

Check the scope of delivery for completeness according to the packing list. The following
items should be included.
Item
A
B
C
D
E
F
G
H
I
J

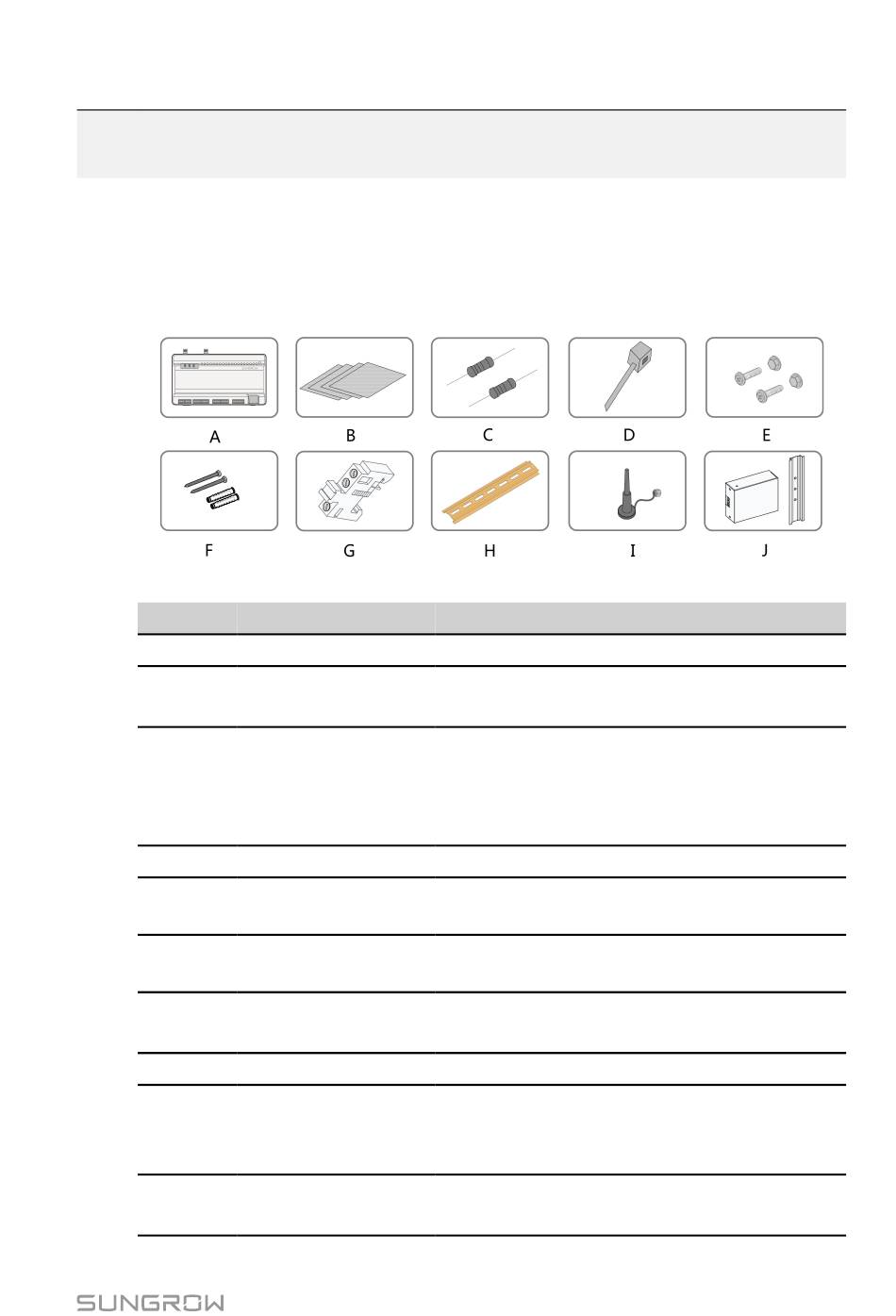

figure 3-1 Scope of delivery
Designation
Logger1000
Documents
Communication
terminal resistor
Nylon cable tie
Fastener assembly
Expansion bolt
Terminal fastener
Guide rail
WLAN antenna
4G antenna
Power box
Description
Logger1000
Quick User Manual, quality certificate, packing list,
product test report, and warranty card
6x120Ω (Note: if there are more than 15 devices
connected on the RS485 bus, it is recommended
to connect a 120Ω terminal resistor in parallel on
the A and B lines at the head or tail end of the bus)
Used to tie cables
4 sets, M4X16, used for wall-mounting to fasten
the device on the metal surface
4 sets, ST4.8X19, used for wall-mounting to fasten
the device on the concrete wall
2 sets, E/UK-1201442, fixed on the guide rail to
prevent the Logger1000 from moving
Length: 240mm
The Logger1000A is provided with the 4G antenna
mounting hole while Logger1000B is not.
Specifically, refer to the actual product received.
Converters the AC current into DC current Length
of supporting guide rail: 170mm
