Unpacking and Storage

5

5.1 Scope of Delivery

Check the scope of delivery for completeness according to the packing list. The
following items should be included.
I I t t e e m m
A
B
C
D
E
F
G
H
10

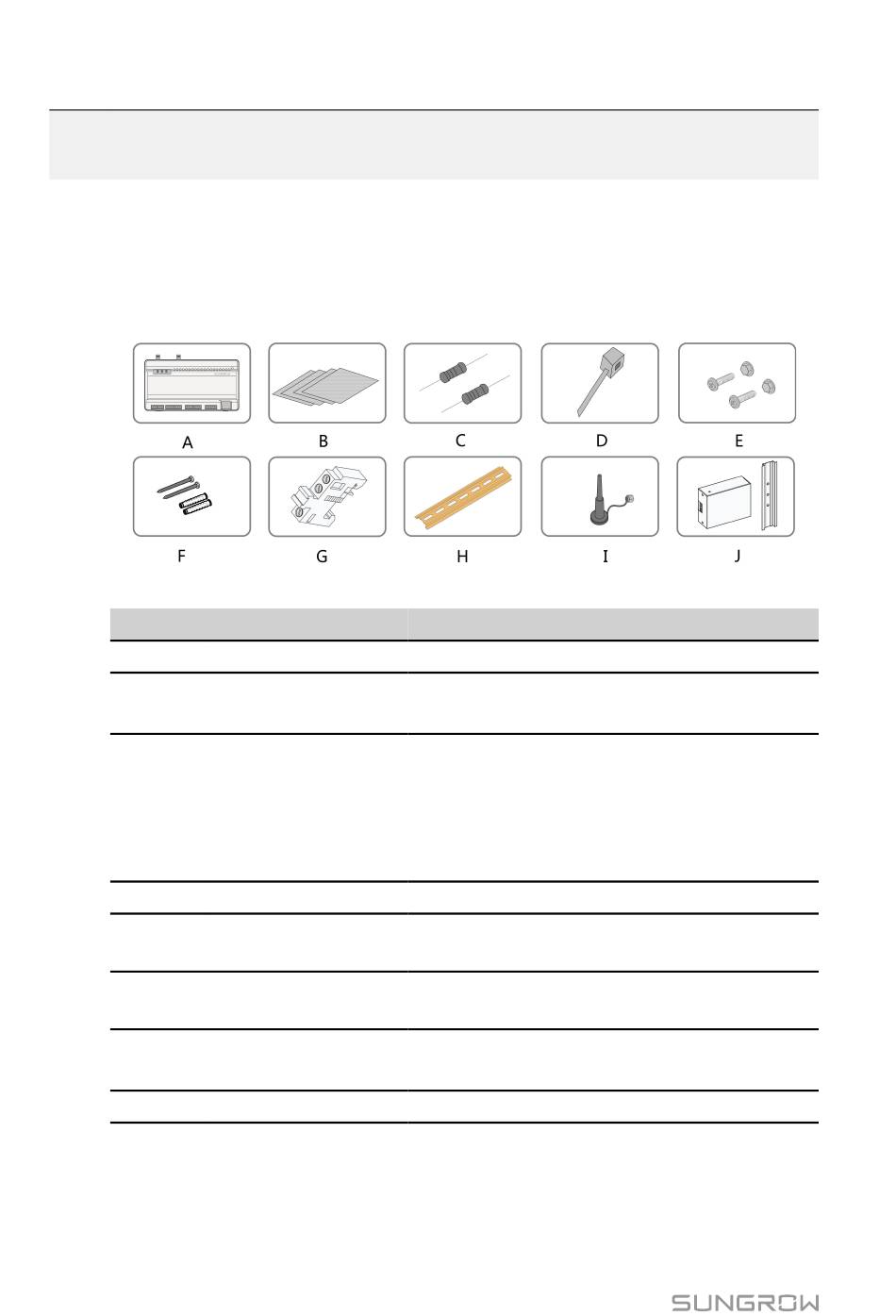

F F i i g g u u r r e e 5 5 - - 1 1 Scope of delivery
D D e e s s i i g g n n a a t t i i o o n n
Logger1000
Documents
Communication
terminal resistor
Nylon cable tie
Fastener assembly
Expansion bolt
Terminal fastener
Guide rail
D D e e s s c c r r i i p p t t i i o o n n
Logger1000
Quick User Manual, quality certificate, packing
list, product test report, and warranty card
6x120Ω (Note: if there are more than 15
devices connected on the RS485 bus, it is
recommended to connect a 120Ω terminal
resistor in parallel on the A and B lines at the
head or tail end of the bus)
Used to tie cables
4 sets, M4X16, used for wall-mounting to fasten
the device on the metal surface
4 sets, ST4.8X19, used for wall-mounting to
fasten the device on the concrete wall
2 sets, E/UK-1201442, fixed on the guide rail to
prevent the Logger1000 from moving
Length: 240mm
