step 6 Check and ensure that the Logger1000 is firmly installed.
- - End
4.3.2 Guide Rail-Mounted Installation

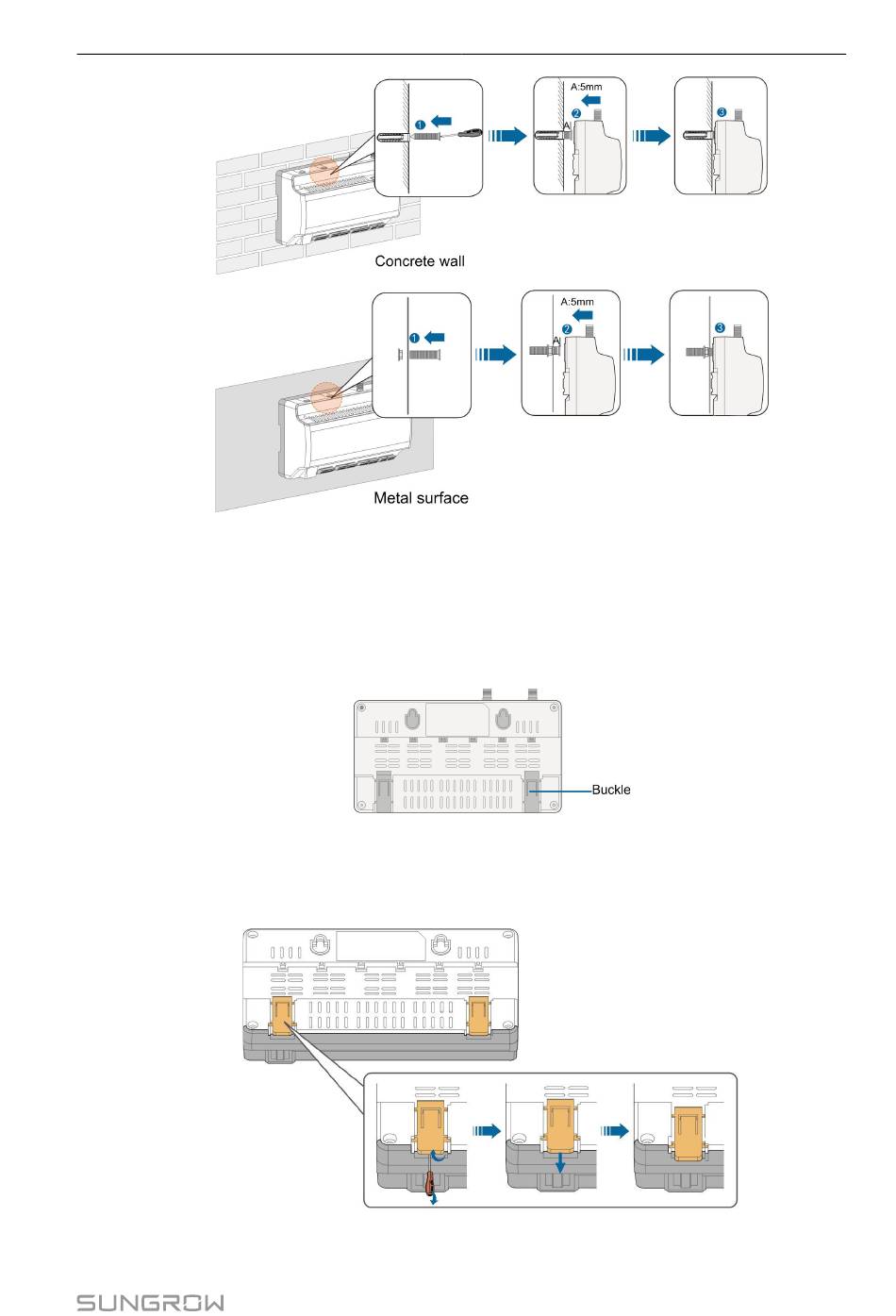

Secure the Logger1000 via the rail buckles (as shown in the figure below) on the back of it.
step 1 Install and secure the guide rail at the appropriate location.
step 2 Slight press down the recessed part under the buckle of Logger1000 with a flat-head
screwdriver or other similar tools to pull out the buckle outwards.
4 Mechanical Mounting
15
