Installing Power Box

Mount the power box onto the concrete wall or metal surface according to onsite
conditions.

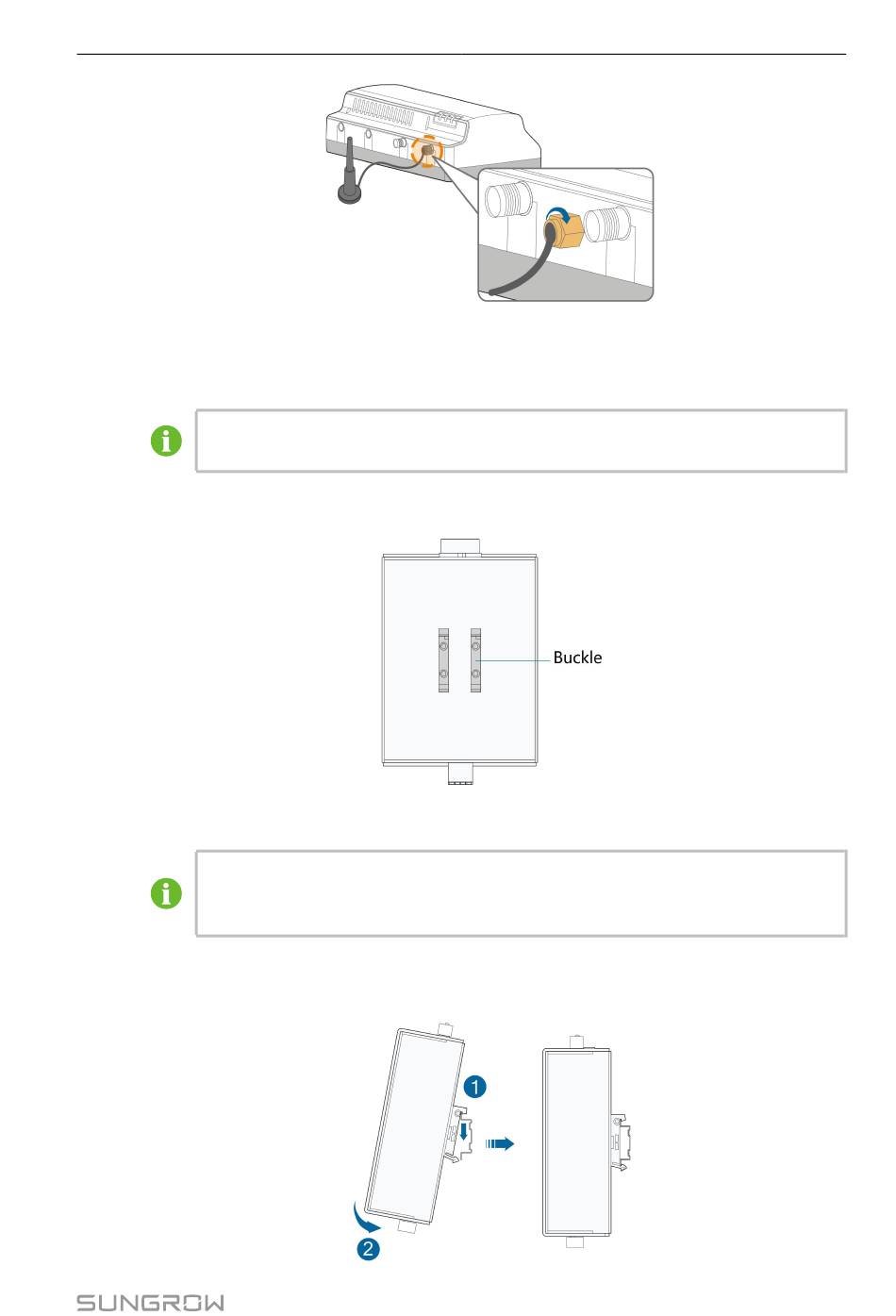

Secure the power box via the buckles (as shown in the figure below) on the back of it.
step 1 Install and secure the power box guide rail at the appropriate location.
The power box should be 200mm away from the Logger1000 to ensure that the
power cable from the power box can be connected to the power input port of the
Logger1000.
step 2 Tilt the power box and hook the buckle into the guide rail. Press down the power box until it
snaps into place with an audible "Click" sound.
