4.2

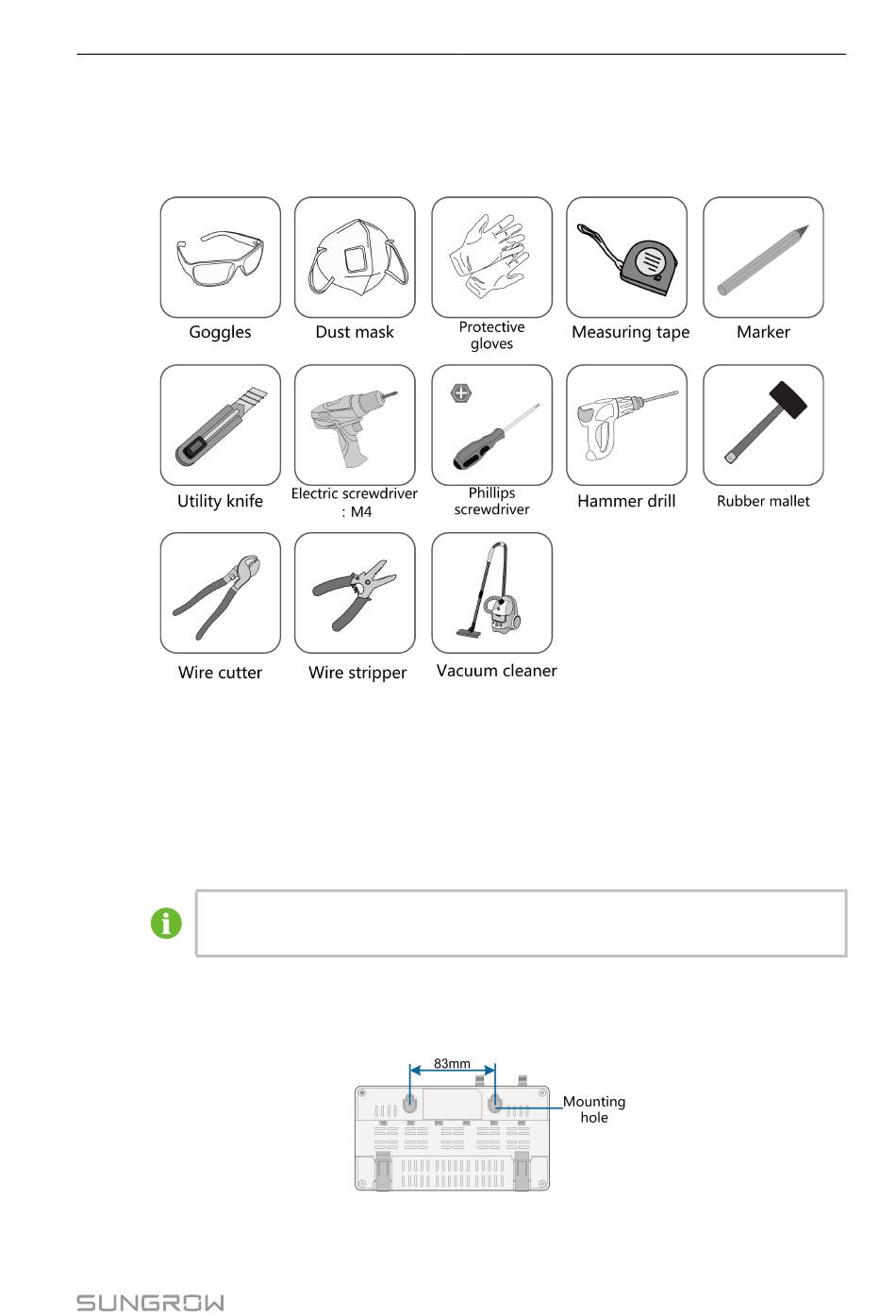

Installation Tools
Installation tools include but are not limited to the following recommended ones. If necessary,
use other auxiliary tools on site.
4.3
Installation Method
The Logger1000 can be installed in the wall-mounting manner or guide rail-mounting
manner, and users can select either one according to onsite condition.
4.3.1 Wall-Mounted Installation
Mount the Logger1000 onto the concrete wall or metal surface according to onsite
conditions.
Mount the Logger1000 onto the wall via the wall-mounting holes (as shown in the figure
below) on the back of it.
step 1 Select an appropriate installation surface.
figure 4-1 Wall-mounting hole dimension
4 Mechanical Mounting
13
