4 Mechanical Mounting

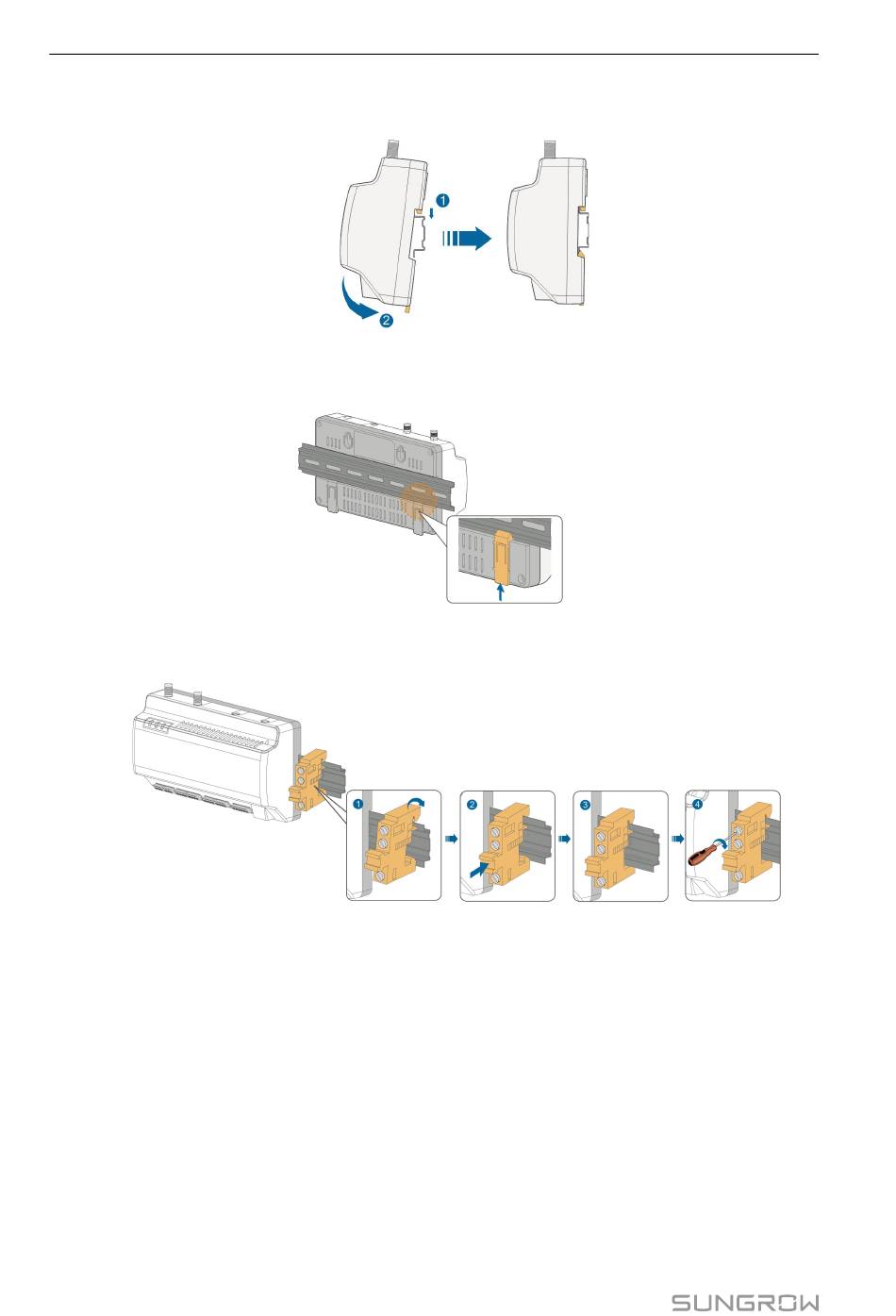

step 3 Hook the Logger1000 into the guide rail from above and press down the lower part of the
Logger1000 until it snaps into place.
step 4 Push the buckle of the Logger1000 upwards to clamp the guide rail.
step 5 Secure the terminal fasteners on both ends of the guide rail, to prevent the Logger1000 from
moving.
step 6 Check and ensure that the Logger1000 is firmly installed.
- - End
4.4

Installing Antenna

The sucker antenna base should be placed on a metal surface outside the container to
avoid impact on signal reception.
Antenna entry should be reserved on the container, and the entry hole size is 20mm.
Secure the sucker antenna base onto the surface outside the container, lead one end (with
the nut) of the antenna through the drilled hole, and fix it onto the corresponding terminal of
the Logger1000 clockwise, as shown in the figure below.
