User Manual
The Logger1000 supports various communication manners such as WLAN and 4G.
The Logger1000 can be connected to various environment sensors, Smart Energy
Meters, Meteo Stations, and inverters in the PV power generation system via an RS485
bus.
Users can access the Web interface via mobile phone or PC, on which parameter
configuration and remote on-line upgrading can be performed.
The Logger1000 can transmit data to iSolarCloud and forward background instructions
to downstream devices.
The Logger1000 is equipped with grid dispatching function, including active power
control, reactive power regulation, etc.
2.4

Product Introduction

Appearance
Designation
Item
A
Indicator
B
Vent
WLAN antenna mounting hole
C
4G antenna mounting hole
D*
Wiring terminal
E
Note: D* is 4G antenna mounting hole. The Logger1000A is provided with the hole while the
Logger1000B is not. Specifically, refer to the actual product received. In the following,
description is given by using the Logger1000A as an example.

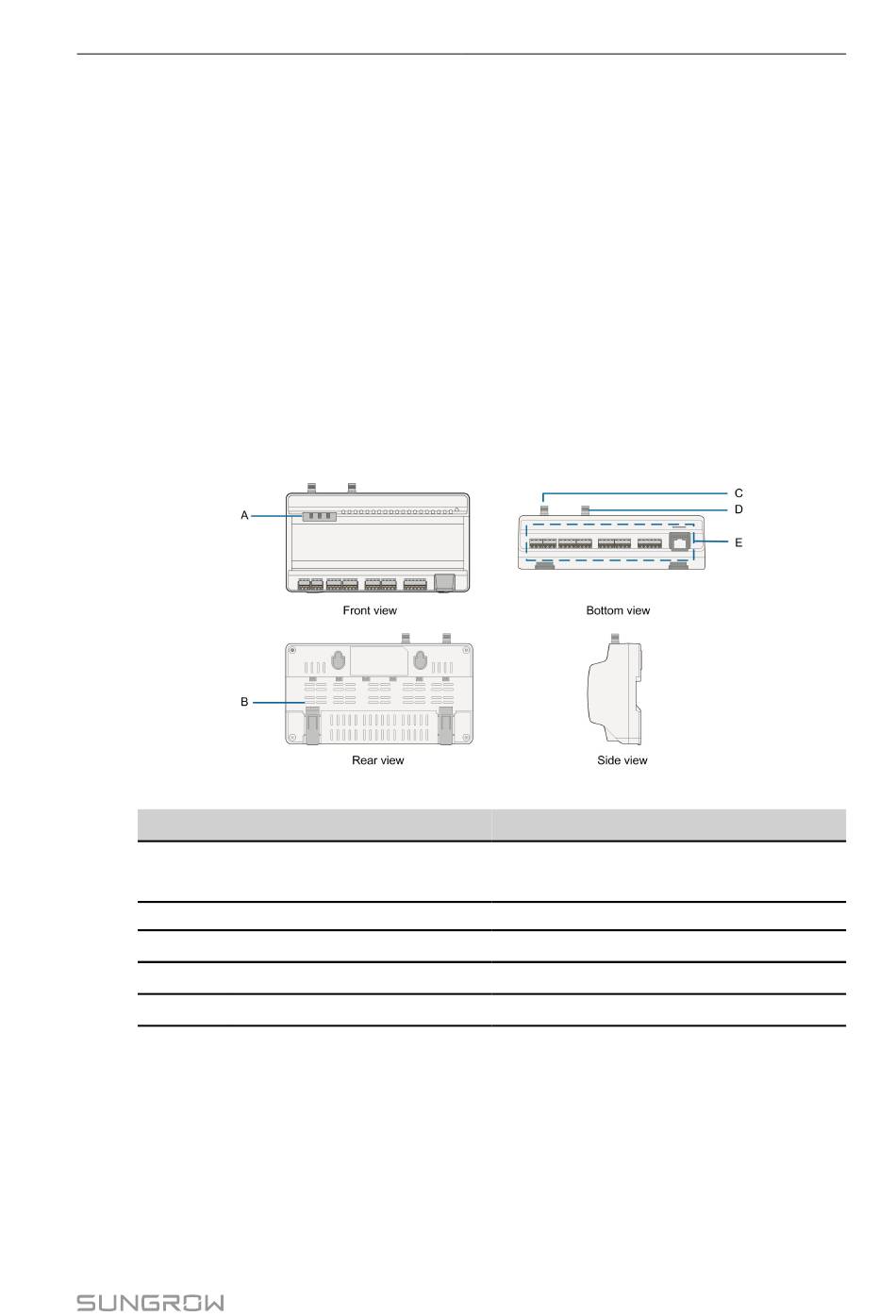

figure 2-1 Appearance
Description
Indicate the running state of the
Logger1000
-
-
-
Refer to
"table 5-1 Port description"
2 Product Description
7
