5 Electrical Connection

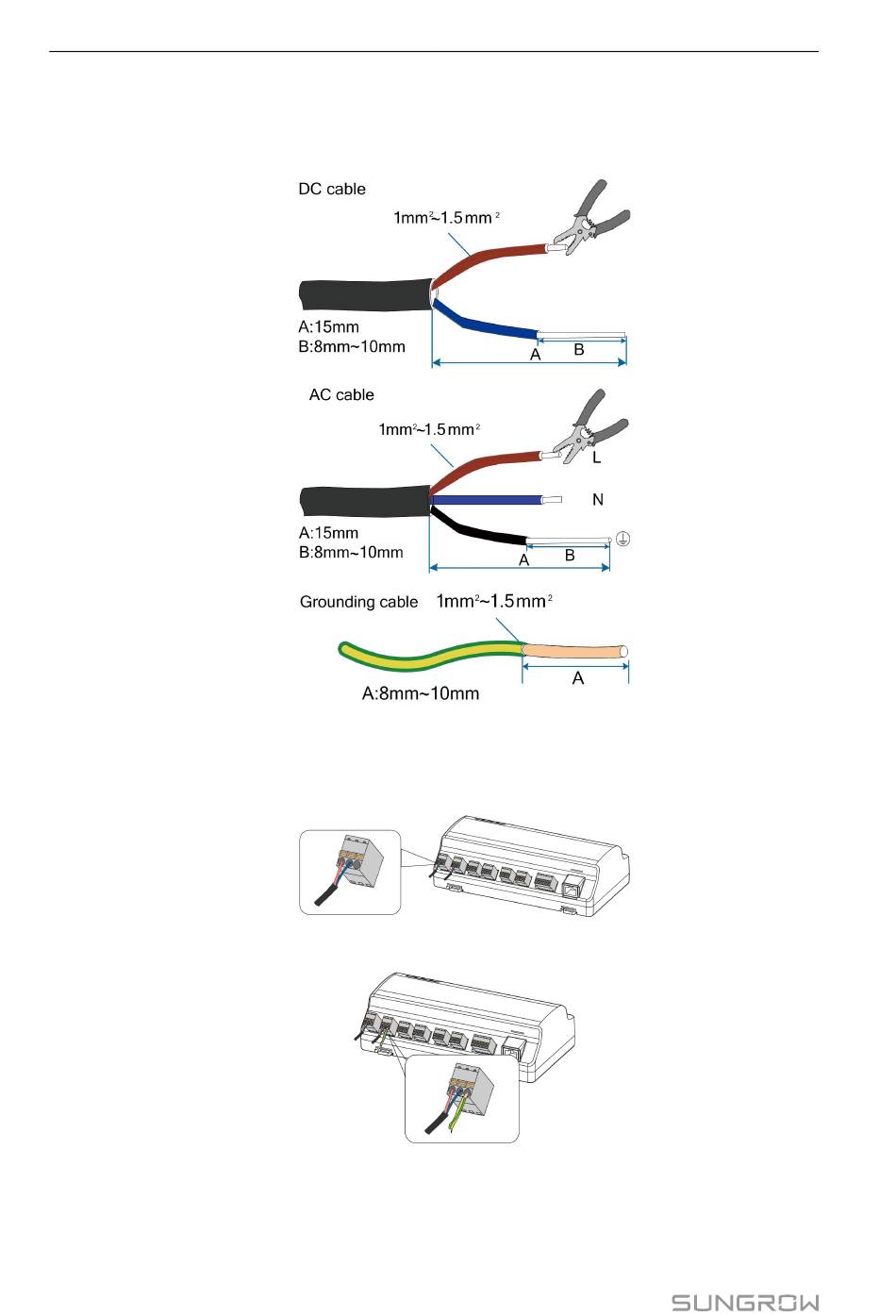

Power cable wiring steps are as follows:
step 1 Strip the cable jackets and insulation layers of the DC cable, AC cable, and grounding cable
with a wire stripper by appropriate length.
step 2 Insert the stripped DC cable into the "24V IN" and "24V OUT" ports of the Logger1000.
Connect the DC cable led from the "24V OUT" port of the Logger1000 to other devices that
need 24V DC power supply.
step 3 Connect the stripped grounding cable to the corresponding port of the Logger1000.
step 4 Connect the DC cable led from the "24V IN" port of the Logger1000 to the "DC 24V OUT"
port of the power box. Connect the stripped AC cable to the "AC (100~277V)" port of the
power box, and connect the other end of the AC cable to the 220V AC power.
28
