Goodrive20-EU Series VFD
Terminal
Type
Relay output

3.2.6 Input/output signal connection figure

Use U-shaped jumper to set NPN mode or PNP mode and the internal or external power
supply. The default setting is the PNP internal mode.
Function
name description
AO1
Analog output
AO2
RO1A Relay 1 NO contact
RO1B Relay 1 NC contact
Relay 1 common
RO1C
contact
RO2A Relay 2 NO contact
RO2B Relay 2 NC contact
Relay 2 common
RO2C
contact

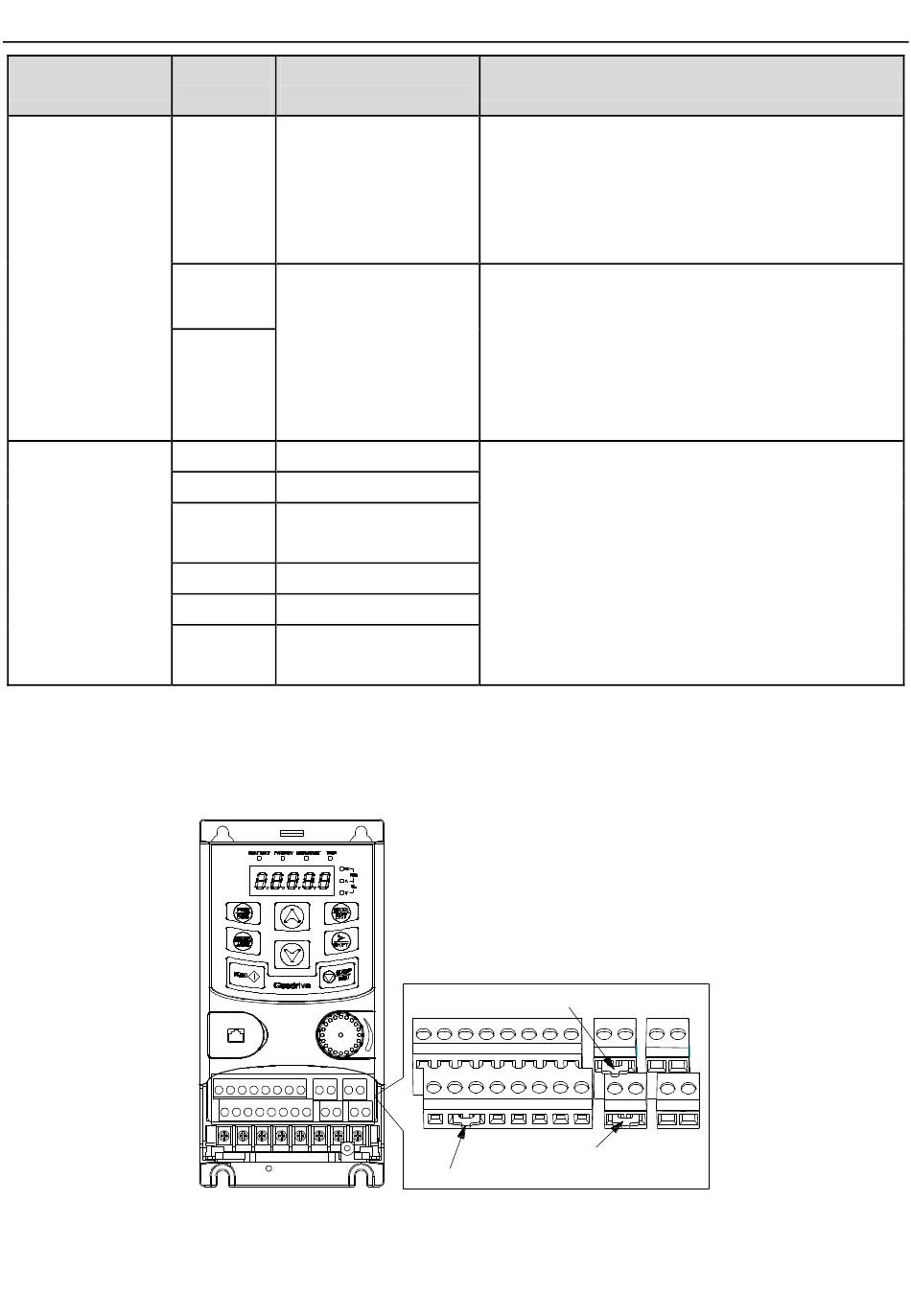

Figure 3-13 U-shaped jumper
Technical specifications
3. Voltage or current input can be set by dip
switch.
4. Resolution: The minimum AI2/AI3 is
10mV/20mV when 10V corresponds to
50Hz.
1. Output range: 0–10V voltage or 0–20mA
current;
2. Voltage or current output is set by
jumpers or toggle switch;
3. Error ± 1%, 25° C;
4. There is only one AO1 for VFDs ≤ 2.2kW.
1. Contact capacity: 3A/AC250V,
1A/DC30V;
2. Please note that it should not be used as
high frequency switch output;
3. There is only one relay output for VFDs
≤2.2kW.
U-shaped jumper between +24V and H1
U-shaped jumper between +24V and H2
U-shaped jumper between COM and PW
