C.6.3 Installation instruction for C3 filter

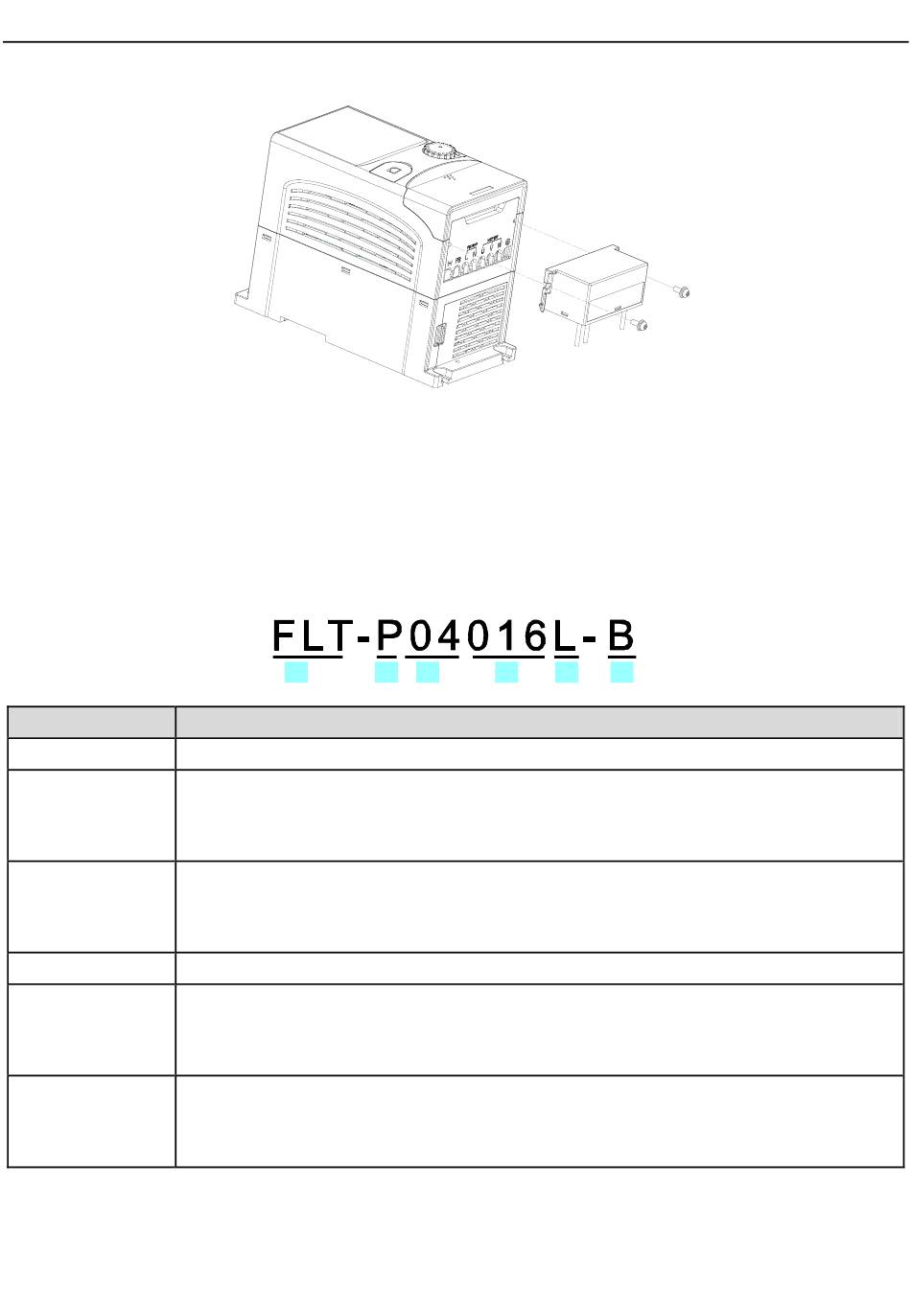

The installation procedures for C3 filter are as below:
1. Connect the filter cable to the corresponding input terminal of the VFD according to the
label;
2. Fix the filter onto the VFD with M3*10 screws (as shown in above picture).
C.6.4 C2 Filter type instruction
Field identifier
A FLT: Name of the VFD filter series
Filter type
B P: Power input filter
L: Output filter
Voltage class
C S2: AC 1PH 200V– 240V
04: AC 3PH 380V–480V
D 3-digit code indicating the rated current. For example, 016 indicates 16A.
Filter performance
E L: General
H: High-performance
Filter application environment
F A: Environment Category I (IEC61800-3) category C1 (EN 61800-3)
B: Environment Category I (IEC61800-3) category C2 (EN 61800-3)
A B C
Field description
-160-
Optional peripheral accessories
D E F
