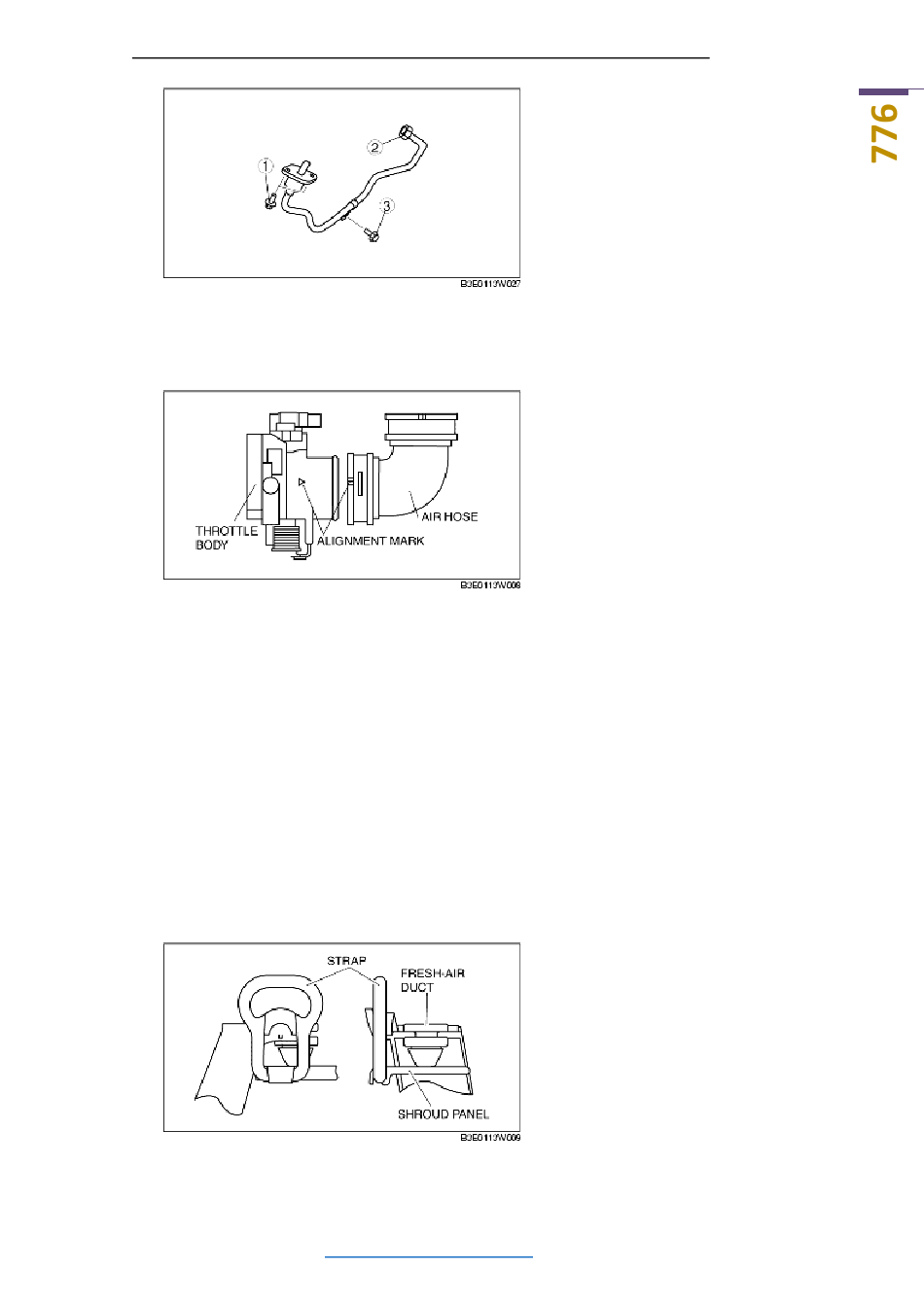

Air Hose Installation Note
1. Align the alignment marks on the throttle body and the air hose.
Fresh-air Duct Installation Note
Note
• Before installing the fresh-air duct, verify that the rubber mounts on the battery support bracket
have not fallen off.
• When inserting the fresh-air duct into the rubber mounts, applying soapy water aids the
operation.
1. Verify that two rubber mounts are installed on the battery support bracket.
2. Install the fresh-air duct into the rubber mounts.
Strap Installation Note
1. Using the strap, secure the shroud panel and the fresh-air duct as shown in the figure.
