INTAKE AIR TEMPERATURE (IAT) SENSOR
Note
• Before performing the following inspection, make sure to follow the procedure as indicated in
the troubleshooting flowchart. (See

Resistance Inspection

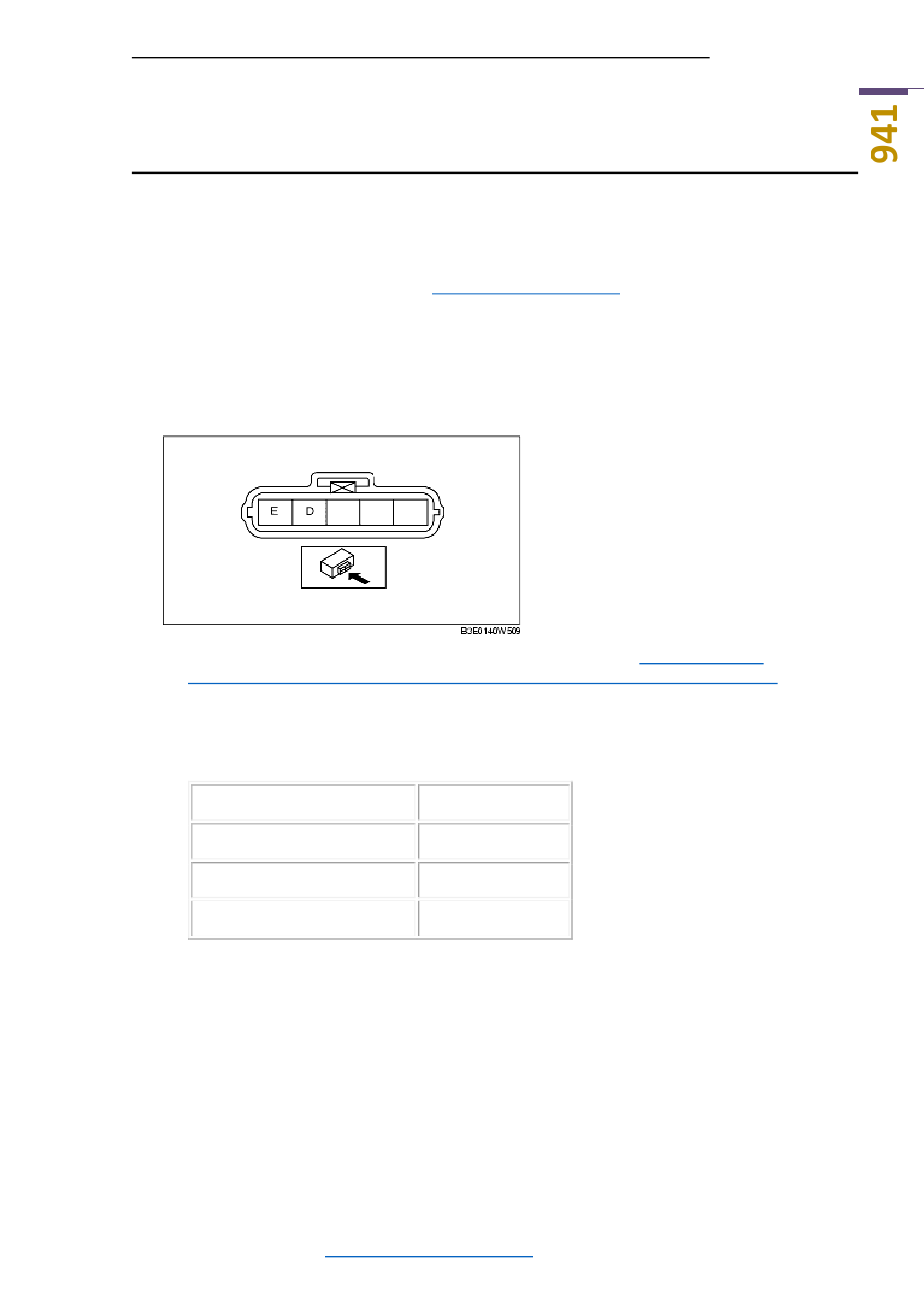

1. Disconnect the MAF/IAT sensor connector.
2. Verify that the resistance between terminals D and E is within the specification.
• If not within the specification, replace the MAF/IAT sensor. (See
(MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION
• If the monitor item condition/specification (reference) is not within the specification, even though
there is no malfunction, perform the "Circuit Open/Short Inspection".
IAT sensor resistance
Ambient temperature (°C {°F}) Resistance (kilohm)
-20 {-4}
20 {68}
60 {140}
IAT sensor characteristics graph (reference)
