26. Tighten the camshaft sprocket installation bolt.
Tightening torque
49.6-60.8 N·m {5.06-6.19 kgf·m, 36.6-44.8 ft·lbf}
27. Remove the bolt (M10 × 1.25) holding the tensioner arm.
28. Verify that there is no slack in the timing chain, and then verify that the marks on the camshaft
sprocket and the crank pulley are aligned.
29. Inspect the valve timing by rotating the crankshaft clockwise twice.

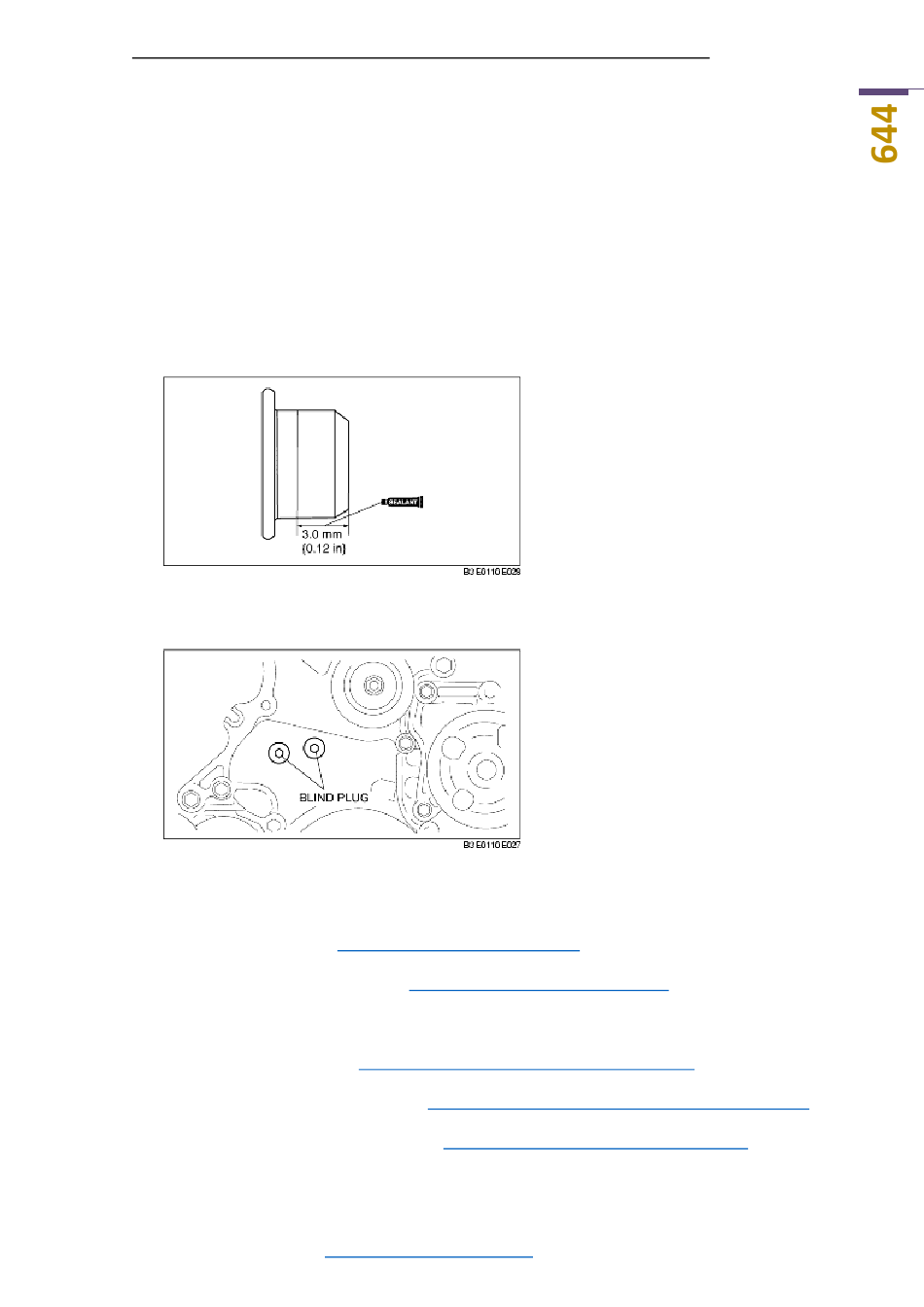

30. Apply silicone sealant to the blind plug as shown in the figure.
31. Install the engine front cover blind plug.
Tightening torque
3.0-5.0 N·m {31-50 kgf·cm, 26.6-44.2 in·lbf}
32. Install the drive belt. (See
33. Install the cylinder head cover. (See
34. Connect the ventilation hose.
35. Install the ignition coils. (See
36. Install the air cleaner component. (See
37. Install the front wheel and tire (RH). (See
