IGNITION COIL INSPECTION [LF]

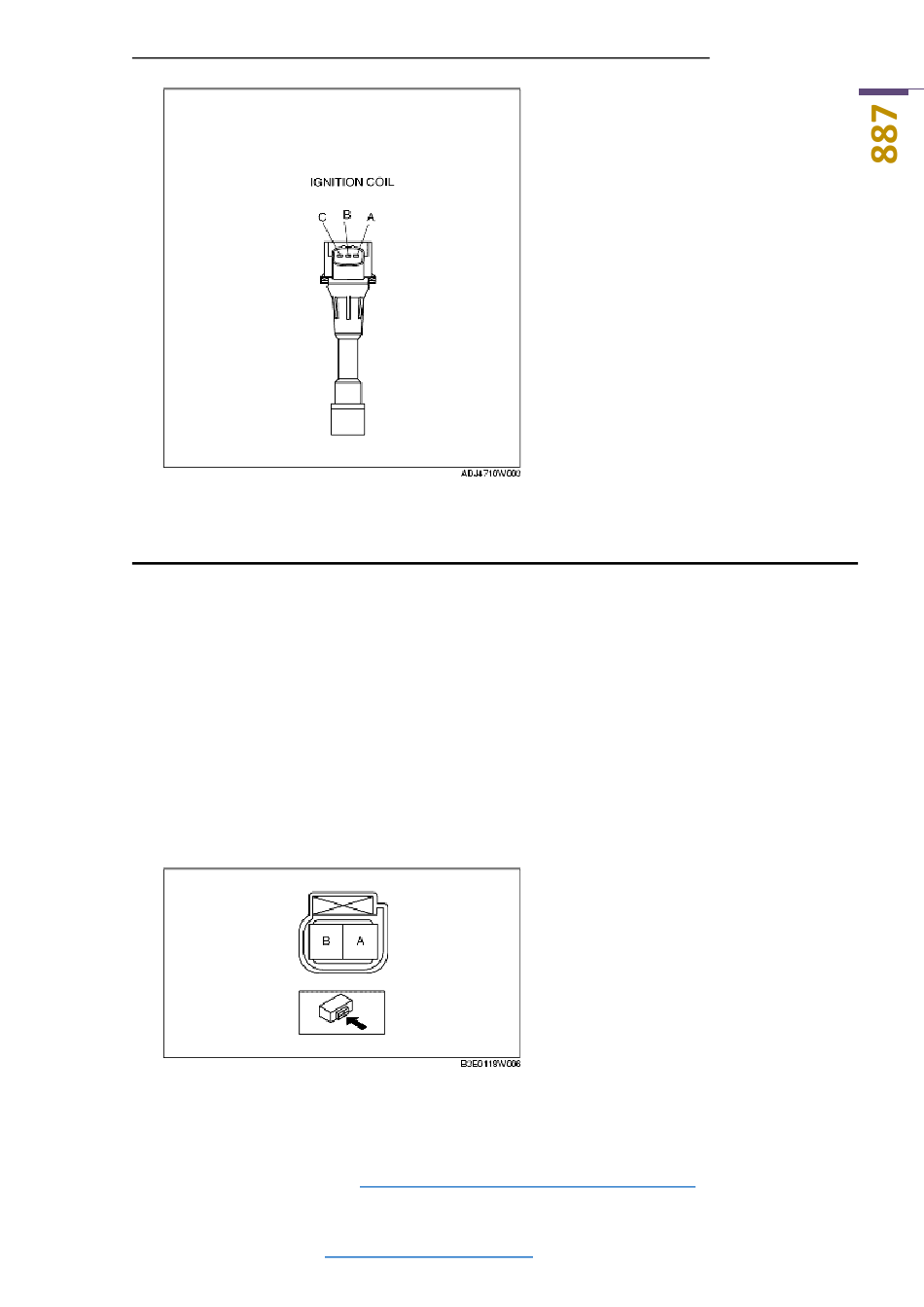

Primary Coil Winding

1. Disconnect the ignition coil connector.
2. Measure the resistance between the following terminals using an ohmmeter:
• A and B
- If not as specified, replace the ignition coil.
Resistance (Reference)
0.45-1.15 ohms [25 °C {77 °F}]

Secondary Coil Winding

1. Disconnect the ignition coil connector.
2. Remove the ignition coil. (See
Downloaded from
IGNITION COIL REMOVAL/INSTALLATION
https://carmanualshub.com/
[LF].)
- automotive repair manuals website
B3E011801009W06
