Mazda 3 Workshop Manual page 301

Mazda 3 Workshop Manual – Engine + Wiring Diagrams + Diagnostic Trouble Codes
POSSIBLE CAUSE
Diagnostic procedure
STEP INSPECTION
VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED
1
• Has FREEZE FRAME DATA been
recorded?
Downloaded from
• This is a continuous monitor (CCM).
• The MIL illuminates if the PCM detects the above malfunction conditions in
first drive cycles.
• PENDING CODE is available if the PCM detects the above malfunction
condition.
• FREEZE FRAME DATA is available.
• DTC is stored in the PCM memory.
• TP sensor malfunction
• Connector or terminal malfunction

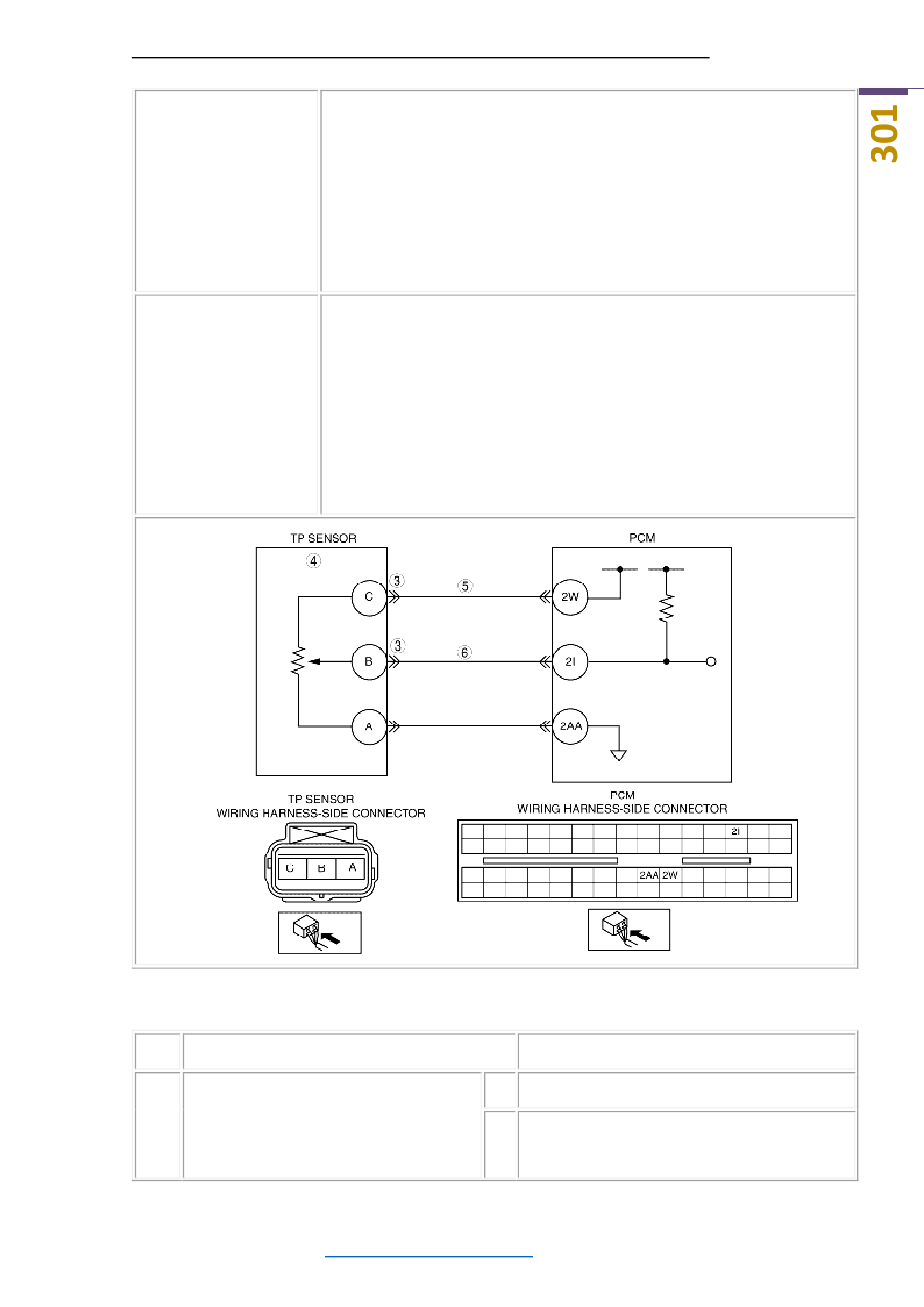

• Open circuit in wiring harness between TP sensor terminal B and PCM
terminal 2I
• Short to ground in wiring harness between TP sensor terminal B and PCM
terminal 2I
• Open circuit in wiring harness between TP sensor terminal C and PCM
terminal 2W
Yes Go to the next step.
No
https://carmanualshub.com/
ACTION
Record the FREEZE FRAME DATA on the
repair order, then go to the next step.
