CPR Dashboard

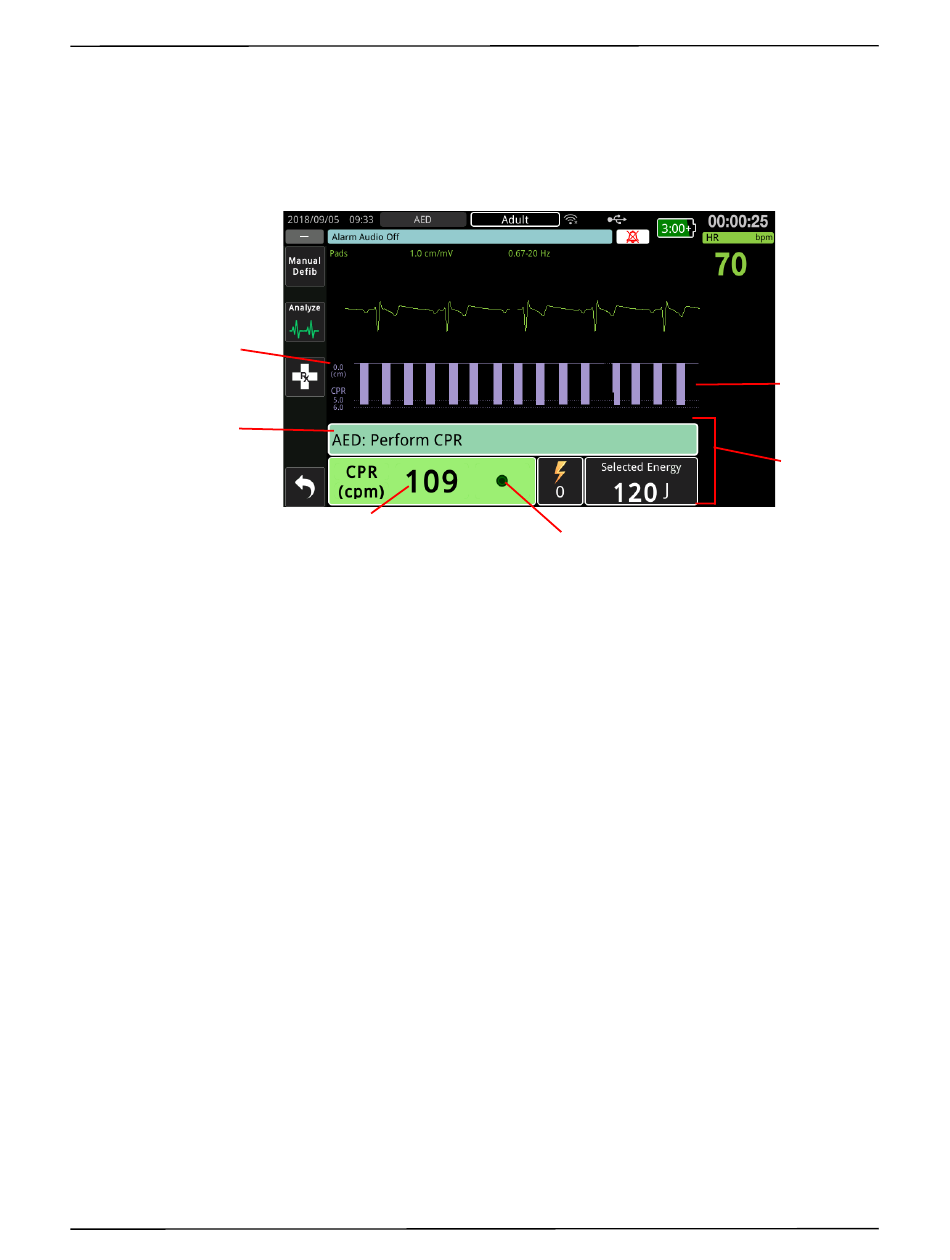

The CPR Dashboard displays at the bottom of the screen and shows the CPR rate measurement,
CPR messages, and the compression detection indicator. In AED mode, the dashboard is only
displayed during CPR periods and is replaced with defibrillation messages during non-CPR
periods.
Scale
Marker
CPR
Messages
CPR Rate
The CPR rate value displays the current chest compression rate (compressions per minute)
determined by the ZOLL M2 unit. When no chest compressions have been detected during the
past few seconds, the rate display shows "---".
CPR Compression Detection Indicator
This indicator provides a compression signal that flashes with each detected compression to
inform the user that his/her compressions are being detected.
During CPR periods, the default value for compression depth is 5 centimeters, and the default
perform CPR period is 2.0 minutes. These values can be configured using the Supervisor menu
when the ZOLL M2 unit is not in use.
Note:
Compression Voice Prompts (Adults Only)
When chest compressions are detected but their depth is consistently less than the target depth
of two inches, the device periodically issues the "Push Harder" voice prompt. If the rescuer
responds by increasing compression depth to more than the target depth on a consistent basis,
the unit issues a "Good Compressions" prompt.
Note:
CPR Metronome
The CPR Metronome default configuration is to beep at 105 beeps per minute during all AED
CPR periods. The metronome can also be configured to begin beeping at 105 beeps per minute
after the first few chest compressions are detected and continue to beep until chest
