Selecting ECG Waveforms for Display

In Monitor mode, the ZOLL M2 device can fit up to four waveforms on the display. The first
waveform at the top of the display is always an ECG waveform. In the following example,
Lead (RA-LL), is the source of the ECG waveform trace:
II
The ZOLL M2 device displays a different default top waveform trace according to current
operating mode. In Pacing and Monitor modes, the default ECG waveform is Lead II. In
Manual Defib and AED modes, the default ECG waveform is Pads/Paddles. The default
waveform selected for display at the top of the display screen in Manual Defib, Monitor, and
Pacer modes can be changed in the Supervisor menu.
There are two ways to specify which ECG lead is the source of the primary (top) waveform
trace:
Press the ECG lead selection quick access key
•
available ECG lead waveforms. The available waveform sources are determined by the type
of ECG cable connected to the unit.

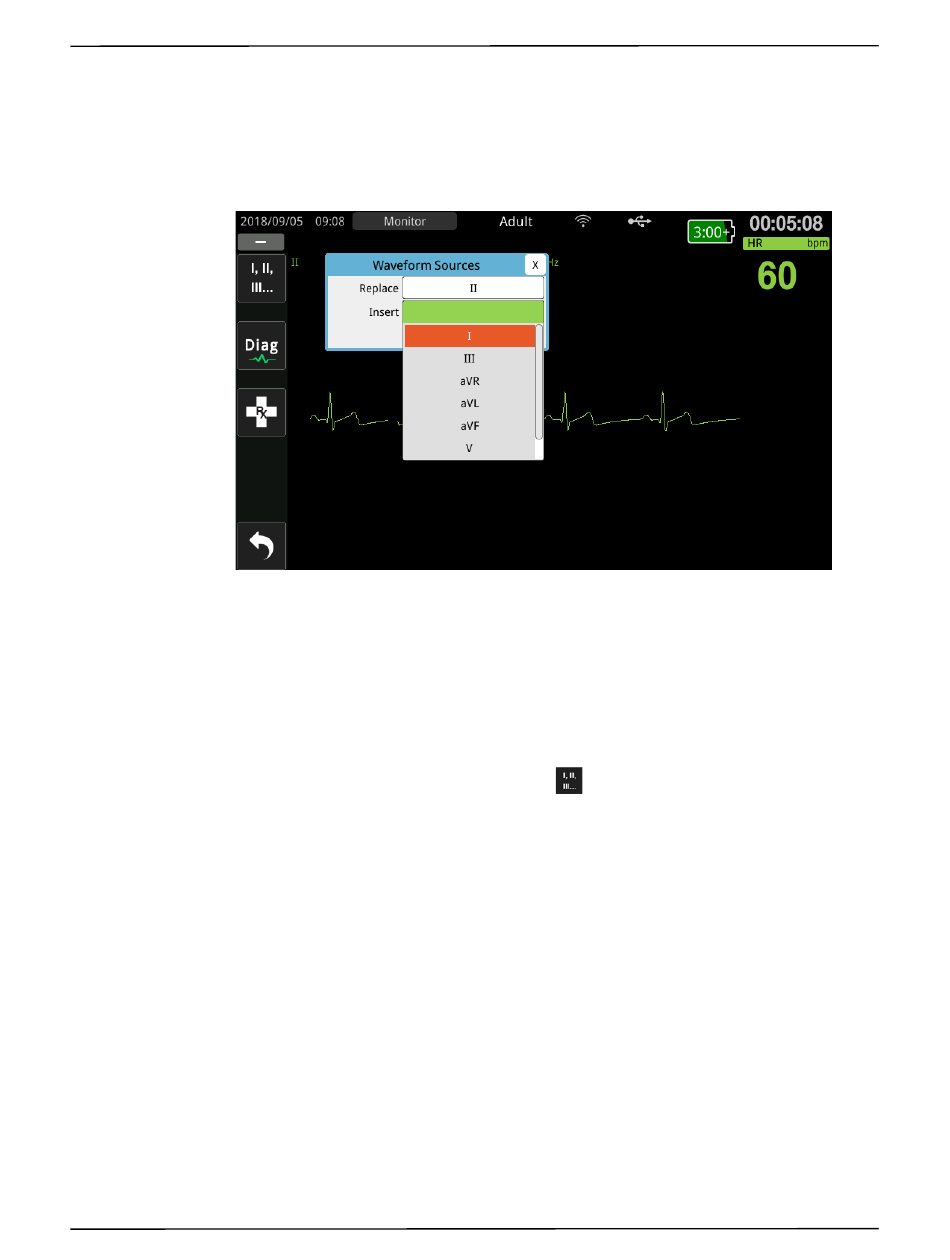

Rotate the Trim Knob to navigate to the source label for the primary ECG waveform (Lead I
•
displays in the following screen) and then press the knob to select it. The ZOLL M2 unit
then displays the available ECG waveform sources. You can select Lead I (the currently
displayed waveform), or rotate the Trim Knob to highlight and press the knob to select
another ECG lead as the source for the waveform trace.
9650-000860-01 Rev. C ZOLL M2 Operator's Guide
ECG Monitoring Setup
to sequence through the display of the
6-7
