Snapshots
Pacer Startup

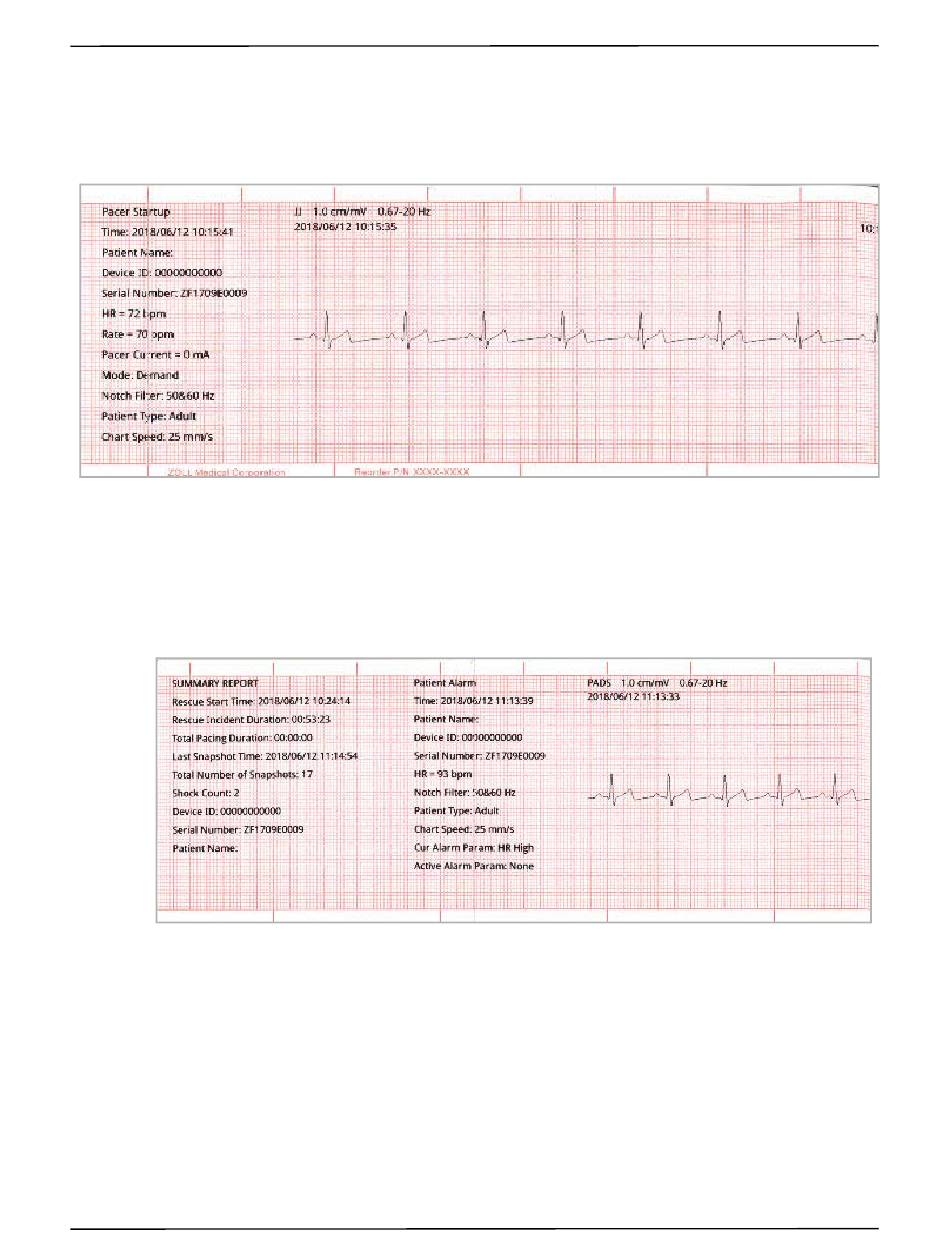

This snapshot is taken when the unit enters the Pacer mode. It shows the patient's ECG
waveform during the six seconds prior to the initiation of pacing and the rhythm during the
following 12 seconds.
Figure 12-7. Pacer Startup Snapshot
Patient Alarm
This snapshot is taken when a patient alarm occurs. Additional information in this snapshot
include the identification of physiological parameter causing alarm, indication of all currently
active patient alarms, and the indication for each alarm of the limit violated (high or low).
Figure 12-8. Patient Alarm Snapshot
