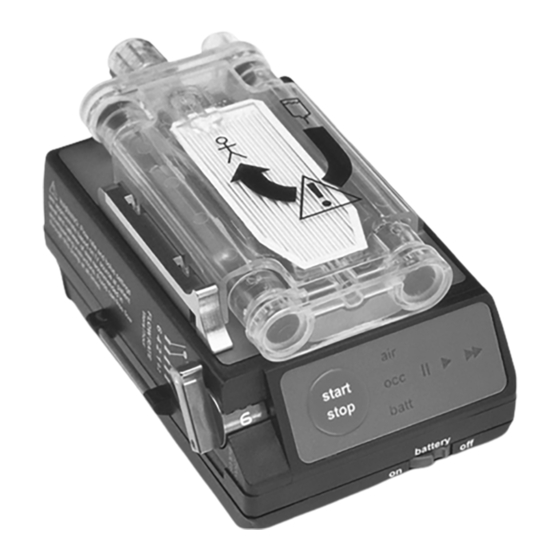

  • Page 1 POWER ® I N F U S E R Infusion Dynamics A Division of ZOLL Medical Corporation 5209 Militia Hill Road Operating Plymouth Meeting, PA 19462 USA 1 (800) 805-1246 or 1 (610) 941-0136 Instructions FAX 1 (610) 941-0134 www.infusiondynamics.com...

  • Page 2: Table Of Contents

    Contents Intended Use ......2 Features & Warnings ....3 Controls .

  • Page 3: Intended Use

    Intended Use ® The Power Infuser Model M100B-3A is intended to support primary intravenous fluid resuscitation therapy to rapidly restore intravascular volume and blood pressure in patients with clinical shock, hypotension, and hypoperfusion states as a result of hemorrhag- ic blood loss, occult hemorrhage, neurogenic shock and septic shock.

  • Page 4: Features & Warnings

    Features & Warnings This is a unique infusion pump. Please make a note of these features, as you may need to change your infusion procedures. High Flow Rates. The Power Infuser will infuse IV fluids at rates up to 6 liters per hour with no IV bag elevation.
  • Page 5 catheter. This feature can add flexibility in the way you use the pump. For exam- ple, use gravity to generate a low keep- vein-open rate or continue fluid delivery when the pump is disconnected. However, be aware that free flow can cause the actual flow rate to be higher than the set rate, particularly at the low settings.
  • Page 6 Air Detection. If the pump detects air exiting the cartridge it will stop pumping and signal alarm. When using the Crystalloid/Colloid Cartridge this should only happen if the cartridge has not been fully primed. The air alarm can also be triggered if the car- tridge becomes dislodged from the pump, if the IV solution does not have any saline content, or during the 10-20 sec-...
  • Page 7 Long Battery Life. Six standard AAA size alkaline batteries will run the pump for approximately 8 hours at 6 liters per hour, longer at lower rates. When the battery can no longer sustain the set rate, the alarm will flicker but batt the pump will continue to operate, often for another hour or more.
  • Page 8 Under extreme circumstances (low humidity, synthetic-covered floors) elec- trostatic discharges to the Power Infuser may cause it to alarm and interrupt fluid delivery. Press start/stop to reset alarms and again to resume flow. Type BF (body floating) applied part complying with IEC 60601-1.

  • Page 9: Controls

    Controls Start/stop button Press to reset alarms and start or stop Cartridge pump. Hold down to release pump continuously and override alarms. Pump status standby on (0.2 lph) on (1-6 lph) On/off switch for battery power Flow rate selector Alarms liters/hour air exiting BOL=250cc...

  • Page 10: Normal Operation

    Normal Operation Setup and Prime Connect bag, cartridge and IV sets using standard IV bag spike with Luer connectors. When infusing blood products with the Blood cartridge, always use an IV set that is designed for blood products and contains an appropriate screen. Install cartridge: hold at an angle and engage tab on the side of the cartridge;...
  • Page 11 the filter is completely wet. Air that is trapped in the cartridge tubing may reduce flow rates. Air bubbles that are not cleared from the top of the filter dur- ing priming may release later, triggering alarm. When using the Blood Cartridge, remove all air from the system.
  • Page 12 250cc in 2.5 minutes and then stops automati- cally. These settings are approximate and are based on IV bag level with patient, crys- talloid infusate and an 18ga peripheral IV catheter. If IV bag is raised above patient, fluids will free flow and rate will be greater than setting.
  • Page 13 End Infusion Push to release cartridge. Gravity-driven infusion can continue with the cartridge in-line. After use, dispose of cartridge and tubing sets in accordance with applicable regulations. Turn off pump or unplug power adapter.

  • Page 14: Troubleshooting

    Troubleshooting Problem: “air” indicator illuminated and unit continues to alarm. Solution: (a) Unit may have detected air as fluid exits the pump. If air bubble present extract air before resuming flow. Press start/stop resume infusion. (b) Check if cartridge has disconnected from pump.
  • Page 15 cartridge has been installed or when switching from IV fluid to blood products in the same IV line. Press start/stop to resume infusion. When using the crystalloid/colloid car- tridge, condition (a) should only occur if the IV set has not been properly primed (p8).
  • Page 16 recommended. When infusing blood or blood products, use of a 14ga or 16ga peripheral catheter is recommended. See p19 for more information. batt Problem: “batt” indicator illuminated and unit continues to alarm. Solution: (a) Batteries are low. Replace batteries (p16) or connect optional power adapter.

  • Page 17: Maintenance & Service

    Maintenance & Service Change Batteries To open battery tray, turn lock counter-clock- wise and pull out. Insert six AAA batteries. Orientation noted on tray rails. To close tray, push in fully and turn lock clockwise to secure.
  • Page 18 Routine Maintenance keep clean After each use, clean dirt and salt solutions from the top of the pump by flushing with water and drying thoroughly. Salt solu- tions can defeat the pump’s air detection system and salt crystals can damage the pump’s seals.
  • Page 19 Service Please report any pump malfunctions to the company immediately. If a pump requires fac- tory service, first contact Infusion Dynamics to receive a Returned Material Authorization number (RMA), then return the device to: Infusion Dynamics 5209 Militia Hill Road Plymouth Meeting PA 19462-1216 TEL: 1 (800) 805-1246 or 1 (610) 941-0136...

  • Page 25: Components

    Components The following Power Infuser components are available separately: Crystalloid/colloid pump cartridges for the Power Infuser. Includes 18in pump-to-patient tubing set. Sterile, single use only. Box of 10. Part No: 0040-0050 NSN: 6515-01-466-1488 Blood pump cartridges for the Power Infuser. Includes 18in pump-to-patient tubing set.
