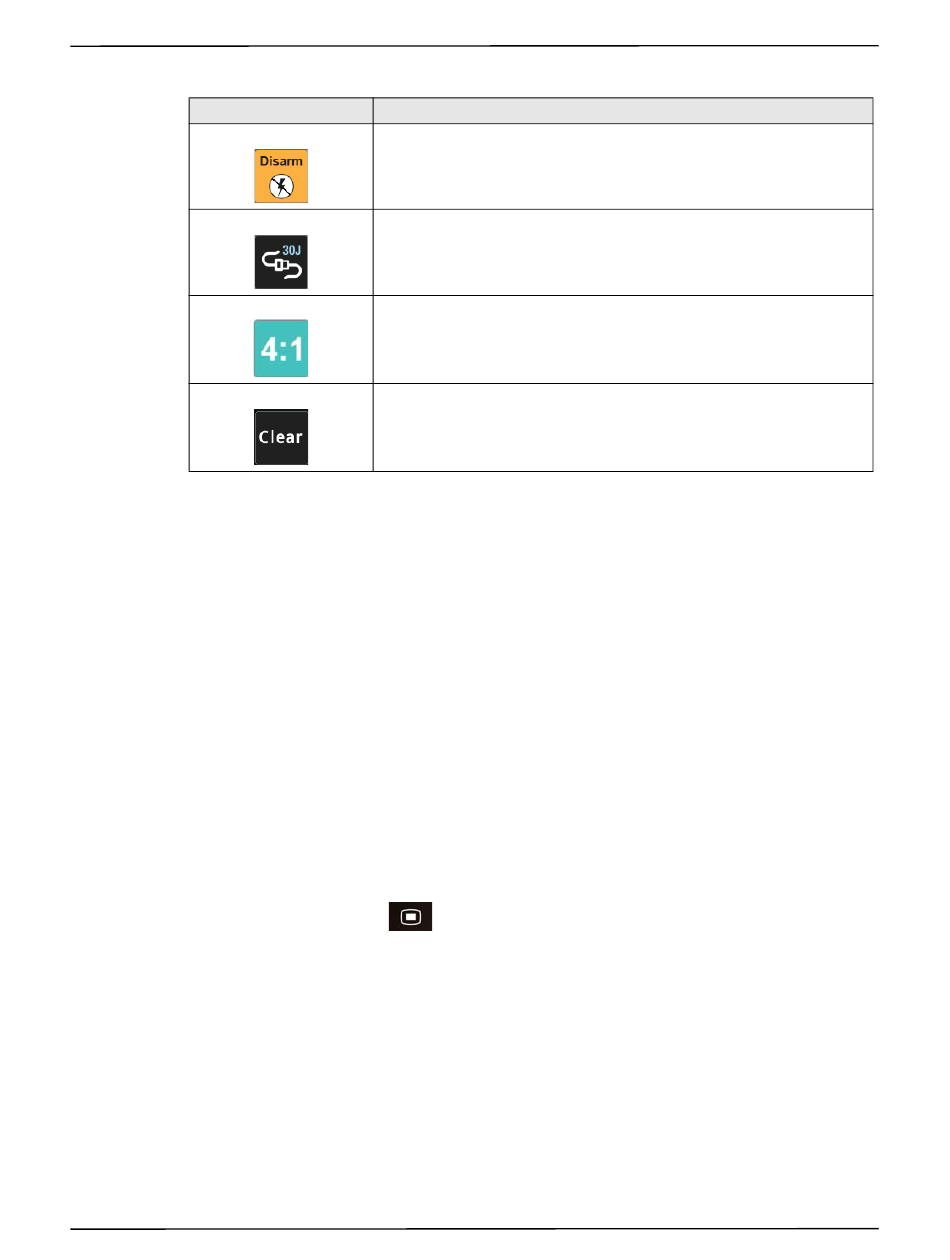

Table 3: ZOLL M2 Quick Access Keys
Quick access key
Disarm
30 Joule Test
4:1
Clear

Trim Knob

Rotate the Trim Knob clockwise to make the cursor travel in a clockwise direction around the
display screen, or downward in a list or window. Rotate the trim Knob counterclockwise to
make the cursor to travel in a counterclockwise direction around the display screen, or upward
in a list or window.
Rotate the Trim Knob in clockwise and counterclockwise direction to do the following:
Move clockwise and counterclockwise through the main display windows.
•
Move up and down in a window.
•
Change parameter settings.
•
Press the Trim Knob to do the following:
Display the settings window while a parameter is highlighted in the main window.
•
Select options from within a window.
•

Display Brightness

The monitor can display different brightness modes. They range from very bright to very dim.
The display modes with more contrast make the numerics and waveforms easiest to read.
The following procedure shows how to select the different brightness options.
1. Press the Menu Button (
Rotate the Trim Knob to highlight and select the System setting, and press the knob to select
2.
it.
3. Rotate the Trim Knob to Display Brightness and press the knob to select the field.
Rotate the Trim knob to select the brightness setting (number) and press the knob to select it.
4.
Rotate the Trim Knob to highlight the X in the top right corner of the window, and press the
5.
knob to close the window.
Note:
9650-000860-01 Rev. C
Description
Safely discharges the defibrillator internally. No energy is delivered to
the patient.
Performs 30 joule defibrillator test.
Enable/Disable 4:1 pacer mode.
Displays and flashes yellow in Pacer mode when there is a pads off or
shorted condition.
Selecting a higher brightness setting (such as Level 5) will deplete the battery pack at a
faster rate than when choosing a lower brightness setting (such as Level 3).
ZOLL M2 Operator's Guide
).
Navigating the Display Screen
2-15
