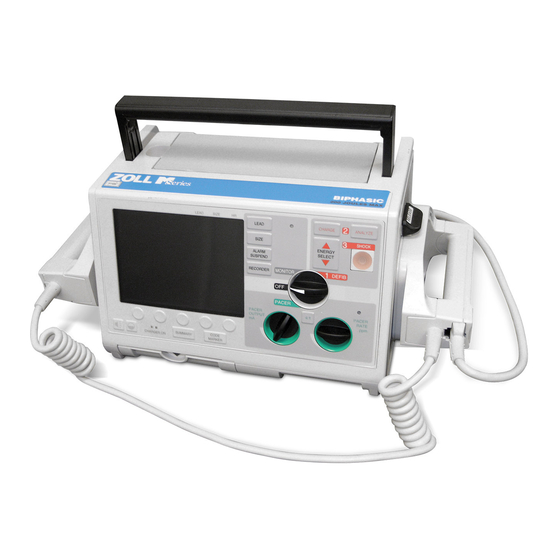

ZOLL M Series Manual

Non-invasive blood pressure
Hide thumbs Also See for M Series:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Non-Invasive
Blood
Pressure
9650-0214-01 Rev. G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZOLL M Series

Summary of Contents for ZOLL M Series

  • Page 1: Blood Pressure

    Non-Invasive Blood Pressure 9650-0214-01 Rev. G...
  • Page 2 The issue date or revision level for this operation guide is shown on the front cover. ZOLL and M Series are registered trademarks of ZOLL Medical Corporation. © 2006 by ZOLL Medical Corporation. All rights reserved.

  • Page 3: How Do I Use This Manual

    M Series unit fails to operate as expected. If you do not know how to use the M Series unit, see the M Series Operator’s Guide and the relevant inserts. Thoroughly read the Safety Considerations and Warnings sections in both the M Series Operator’s Guide and the relevant inserts before operating your M Series product.

  • Page 4: Indications For Use

    • If the accuracy of measurements is suspect, first check the patient's vital signs by alternate means. Then check the cuff, hose and M Series NIBP option for proper functioning. • Do not immerse the M Series device, batteries, patient cables, sensors or airway adapters in water, solvents, or cleaning solutions.

  • Page 5: Contraindications For Use

    Preface Contraindications for Use Use of the ZOLL M Series NIBP option is not indicated for use on neonatal patients or infants whose upper arm circumference is less than 13 cm unless the unit is an M Series CCT unit.
  • Page 6 (NIBP) NVASIVE LOOD RESSURE viii ZOLL M Series Operator’s Guide - Option Insert...
  • Page 7 • Configure alarms to go off when the unit detects blood pressure values above or below user-programmable limits. How Do I Use the NIBP Option? To take safe and accurate blood pressure measurements using the M Series NIBP option, you must do all of the following: 1. Select the proper sized cuff.
  • Page 8 6. Blood pressure values display on the screen. This cycle takes approximately 30 seconds. If set to do so, the M Series unit repeats the cycle at a user- selected interval.
  • Page 9 Softkey Labels Softkeys NIBP Connector NIBP Button NOTE Depending on the options included in your M Series unit, your front panel and display may differ slightly from the illustrations in this insert. ZOLL M Series Operator’s Guide - Option Insert...
  • Page 10 When the cuff is fully deflated, the Cuff Inflation Status Bar is not displayed. On M Series CCT units, a Patient Type indicator appears in the display area if the unit is in pediatric (“P”) or neonatal (“N”) mode. There is no Patient Type indicator if the unit is in adult patient mode (default).
  • Page 11 You must use the 3 m hose when making neonatal NIBP measurements with an M Series CCT unit. The 3 m hose (ZOLL Part No. 8000-0662) is standard on M Series CCT units. Do not use the 1.5 m hose when making neonatal NIBP measurements -- the cuff may not inflate, causing the unit to abort the NIBP measurement.
  • Page 12 Hose the other end. Attach this hose to both the M Series unit and the cuff before taking a measurement. The cuff has its own short length of hose with a connector on the end. This connector fits into the end of the hose that is not connected to the M Series unit.
  • Page 13 NIBP Menu 1. Press the Param softkey. If the Param softkey label is not displayed, press the Return softkey until “Param” displays. The M Series unit displays the Parameter menu (see the following figure): Figure 3 Parameter Menu SpO2 EtCO2...
  • Page 14 Use the default settings unless they are clearly inappropriate. Any changes to these settings remain in effect until either the settings are changed or 10 seconds after the M Series unit is turned off (returning the settings to their defaults). See the M Series Configuration Guide for information on reconfiguring the cuff inflation pressure default setting.
  • Page 15 Preparing to Take Measurements As a safety feature, the cuff can never be inflated to more than 300 mmHg (40.0 kPa). On M Series CCT units, the cuff can never be inflated to more than 300 mmHg (40.0 kPa) in adult or pediatric mode, and never more than 150 mmHg (20.0 kPa) in neonatal mode.
  • Page 16 4. Press the Return softkey (twice on M Series CCT units) to return to the NIBP menu. The cuff inflation pressure is set. You should turn off the Auto Adjust feature in situations where the M Series unit might inflate the cuff Turning Off Auto Adjust to levels that can cause discomfort or harm to the patient.

  • Page 17: Setting Alarms

    * Neonatal and pediatric NIBP modes available on M Series CCT units only. When the M Series unit is turned on, all alarm functions are disabled and the alarm limits are set to their default values. Any changes to these settings remain in effect until either the settings are changed or 10 seconds after the M Series unit is turned off.

  • Page 18: Taking Measurements

    30 mmHg (4.0 kPa) and completes the measurement. If, after 180 seconds, the M Series unit has not been able to determine all three blood pressure values or find a fault, it aborts the measurement cycle and deflates the cuff.

  • Page 19: Taking A Single Measurement

    • Vibrations in the cuff caused by moving vehicles. • Improper cuff size or application. Taking a Single Measurement You can take a single measurement at any time by pressing the NIBP button, unless the M Series unit is charged or charging. CAUTION Make sure that no measurement is being taken when you start a new measurement.

  • Page 20: Taking Automatic Measurements

    The M Series unit continues taking automatic measurements until you press the NIBP Auto softkey, or the unit is turned off for more than 10 seconds. If the M Series unit is turned off for less than 10 seconds, it resumes automatic measurements as scheduled. You can take an additional measurement between automatic measurements, by pressing the NIBP button.
  • Page 21 5, 6, 7, 8, 9, 10, 15, 20, 30, 45, 60, 90, and 120. When you turn on the M Series unit, the measurement interval is set to the default value. The factory- installed default measurement interval is 30 minutes, but you can configure the M Series unit to use a different default.
  • Page 22 The M Series unit continues taking all subsequent measurements at the selected Measurement intervals. If you press the NIBP button while the M Series unit is not taking a measurement, it takes a new measurement. To stop a single measurement: •...

  • Page 23: Printing Data

    Printing Data Printing Data See the “Recorder Operation” section of the M Series Operator’s Guide for instructions on how to record data. If you have already taken NIBP measurements, press the RECORDER button to print a strip chart that includes the following values for the currently displayed measurement: •...

  • Page 24: Cleaning The Hose

    LOOD RESSURE Maintaining the NIBP Option See the M Series Service Manual for instructions on maintaining the NIBP option. Calibrate the pressure transducers and perform leak tests yearly. Performing the Daily Checkout Procedure Perform the following checkout procedure daily to ensure that the NIBP option is functioning properly.

  • Page 25: Nibp Accessories

    To order accessories for the M Series NIBP option call ZOLL Customer Service at 1-800-348-9011. International customers should call the nearest authorized ZOLL Medical Corporation distributor. The following tables list optional accessories that can be used with the M Series NIBP option: Table 5 NIBP Cuff Accessories...
  • Page 26 (NIBP) NVASIVE LOOD RESSURE ZOLL M Series Operator’s Guide - Option Insert...

  • Page 27: Troubleshooting

    The following table lists the NIBP messages, the problem each message indicates, and the associated corrective action(s). Read this section carefully before monitoring patients. For further assistance, call ZOLL Technical Service at 1-800-348-9011. International customers should call the nearest authorized ZOLL Medical Corporation distributor.
  • Page 28 Patient’s limb below level of heart. Raise patient’s limb to heart level. False low reading Cuff too large. Select smaller cuff Limb above level of heart. Lower patient’s limb to heart level. ZOLL M Series Operator’s Guide - Option Insert...

  • Page 29: Specifications

    Typical: 30 seconds Worst Case: 180 seconds * Neonatal and pediatric NIBP modes available on M Series CCT units only. Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultation method, within the limits prescribed by the American National Standard, Electronic or automated sphygmomanometers (AAMI SP10).
  • Page 30 High 35 –110 mmHg; High 4.7 – 14.7 kPa Low 20 – 105 mmHg; Low 2.7 – 14.0 kPa * Neonatal and pediatric NIBP modes available on M Series CCT units only. ZOLL M Series Operator’s Guide - Option Insert...
