INTRODUCTION

Victaulic VicFlex
® ™
using a flexible hose and fittings and are designed for use in multiple configurations on
various wall and ceiling surfaces. Each drop assembly comes with one flexible hose, one
adapter nipple or captured coupling, one sprinkler reducing nipple, and the Style ABBA/
ABMM Bracket.
Drop ceiling construction shall meet the requirements of ASTM C635 and shall be
installed in accordance with ASTM C636.
SHORT 90° ELBOW REDUCERS ARE TYPICALLY USED WITH CONCEALED
SPRINKLERS.
• Refer to the "Technical Data for Flexible Hoses" section.
• Refer to the "Important Information Installation" section.
• Victaulic VicFlex
®
can be installed in multiple configurations on various wall and ceiling surfaces,
along with the VicFlex
• Refer to pages 83 and 85 for a complete listing of installation configurations.
• Always follow design specifications and local building codes when installing this
product.

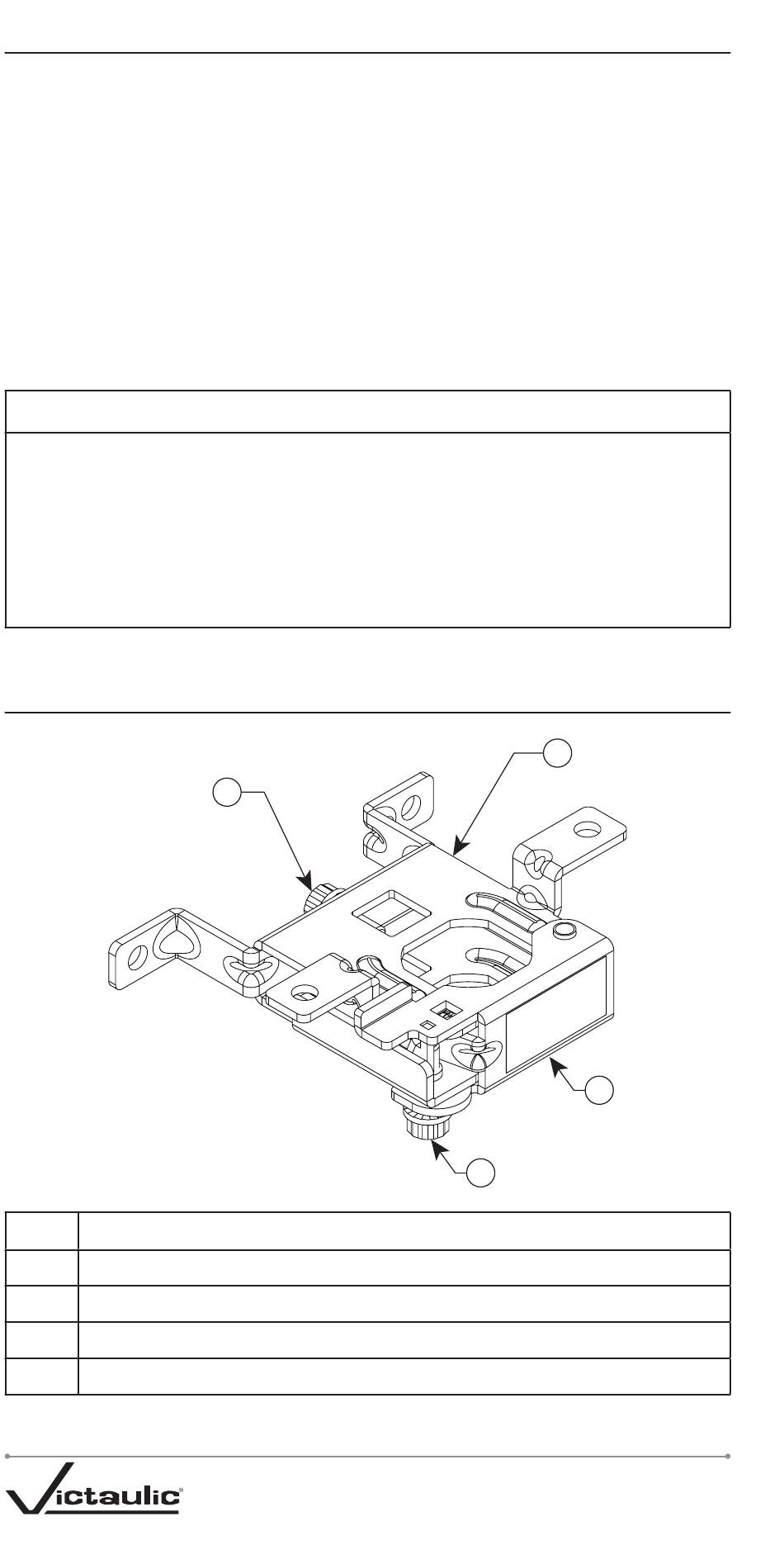

STYLE ABMM BRACKET ASSEMBLY DRAWING

Item
1 Gate
2 Adjustment Screw
3 Square Bar Retaining Screw
4 Bracket Body
I-VICFLEX_80
Sprinkler Fittings connect the sprinkler piping directly to the sprinkler
Style ABBA and ABMM Brackets (regional availability only)
™
flexible hoses.
™
3
Style ABMM Bracket Assembly Description
STYLES ABBA/ABMM BRACKET INSTALLATION
NOTICE
FOR FIRE PROTECTION SERVICE REV_A
4
1
2
