NOTES FOR PREPARATION OF SLEEVE AND
SKIRT AND RECESSED CONFIGURATIONS
The following section covers steps that are required for preparation of dry sprinklers
with removable sleeve and skirt and recessed escutcheon options. NOTE: RECESSED
PENDENT SPRINKLER ASSEMBLIES AND SUPPLIED ESCUTCHEON COMPONENTS
ARE NOT FM APPROVED FOR THE 286°F/131°C TEMPERATURE CONFIGURATION.
2. Carefully place sleeve or collar over sprinkler and onto the barrel.
3. Using the tool provided, push down on the sleeve or collar just until the sleeve or col-
lar is retained on the barrel. Use caution when using this tool to prevent damage to the
bulb, deflector, and frame arms.

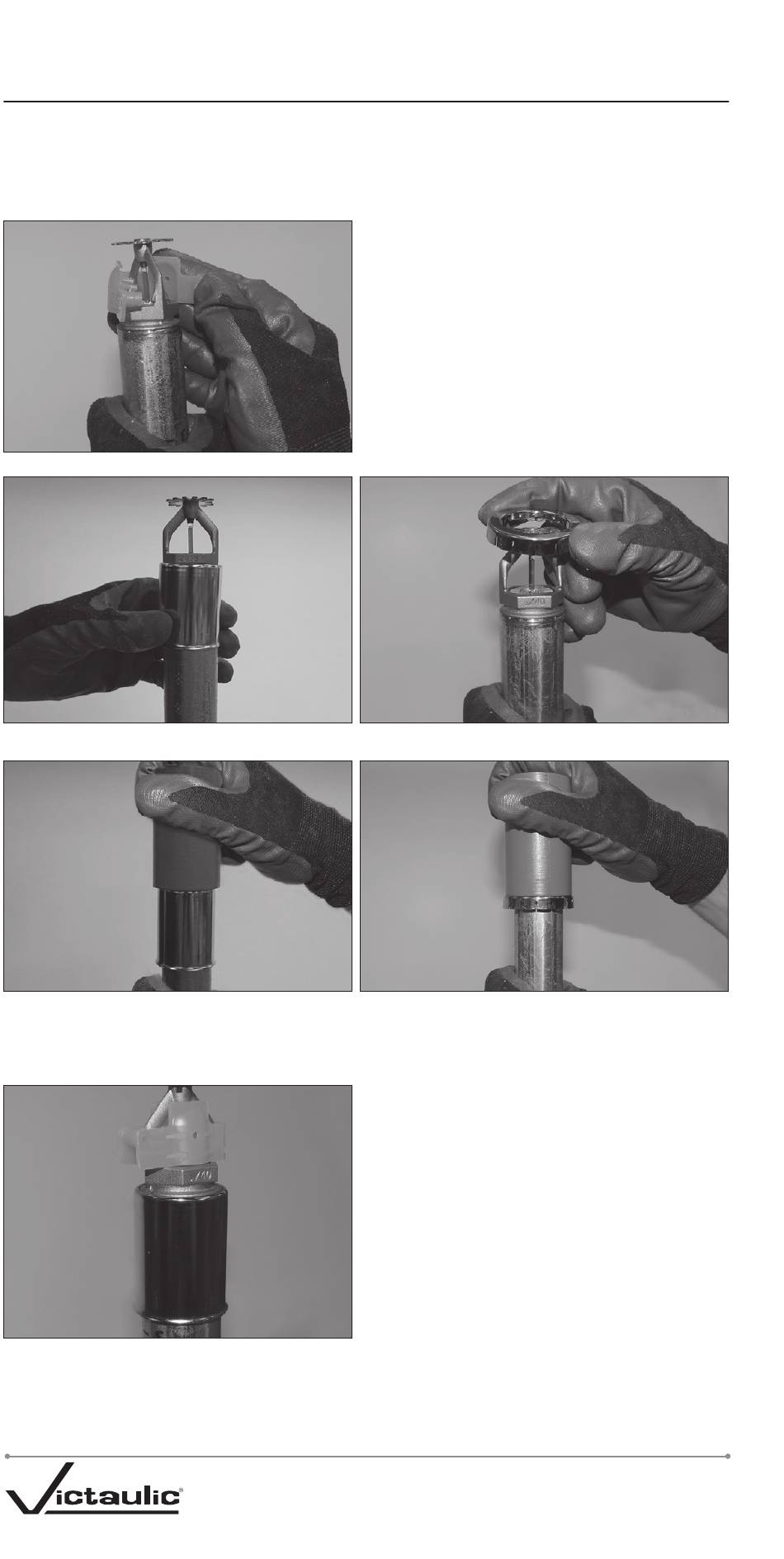

I-VICFLEX_56
1. Temporarily remove the bulb protector
from the sprinkler. Use caution when
removing bulb protector to prevent
damage to the bulb, deflector, and frame
arms. DO NOT use any tools to remove the
bulb protector.
4. Reinstall the bulb protector onto the
sprinkler. Use caution when reinstalling
the bulb protector to prevent damage to
the bulb, deflector, and frame arms. DO
NOT use any tools to reinstall the bulb
protector. Sprinklers showing any signs of
damage shall be replaced immediately.
