INTRODUCTION

The Style AQD Sprinkler Fitting connects the branch line directly to the sprinkler and can
be installed on round or square metal, and fiberglass-reinforced plastic (FRP) ducts.
• Refer to the "Technical Data for Flexible Hoses" section.
• Refer to the "Important Installation Information" section.
CONNECTING THE STYLE AQD SPRINKLER
FITTING TO THE BRANCHLINE
• Victaulic VicFlex™ products shall not be bent or fluctuated up-and-down or
®
side-to-side when pressurized.
Failure to follow this instruction could cause improper sprinkler operation, resulting
in death or serious personal injury and property damage.

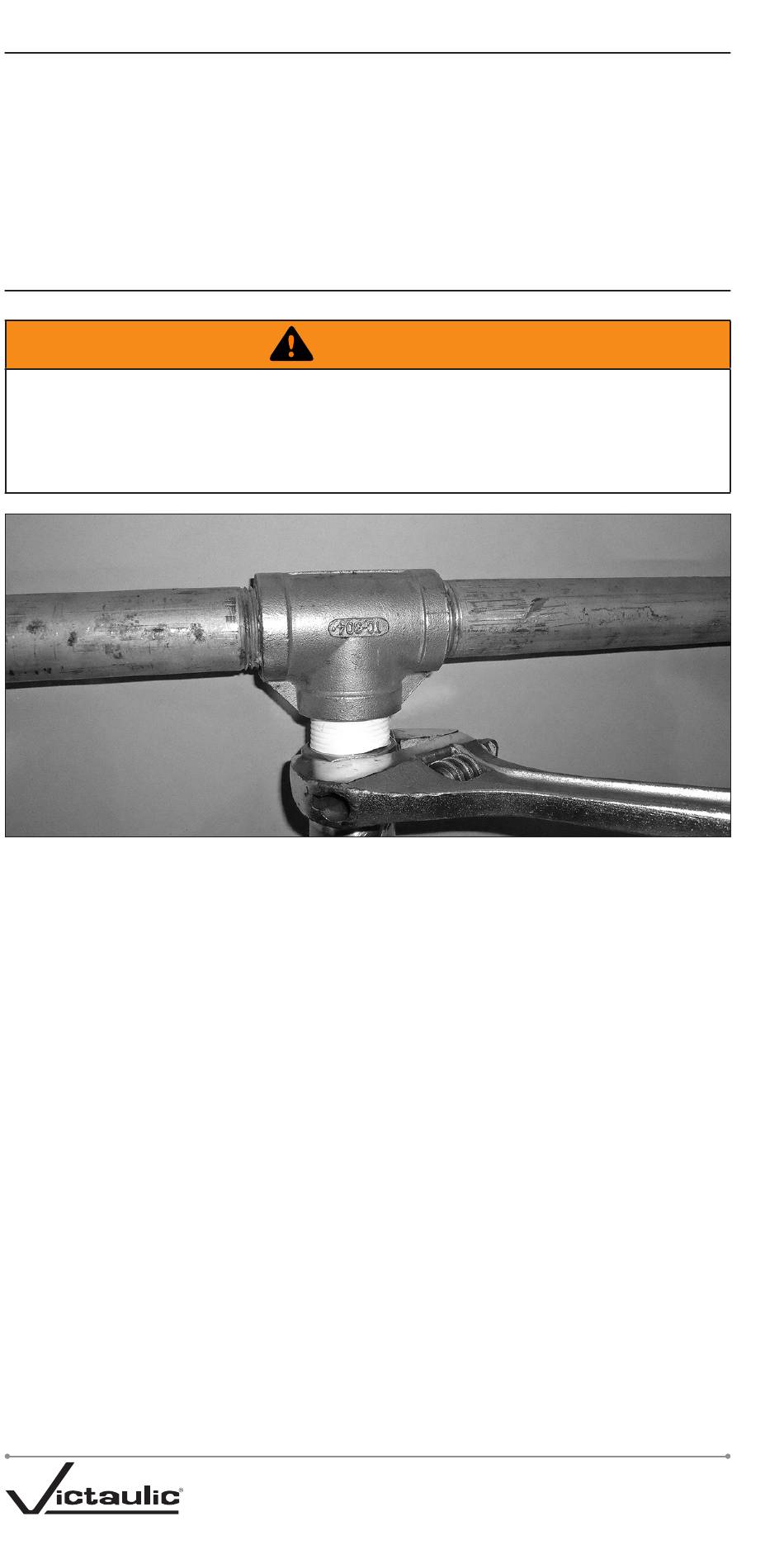

1. Apply pipe joint compound or PTFE thread sealant tape to the nipple of the flexible
stainless steel hose, in accordance with the pipe joint compound or tape manufacturer's
instructions. Tighten the hose into the branch line fitting by using a pipe wrench on the
nut of the flexible stainless steel hose.
