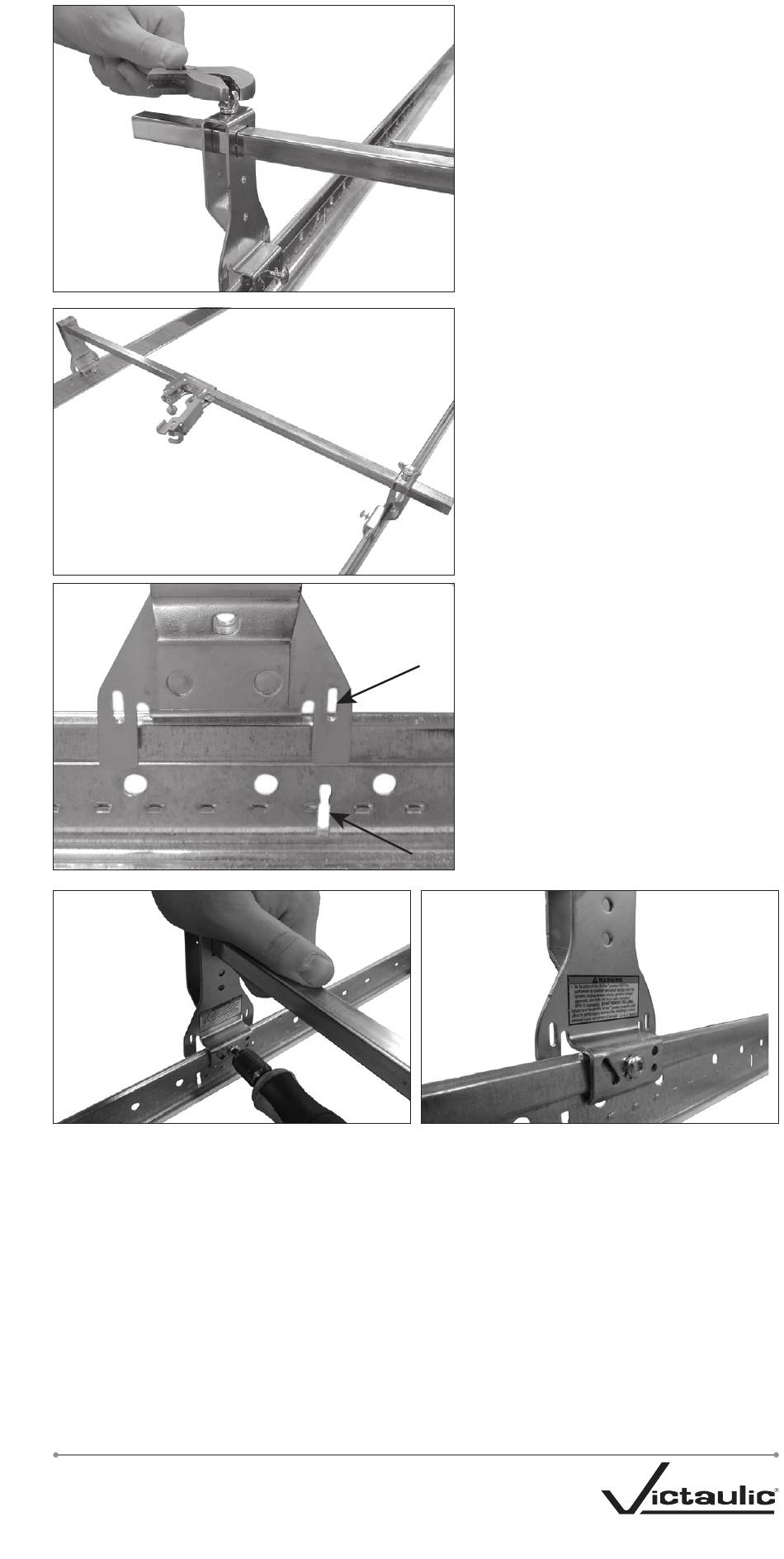

2b. Apply light downward pressure, as shown above, to maintain the position of the end
bracket flat against the T-bar rail. To secure the end brackets to the T-bar rails, tighten
the pre-installed sheet metal screws using a T25 drive bit. Penetrate through the T-bar
rail until the end bracket is seated fully against the T-bar rail, as shown above. DO NOT
over-tighten the screws. Over-tightening will cause the screw to strip, resulting in an
unsecured bracket connection.
3. Complete the installation by following the applicable instructions in the "Sprinkler
Reducing Nipple Installation," "Sprinkler Installation," and "Ceiling Tile Installation"
sections.
STYLE AB1, AB2, AND AB10 BRACKETS
INSTALLATION INSTRUCTIONS REV_A
FOR STYLES AB1 AND AB2
BRACKETS ONLY: For adjustment
purposes, the wing screw on top of
the end bracket assembly can be
loosened to allow the end bracket to
slide on the square bar. Tighten the
wing screw on top of the end bracket
assembly to a torque of 36 inch-lbs/
4 N•m (approximately 1/2 to 3/4 of a
turn past hand-tight) to secure the
end bracket to the square bar.
2. Attach the end brackets of the
Style AB1, AB2, or AB10 Bracket
to the T-bar rails of an ASTM C635
ceiling suspension system installed
in accordance with ASTM C636
standards. Verify that the ends of
the Style AB1, AB2, or AB10 Bracket
engage the rails.
Side Facing the
Opening of the
Center Gate
Assembly
2a. For center-of-tile installations,
align the end bracket with the center-
of-tile slot of the T-bar rail (with the
side facing the opening of the center
gate assembly), as shown.
