ADJUSTING THE LOCATION OF THE V33, V36, OR
V40 DRY SPRINKLER
4. Install the flexible hose into the sprinkler piping and the sprinkler reducing nipple onto
the flexible hose by following the applicable instructions in the "Connection to Sprinkler
Piping" section in this handbook and the "Installation of the Series AH2 or AH2-CC
Flexible Hose to the Style AB6 Threaded Inlet Adapter" section on the following page.
I-VICFLEX_58

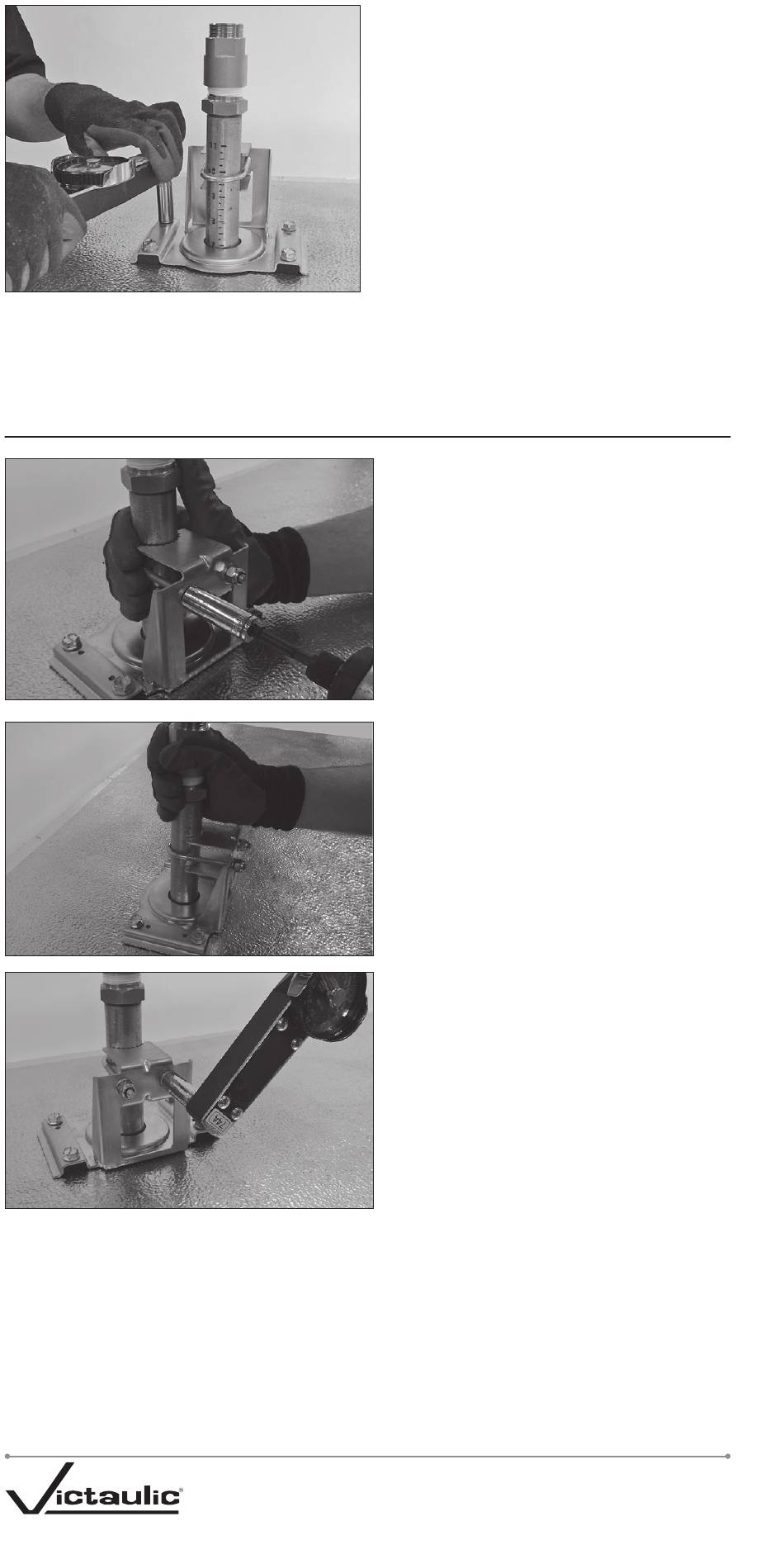

4. Tighten each hex flange screw to a
torque of 40 inch-lbs/4.5 N•m. DO NOT
exceed the specified torque.
1. Support the barrel of the V33, V36,
or V40 Dry Sprinkler while loosening
the two nuts located at the back of the
Style AB6 Bracket Assembly.
2. Slide the barrel of the V33, V36, or
V40 Dry Sprinkler up or down to the
desired location.
3. Retighten each nut located at
the back of the Style AB6 Bracket
Assembly to a torque of 45 inch-lbs/5.1
N•m. DO NOT exceed the specified
torque.
STYLE AB6 BRACKET INSTALLATION FOR
FIRE PROTECTION SERVICE REV_A
