Victaulic VicFlex I-VICFLEX Field Installation Handbook page 91

1.
Attach the sprinkler piping by completing the Gordon Installation. Refer to the
applicable "Connection to Sprinkler Piping" section.
2.
Insert the Victaulic
3.
Align the holes of the Victaulic
Secure the bracket to the ceiling grid by installing a 4 x 1/4-20 screw (supplied with
the ceiling grid) through each hole in the bracket and into the ceiling grid. Tighten
each screw completely.
4.
Install any ceiling grid face plates, sprinkler escutcheons, elastic decorative rings
or covers, etc. Use caution to prevent damage to the sprinkler during installation of
any accessories.
5.
After installation is complete, test the system for leaks in accordance with NFPA
guidelines.

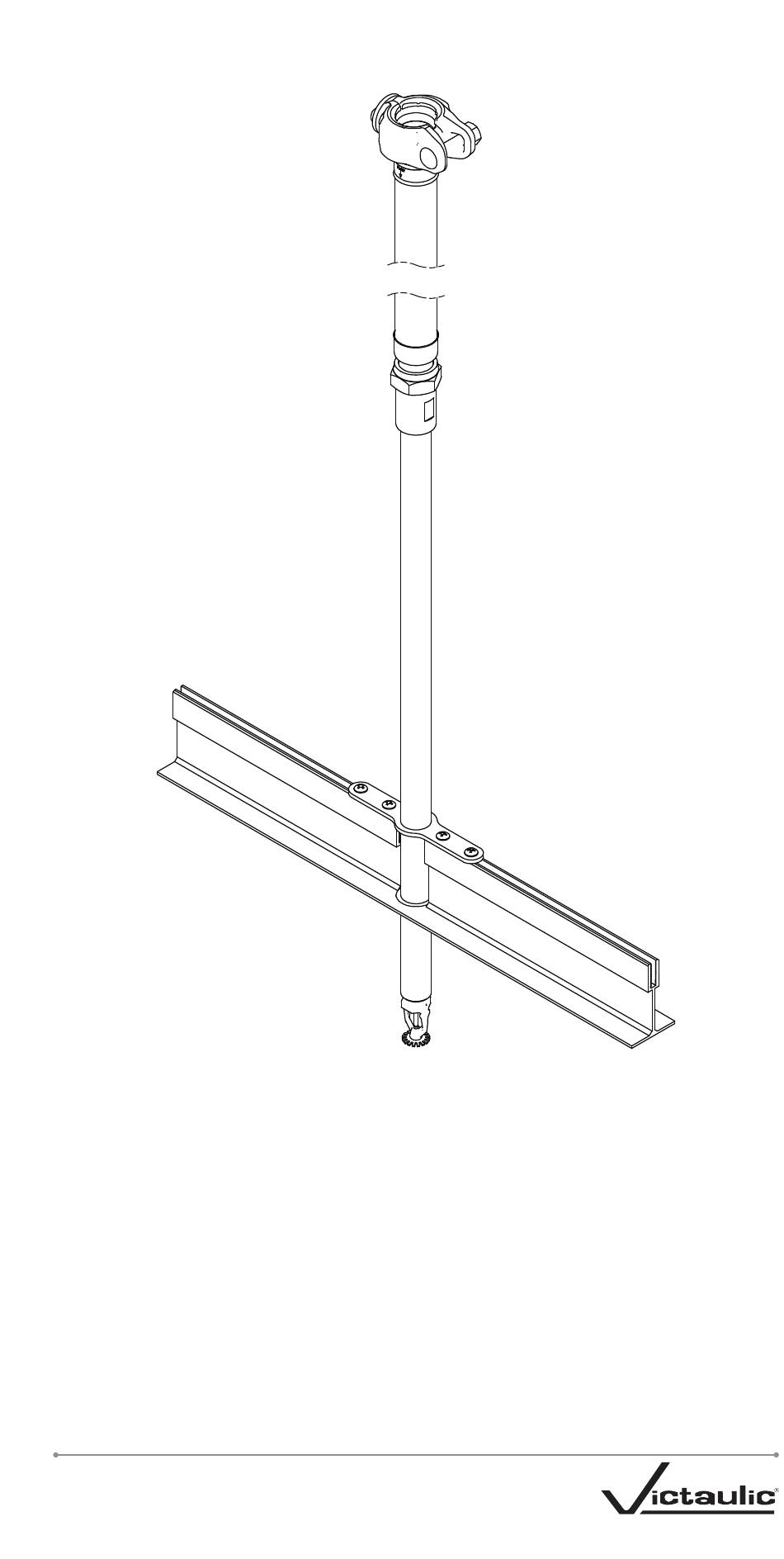

STYLE AQC-U BRACKET INSTALLATION
FOR CLEANROOM APPLICATIONS REV_A
Completed
Installation
VicFlex Style AQC-U assembly into the ceiling grid.
® ™
VicFlex
®
Style AQC-U bracket with the ceiling grid.
™
I-VICFLEX_91
