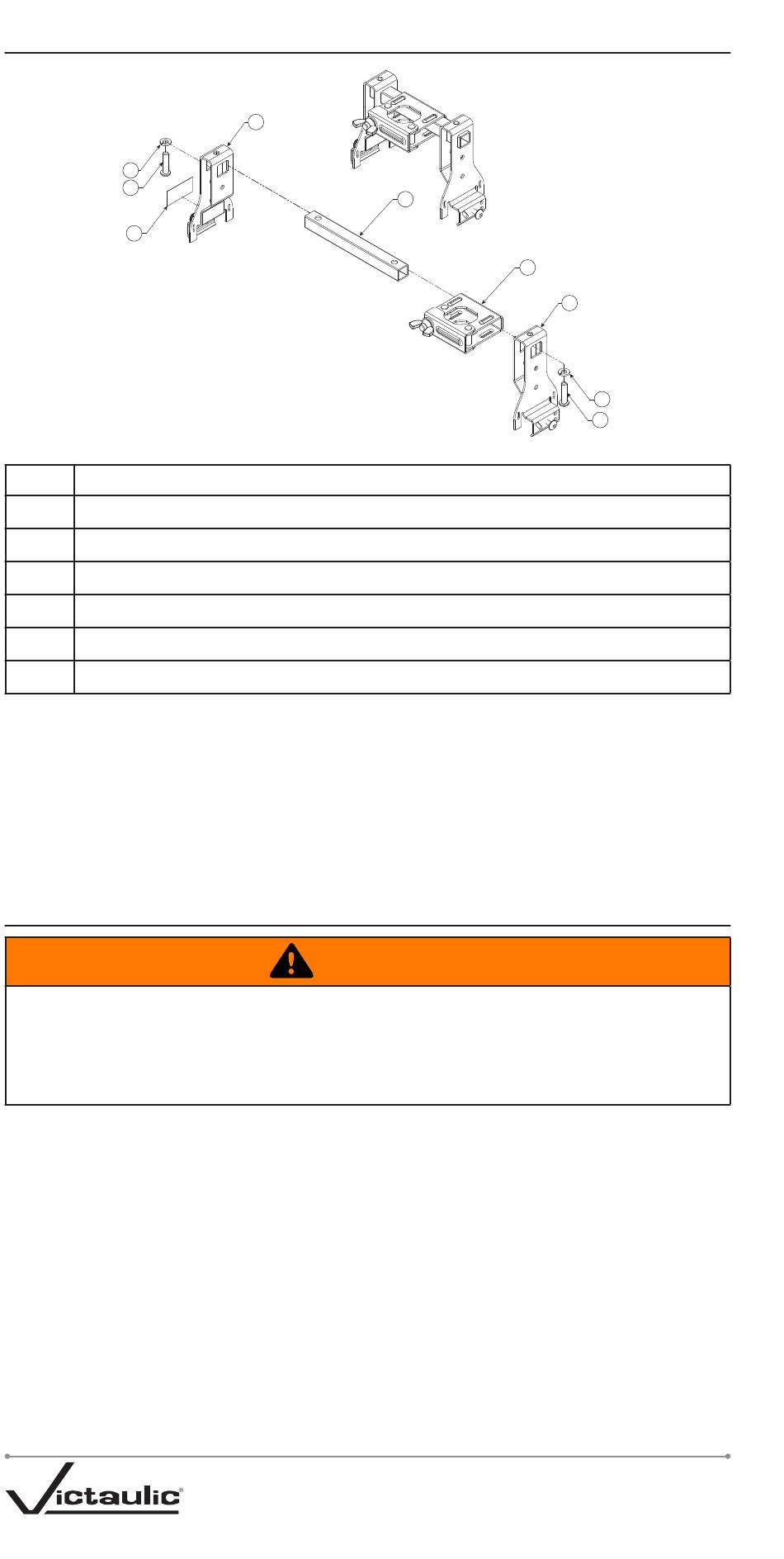

STYLE AB10 BRACKET ASSEMBLY DRAWING

5
6
4
Item
1 6-inch/152-mm Square Bar
2 Center Gate Assembly with Wing Nut
3 End Bracket with Sheet Metal Screw
4 Relocation Warning Label
5 Helical Spring-Lock Washer
6 T25 Socket Button Head Cap Screw
INSTALLATION OF STYLE AB1, AB2, AND AB10
BRACKETS FOR ASTM 635 CEILING SUSPENSION
SYSTEMS IN ACCORDANCE WITH ASTM 636

STANDARDS

• The flexible hose shall not be bent or fluctuated up-and-down or side-to-side
when pressurized.
Failure to follow these instructions could cause improper sprinkler operation,
resulting in death or serious personal injury and property damage.
1. Install the flexible hose into the sprinkler piping and the sprinkler reducing nipple onto
the flexible hose by following the applicable instructions in the "Connection to Sprinkler
Piping" and "Connecting the Sprinkler Reducing Nipple to the Flexible Hose" sections.
I-VICFLEX_24
3
Style AB10 Description
WARNING
STYLE AB1, AB2, AND AB10 BRACKETS
INSTALLATION INSTRUCTIONS REV_A
1
2
3
5
6
