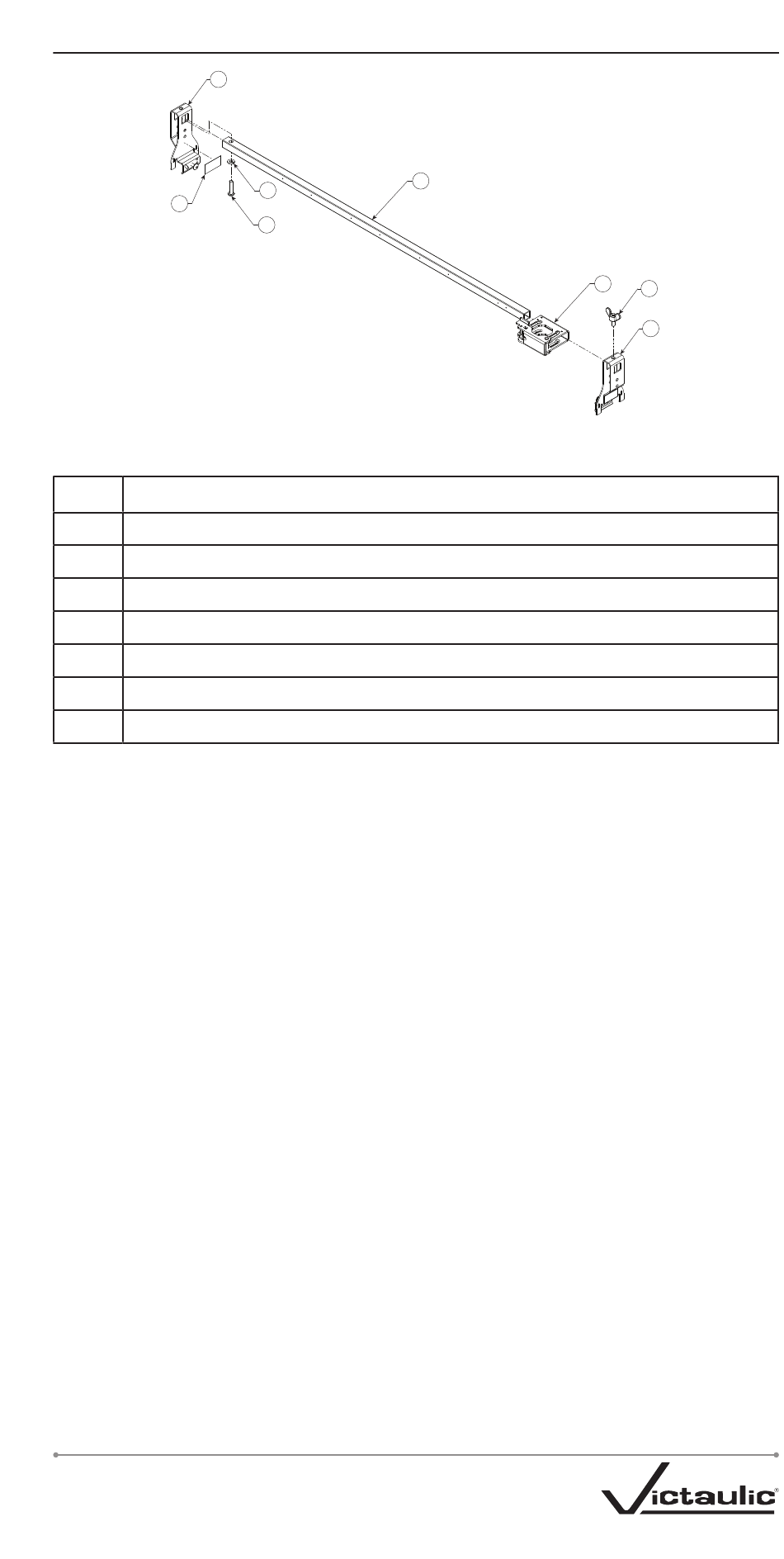

STYLE AB2 BRACKET ASSEMBLY DRAWING

5
Item
1 24-inch/610-mm or 48-inch/1219-mm Square Bar*
2 Center Gate Assembly with Adjustment Screw
3 End Bracket with Sheet Metal Screw
4 Wing Screw
5 Relocation Warning Label
6 Helical Spring-Lock Washer
7 T25 Socket Button Head Cap Screw
*For the UL Listing, when the 48-inch/1220-mm length bracket is used, the maximum
sprinkler K-factor is K8.0 and the maximum spacing is 30-inches/762-mm. Square bar
length is in reference to nominal ceiling grid spacing.
STYLE AB1, AB2, AND AB10 BRACKETS
INSTALLATION INSTRUCTIONS REV_A
3
6
7
Style AB2 Description
1
2
4
3
I-VICFLEX_23
