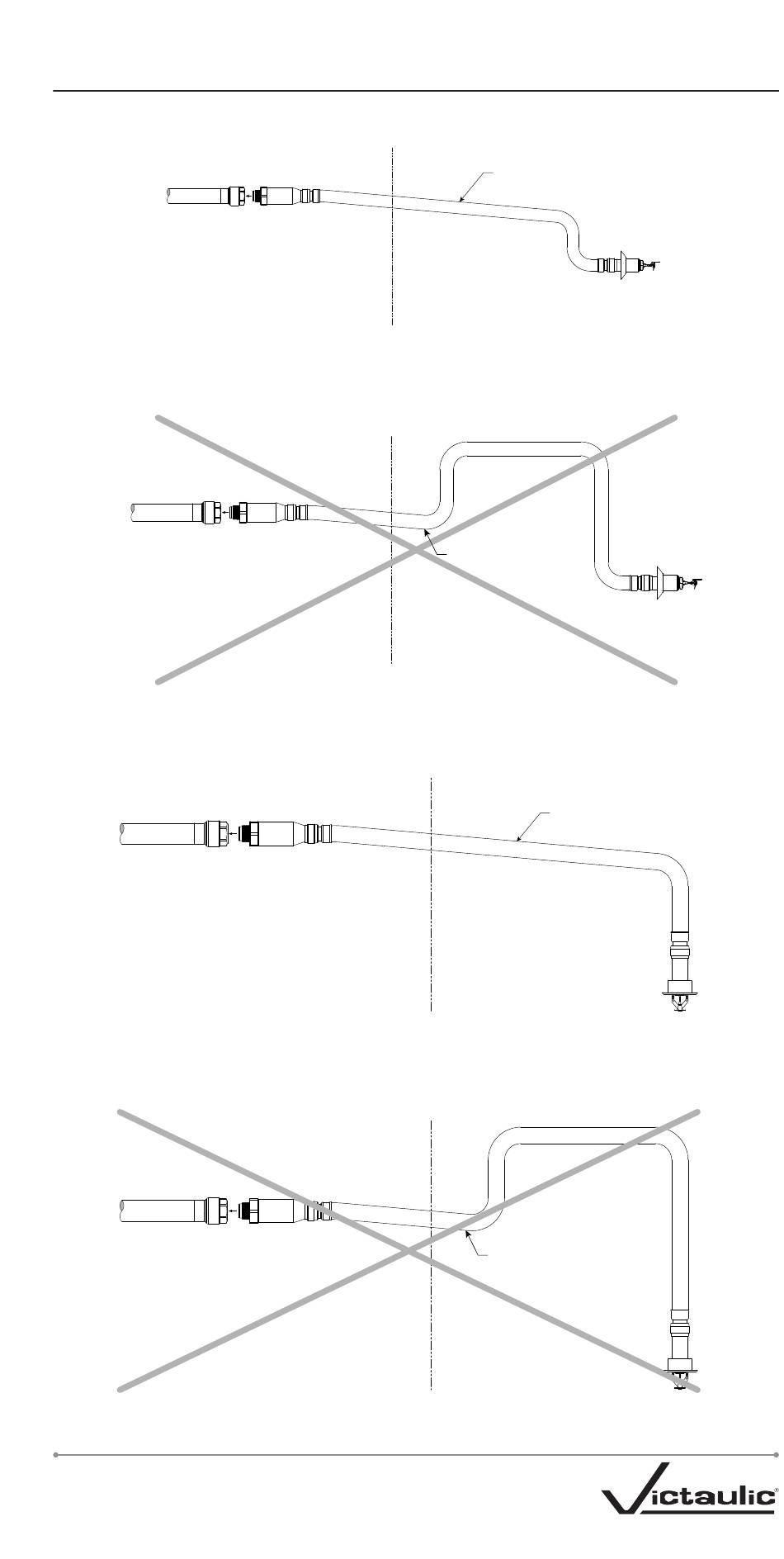

STYLE VS1 SPRINKLER ASSEMBLY PITCHING
REQUIREMENTS
Sidewall
Pendent
STYLE VS1 DRY SPRINKLER INSTALLATION FOR
FIRE PROTECTION SERVICE REV_A
Inlet
Heated Space
ACCEPTABLE PITCH
Inlet
Heated Space
UNACCEPTABLE PITCH
Inlet
Heated Space
ACCEPTABLE
Inlet
Heated Space
UNACCEPTABLE
Continuous Downward Slope
Unheated Space
Low Point
Unheated Space
Continuous Downward Slope
Unheated Space
Low Point
Unheated Space
Outlet
Outlet
Outlet
Outlet
I-VICFLEX_119
