INSTALLATION OF STYLE AB7 BRACKET
ASSEMBLY FOR ASTM C635 CEILING
SUSPENSION SYSTEMS INSTALLED IN
ACCORDANCE WITH ASTM C636 STANDARDS
• The flexible hose shall not be bent or fluctuated up-and-down or side-to-side
when pressurized.
Failure to follow this instruction could cause improper sprinkler operation,
resulting in death or serious personal injury and property damage.
1. Install the flexible hose into the sprinkler piping and the sprinkler reducing nipple onto
the flexible hose by following the applicable instructions in the "Connection to Sprinkler
Piping" and "Connecting the Sprinkler Reducing Nipple to the Flexible Hose" sections.
2. FOR ADJUSTABLE END BRACKET ASSEMBLIES (REGIONAL AVAILABILITY ONLY):
For adjustment purposes, the wing screw on top of one end bracket assembly can be
loosened to allow the end bracket to slide on the square bar. Tighten the wing screw on
top of the each end bracket assembly to a torque of 36 inch-lbs/4 N•m (approximately 1/2
to 3/4 of a turn past hand-tight) to secure the end bracket to the square bar.
6. Complete the installation by following the applicable instructions in the Sprinkler
Reducing Nipple Installation" and "Sprinkler Installation" sections.
STYLE AB7 BRACKET
INSTALLATION INSTRUCTIONS REV_A
WARNING

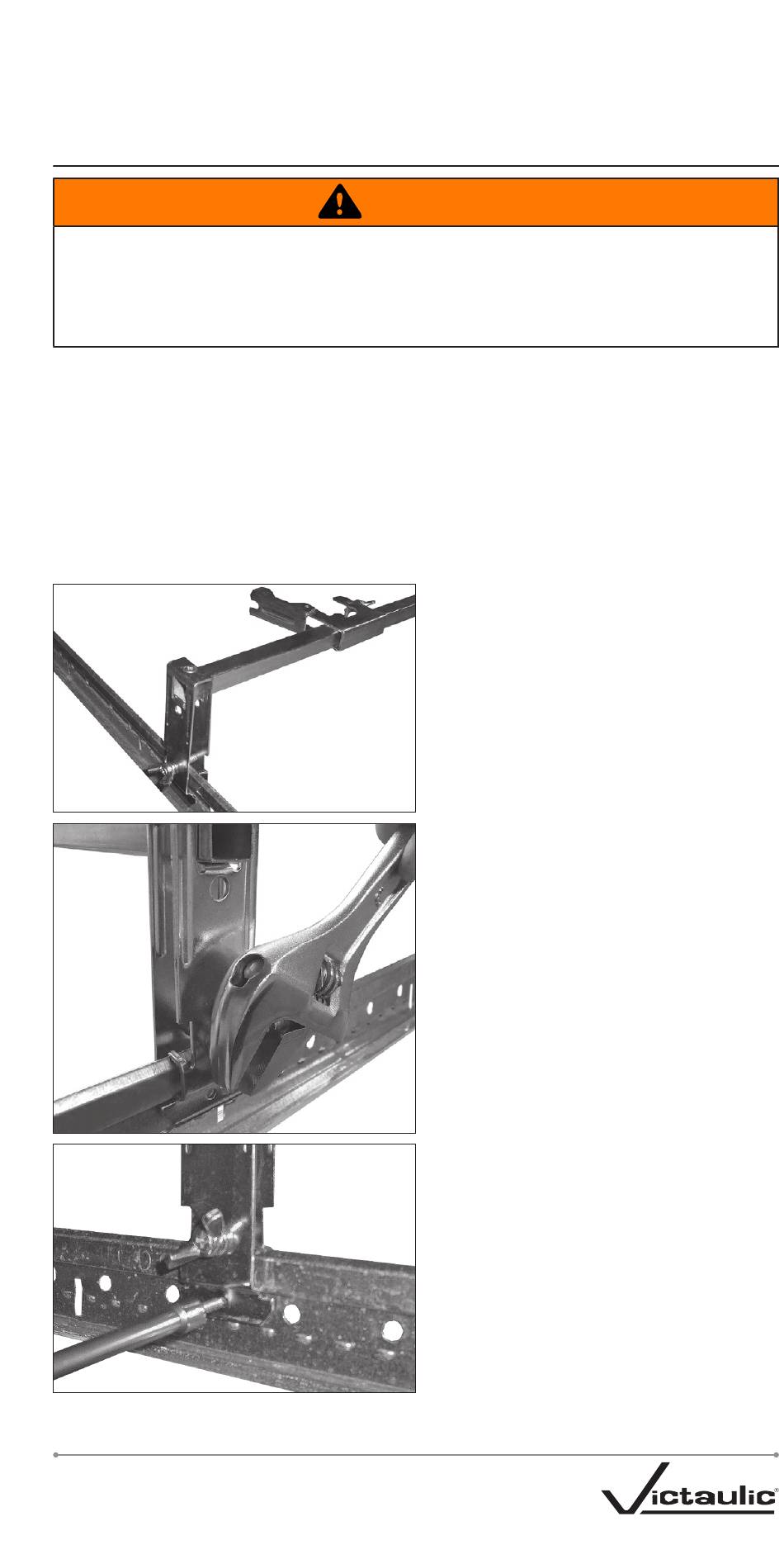

3. Attach the end brackets of the Style
AB7 Bracket to the T-bar rails of an
ASTM C635 ceiling suspension system
installed in accordance with ASTM C636
standards. Verify that the ends of the
Style AB7 Bracket engage the rails.
4. Tighten the wing screw on each
side of the end bracket assemblies
to a torque of 36 inch-lbs/4 N•m
(approximately 1/2 to 3/4 of a turn past
hand-tight) to secure the end brackets
to the rails.
5. For installations to comply with
cULus Listing requirements, or for
added tamper resistance: Use a #2
square drive bit to tighten a #8 x 1/2-inch
self-drilling screw through each Style
AB7 end bracket assembly and into the
ceiling grid. NOTE: A tamper-evident
label is available and can be applied to
one or both of the end brackets.
I-VICFLEX_63
