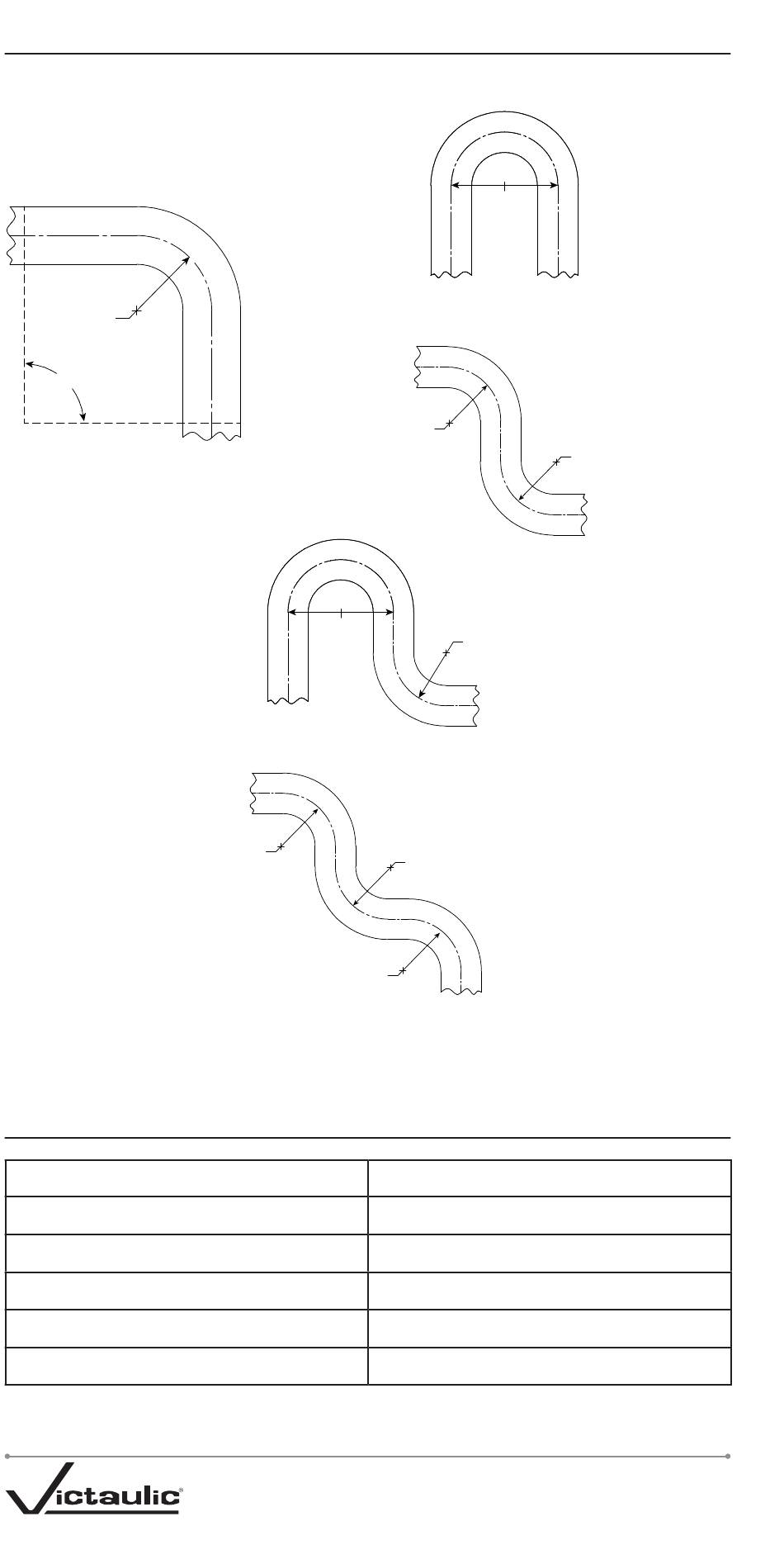

FLEXIBLE HOSE BEND CHARACTERISTICS

NOTE: Care shall be taken to avoid torquing the flexible hose.
Minimum
Bend Radius
90°
MAXIMUM WORKING PRESSURE RATING OF
FLEXIBLE HOSES
Maximum Working Pressure Rating
200 psi/14 Bar/1379 kPa
175 psi/12 Bar/1207 kPa
16 Bar/1600 kPa/232 psi
1.4 MPa/1400 kPa/203 psi
300 psi/21 Bar/2068 kPa
NOTE: Maximum working pressure rating for the FM Approval of the Series AQD is 175 psi/12 Bar/
1207 kPa.
I-VICFLEX_158
Minimum
Bend
Radius
Minimum
Bend Radius
Minimum
Bend Radius
TECHNICAL DATA FOR FLEXIBLE HOSES REV_A
Minimum
Minimum
Bend Radius
Minimum
2X
Bend Radius
OR
Minimum
Bend Radius
FM
UL
VdS and LPCB
CCC
AH2-300, AH2-CC-300
2X
Bend
Radius
OR
Minimum
Bend Radius
Approvals
