INSTALLING THE STYLE AQD ONTO THE DUCT

NOTE: Before performing the following steps, determine the location on the duct where
the Style AQD will be installed. The location
inspection purposes. Wear a particle mask, safety glasses, hardhat, and foot protection
during this phase of installation.
STYLE AQD BRACKET INSTALLATION FOR
ROUND OR SQUARE METAL OR FRP DUCTS
REV_A
WARNING
• A particle mask and protective gloves shall be worn during
preparation of the duct.
• Wear safety glasses, hardhat, and foot protection.
Failure to follow these instructions could result in serious
respiratory system illness or other personal injury.
shall permit easy access to the Style AQD for

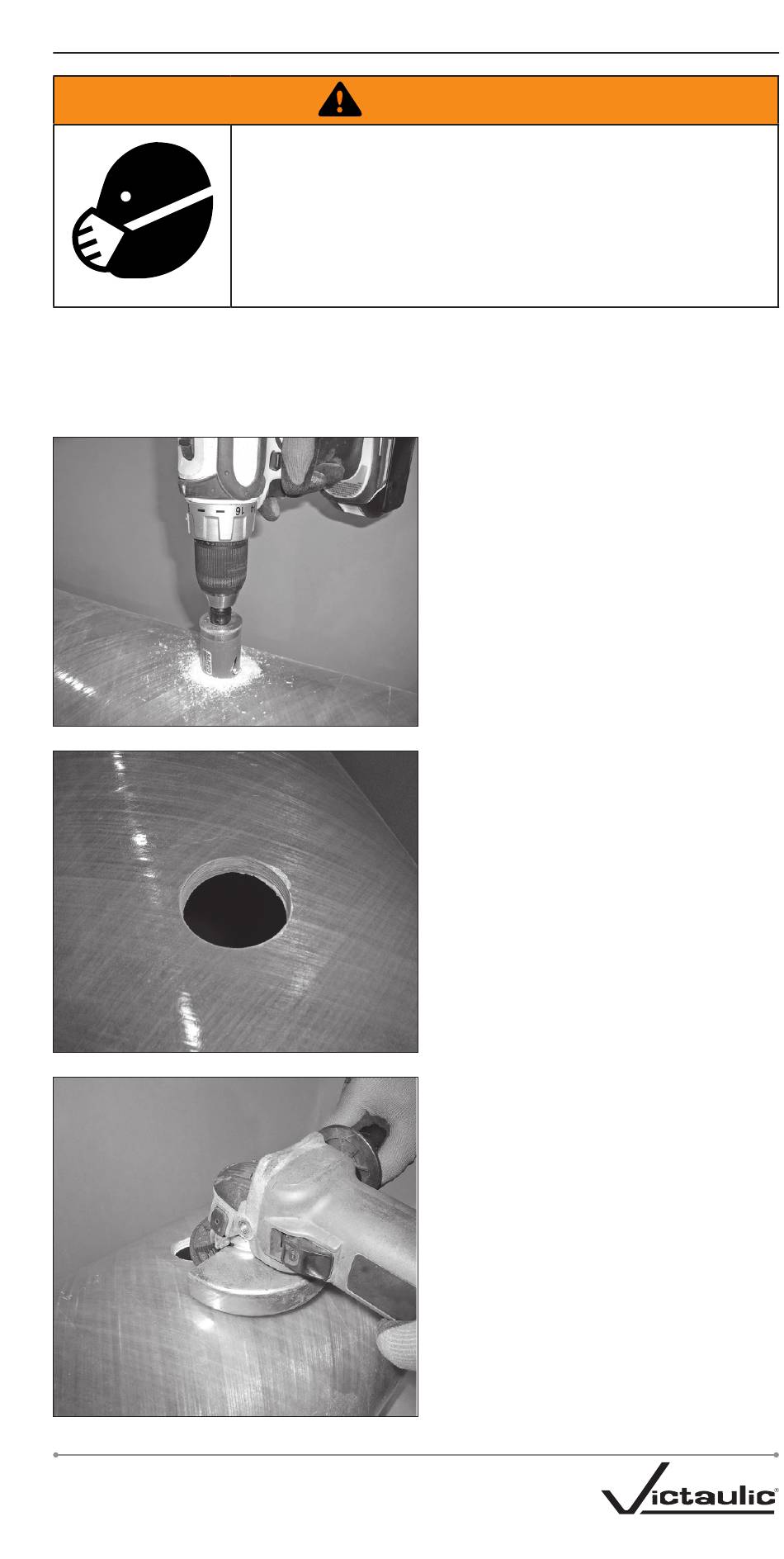

1. Drill a 1 1/2-inch/38-mm hole into
the surface of the duct at the desired
location.
1a. Remove all cutting particles from the
surface of the duct.
NOTE: To aid in preparing the area where
the mounting block will be installed, place
the mounting block onto the duct with the
hole in the duct centered in the opening
of the mounting block. Draw a line around
the outside of the mounting block to
identify the surface preparation area.
